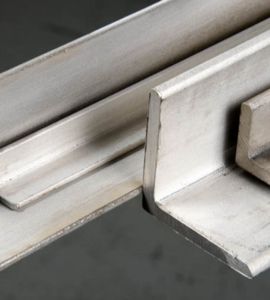

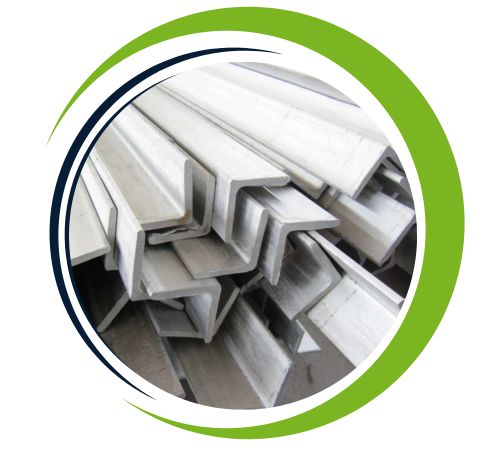

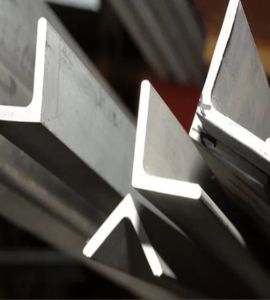

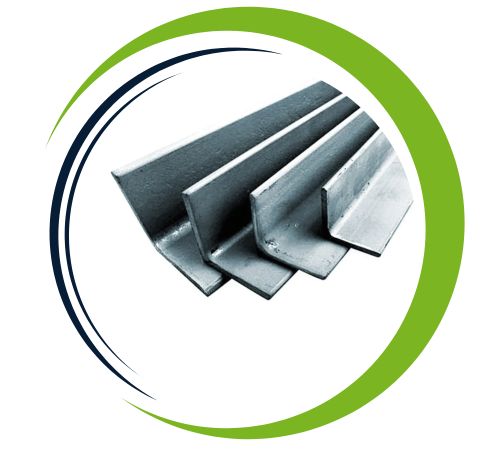

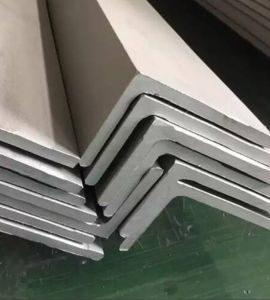

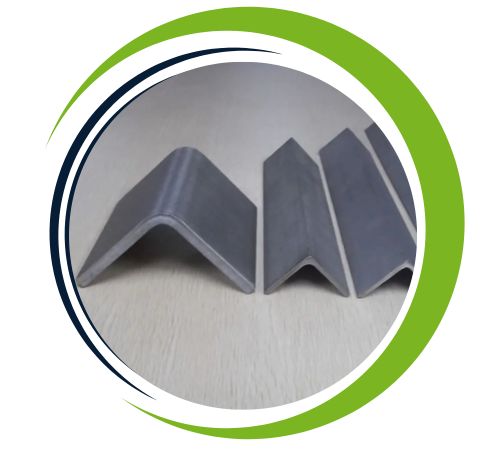

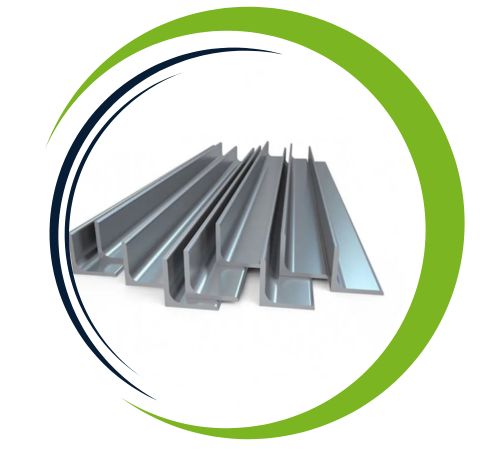

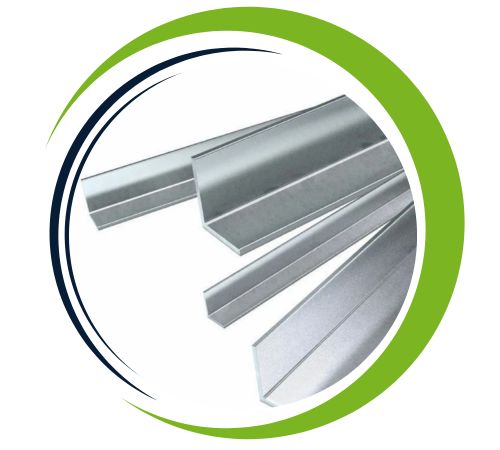

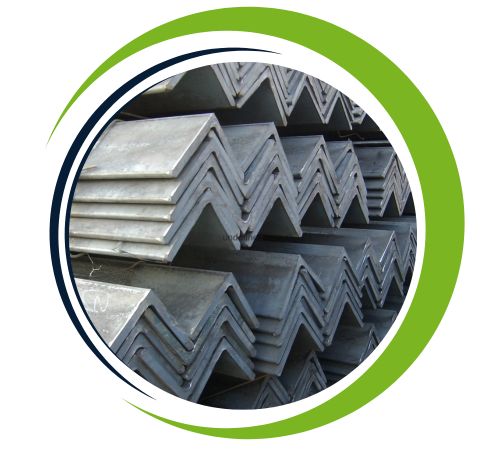

Nial Sheets and Plates is your go-to manufacturer and supplier of Stainless Steel 347 Angles right here in Houston, USA. They specialize in crafting high-quality structural components that are built to last, offering strength, durability, and resistance to corrosion, especially in high-temperature settings. Stainless Steel 347 is a stabilized austenitic stainless steel alloy, enhanced with columbium (niobium) to boost its resistance to intergranular corrosion after welding. Nial produces these 347 Angles in line with international standards, catering to various industries like aerospace, power generation, chemical processing, and food manufacturing. These angles are perfect for structural applications that require both mechanical strength and thermal stability.
When it comes to composition, Stainless Steel 347 Angles mainly consist of chromium (17–20%), nickel (9–13%), and columbium/tantalum for stabilization, along with small amounts of carbon, manganese, and silicon. This alloy boasts impressive mechanical properties, featuring a tensile strength ranging from 515 to 750 MPa and a yield strength of about 205 MPa, along with good elongation and toughness. It effectively resists intergranular corrosion, particularly after welding, and maintains its strength even in elevated temperatures, making it an excellent choice for stress-bearing structures that face heat and corrosive environments.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 347 |
|---|---|
| C | 0.08 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 17 – 20 |
| Cb | 10xC – 1.10 |
| Ni | 9.0 – 13.0 |
| Fe | 62.74 min |
| Grade | SS 347 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 347 |
| WERKSTOFF NR. | 1.4550 |
| UNS | S34700 |
| JIS | SUS 347 |
| BS | – |
| GOST | 08Ch18N12B |
| AFNOR | – |
| EN | X6CrNiNb18-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 347 Angles find their place in a variety of structural and support applications that demand high resistance to oxidation, heat, and corrosion. In the aerospace sector, they’re utilized in engine components and frames. In the chemical and petrochemical industries, they shine in pressure piping, heat exchangers, and reactor systems. These angles are also essential in furnaces, boilers, food processing equipment, and exhaust systems where thermal and corrosion resistance are crucial. Their weldability, durability, and resistance to carbide precipitation make them a reliable choice for high-performance structural frameworks.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
stainless steel 347 angle is widely used at high temperatures. It is ideal for pharmaceuticals, energy production and petrochemical applications due to its stability in chromium carbide precipitation environments. It also works well in the food processing, aerospace and pharmaceutical industries. This alloy’s resistance to oxidation and corrosion makes it suitable for heat exchangers, furnace parts, and welded components exposed to corrosive areas Stainless steel 347 angle for durability and strength in critical applications.
