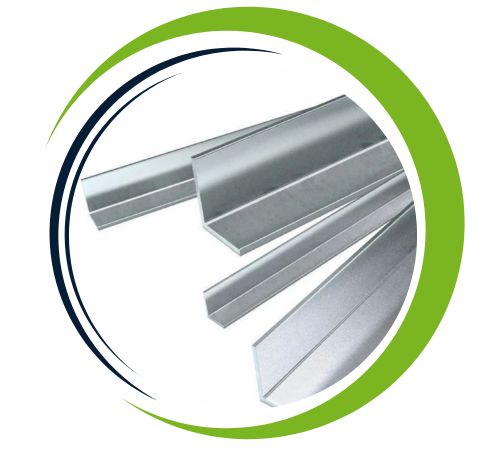

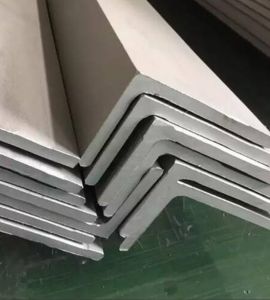

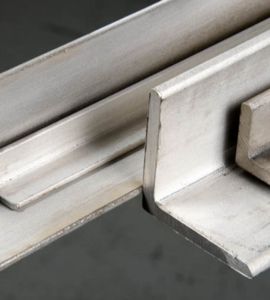

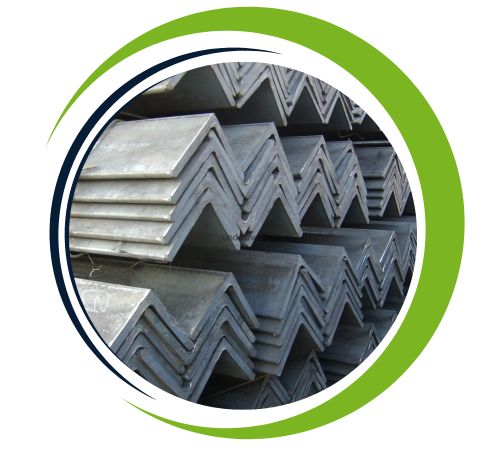

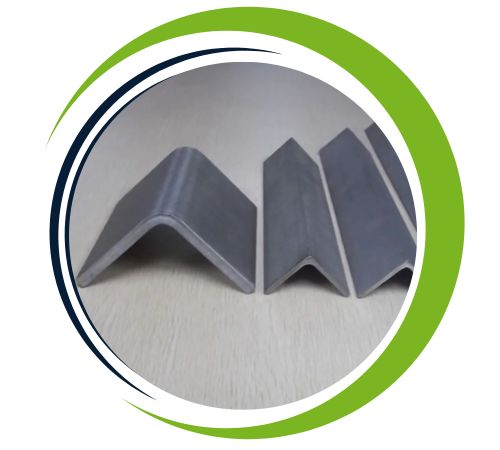

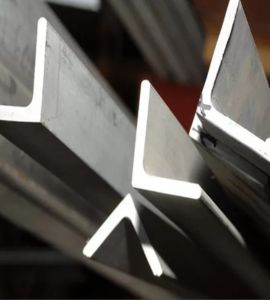

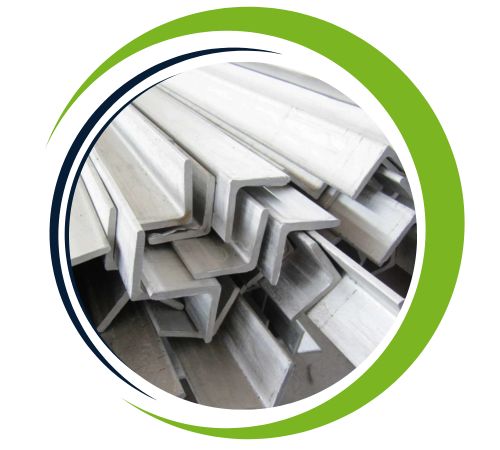

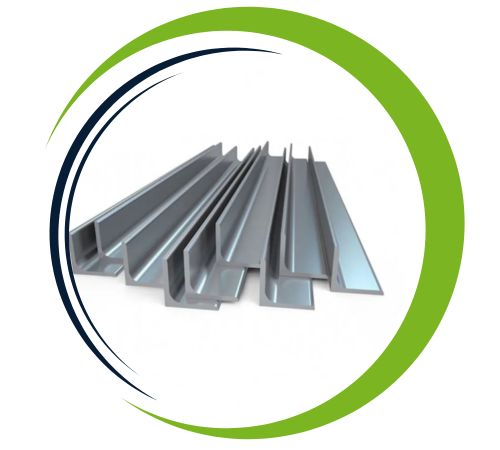

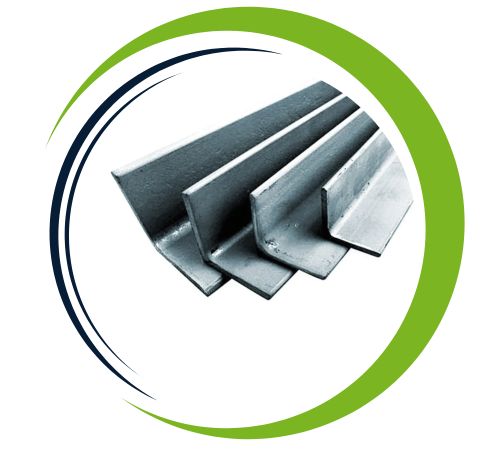

Nial Sheets and Plates, based in Houston, USA, stands out as a top-notch manufacturer and supplier of Stainless Steel 304L Angle. We pride ourselves on delivering exceptional quality and reliability for a wide range of industrial applications. Our precision-engineered products are designed to be corrosion-resistant and feature low-carbon stainless steel angles, making them perfect for projects that involve fabrication and welding. Whether it’s for structural, architectural, or mechanical purposes, our Stainless Steel 304L Angles are built to last and maintain cleanliness. With a commitment to outstanding customer service and timely delivery, Nial Sheets and Plates caters to clients in various sectors, including construction, petrochemical, marine, and food processing industries.
Stainless Steel 304L Angle is an austenitic stainless steel alloy that contains 18–20% chromium, 8–12% nickel, and a maximum carbon content of 0.03%. This lower carbon level enhances weldability and reduces the chances of carbide precipitation during welding. It boasts a tensile strength of about 485 MPa and a yield strength of roughly 170 MPa, with an elongation of around 40%. The 304L grade is known for its excellent corrosion resistance, particularly in mildly acidic and chloride-rich environments, while also providing good strength, ductility, and formability for various fabrication processes.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 304L Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 304L angle offers several advantages, making it a popular choice for structural applications. It provides resistance to corrosion, especially in harsh environments such as the chemical industry, food and marine industries. The low carbon content increases its weldability, reducing the risk of sensing and carbide precipitation. The material provides high strength, durability and oxidation resistance, ensuring long-lasting performance. The stainless steel 304L is versatile, easy to manufacture, and maintains its appearance with minimal maintenance. The resistance to stress corrosion cracking further extends its life under extreme conditions.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 304L Angles find their place in industries that demand corrosion resistance and superb weldability. In construction, they are commonly used for frameworks, supports, and architectural features. This alloy is also a go-to choice for chemical and petrochemical processing equipment, heat exchangers, and piping systems due to its resistance to oxidation and corrosive materials. In the food and beverage sector, 304L Angles are essential for hygienic equipment and storage containers. Furthermore, they are well-suited for marine environments, pharmaceutical processing, and general fabrication where durable, low-maintenance materials are a must.
