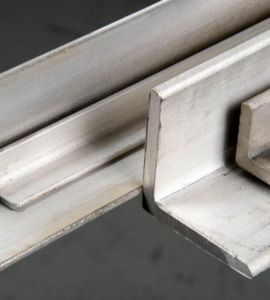

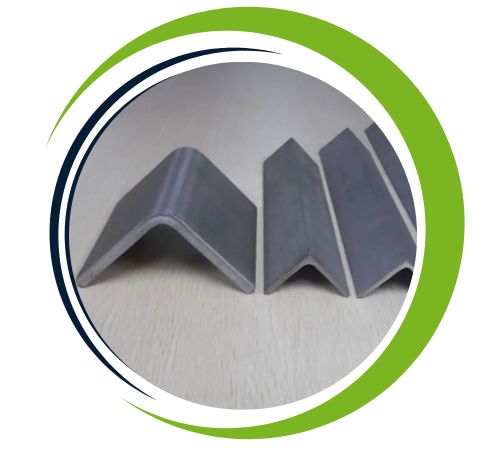

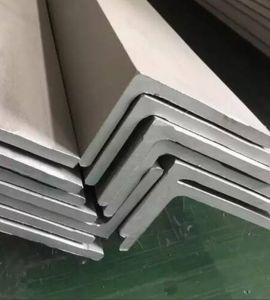

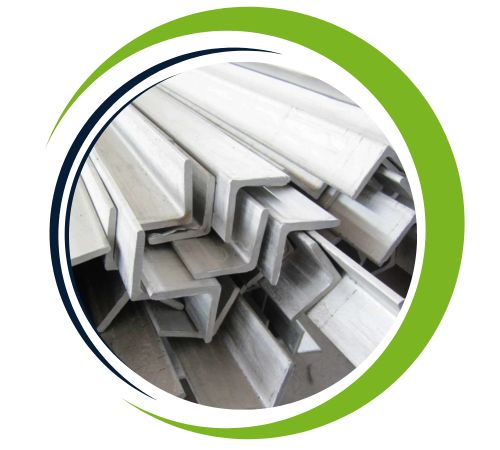

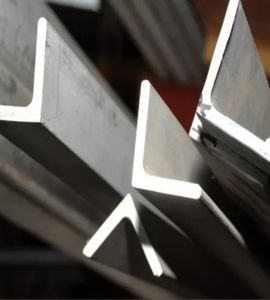

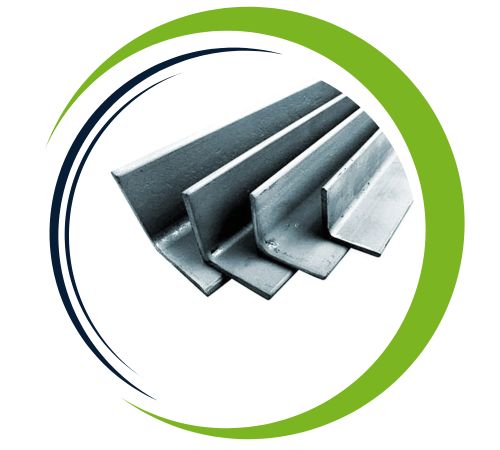

Nial Sheets and Plates is a reputable manufacturer and supplier located in Houston, USA, specializing in top-notch Stainless Steel 321H Angles. We pride ourselves on providing stainless steel products that are both corrosion-resistant and heat-resistant, catering to a diverse array of industrial sectors. Our Stainless Steel 321H Angles are celebrated for their exceptional durability, impressive high-temperature performance, and robust structural strength. With cutting-edge production techniques and strict quality standards, we guarantee that our products comply with both domestic and international specifications. At Nial, we are dedicated to ensuring customer satisfaction by offering prompt delivery, customizable dimensions, and competitive pricing throughout the USA and beyond.
The composition of Stainless Steel 321H Angle includes Chromium (17–19%), Nickel (9–12%), and Titanium (at least five times the Carbon content), with a Carbon content of up to 0.10%. This stabilized austenitic stainless steel is known for its outstanding resistance to intergranular corrosion. Its mechanical properties feature a tensile strength of about 515 MPa, yield strength of 205 MPa, and an elongation of 40%. Thanks to its good creep resistance and high-temperature strength, SS 321H Angles maintain their structural integrity even in high-temperature settings, making them perfect for thermal processing and pressure systems.

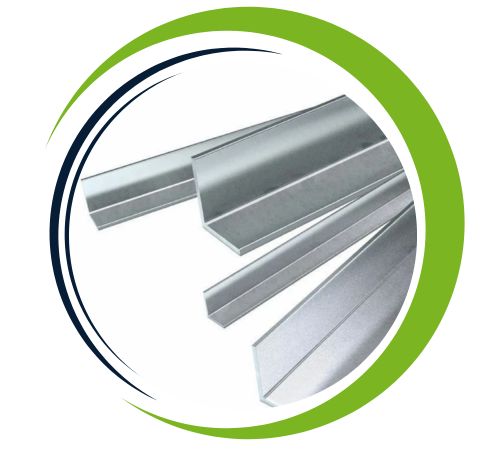

Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| % | Cr | Ni | C | Si | Mn | P | S | N | Ti | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| 321 | min:17.0 max:19.0 | min: 9.0 max:12.0 | max:0.08 | max:0.75 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 | Balance |
| 321H | min:17.0 max:19.0 | min: 9.0 max:12.0 | min:0.04 max:0.10 | min:18.0 max:20.0 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 | Balance |
| Grade | Tensile Strength ksi (min.) | Yield Strength 0.2% Offset ksi (min.) | Elongation – % in 50 mm (min.) | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 321/321H | 75 | 30 | 40 | 217 |
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
| 0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 321H angle offers excellent advantages due to its high carbon content, especially increased resistance to creep and stress rupture at high temperatures Its titanium stabilizer prevents carbide precipitation, improving corrosion resistance at high temperatures . . . . This surface provides outstanding strength, durability and oxidation resistance up to 870°C, making it ideal for heat exchangers, chemical processing and furnace components And power generation more, its ease of manufacture and ability to withstand thermal cycling without losing strength make it the preferred choice for demanding industrial applications. It also retains technology.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Nial’s Stainless Steel 321H Angles are extensively utilized in high-temperature industrial applications due to their remarkable strength and corrosion resistance. These angles are ideal for heat exchangers, boiler components, and exhaust systems in power plants and chemical industries. Their stability under thermal stress makes them perfect for furnace parts and pressure vessels. Additionally, SS 321H Angles find applications in construction, refineries, and the aerospace sector, where resistance to oxidation and carburization is essential. They are also favored in the food processing and pharmaceutical industries for their hygienic surface and strong mechanical properties in demanding operational environments.
