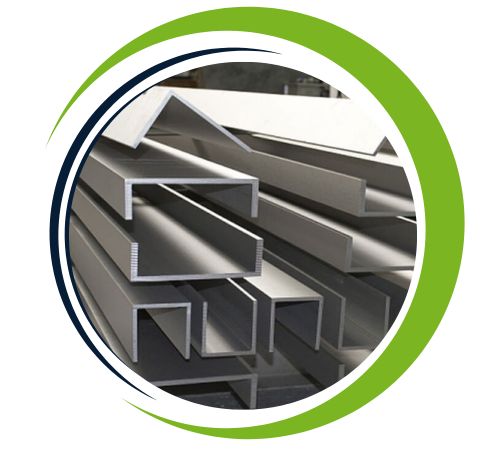

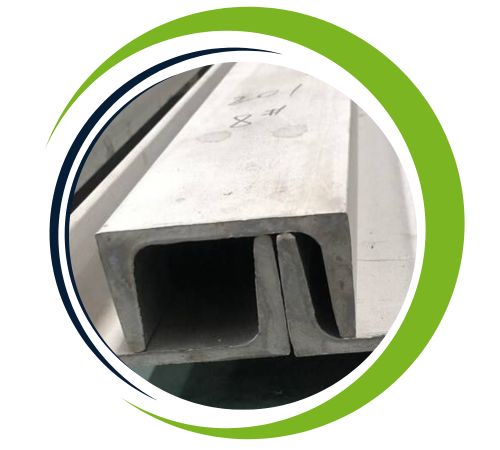

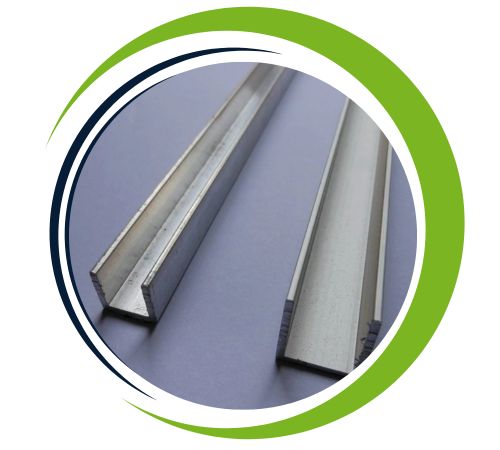

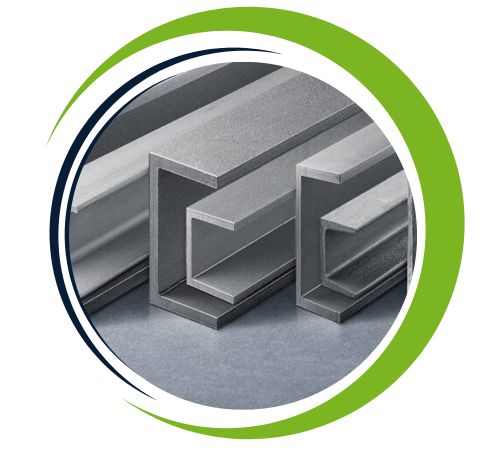

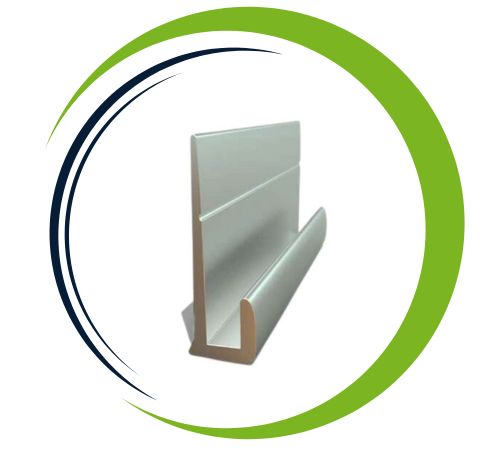

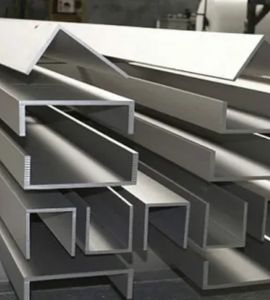

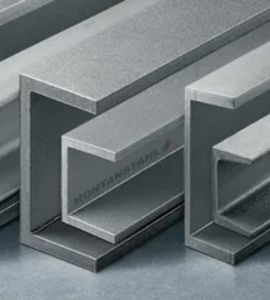

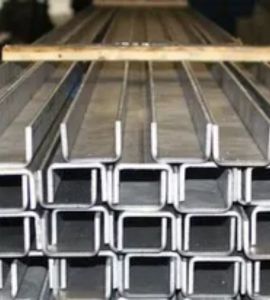

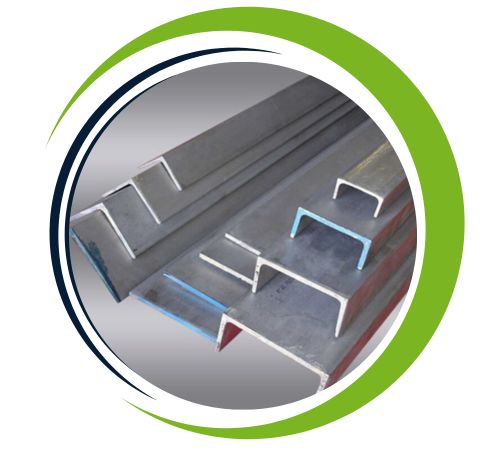

Welcome to our world! Based in Houston, USA, we take pride in being a top-notch manufacturer and supplier of stainless steel sheets, plates, and structural components. Our standout product? The high-quality Stainless Steel 316Ti Channels. These channels are crafted for outstanding strength and corrosion resistance, especially when the heat is on, making them perfect for tough industrial settings. With titanium added for better stabilization, our 316Ti channels excel at resisting intergranular corrosion after welding. We’re all about quality, precision, and keeping our customers happy, delivering dependable stainless steel solutions to industries like chemical processing, marine engineering, and construction, not just across the United States but beyond.
Now, let’s talk about the nitty-gritty: Composition and Mechanical Properties. Stainless Steel 316Ti is a titanium-stabilized version of 316, featuring 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a dash of titanium (usually around 0.5%). This unique blend boosts resistance to intergranular corrosion and enhances strength at high temperatures. You can expect a tensile strength of about 515 MPa and a yield strength of around 205 MPa. Plus, this alloy keeps its excellent ductility, weldability, and toughness, even in harsh, high-heat, or corrosive environments. Thanks to titanium stabilization, we prevent carbide precipitation during welding, ensuring long-lasting corrosion resistance in those heat-affected zones.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| ELEMENT | 316 | 316L | 316TI |
|---|---|---|---|
| NI | 11.0 – 14.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| C | 0.08 max | 0.035 max | 0.08 max |
| MN | 2.0 max | 2.0 max | 2.0 max |
| P | 0.045 max | 0.045 max | 0.045 max |
| S | 0.30 max | 0.30 max | 0.30 max |
| SI | 1.0 max | 1.0 max | 0.75 max |
| CR | 16.0 – 18.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| MO | 2.0 – 3.0 | 2.0 – 3.0 | 2.0 – 3.0 |
| TI | 5x(C+N) – 0.70 | ||
| N | 0.10 max |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 316Ti channels offer several key advantages, particularly in high-temperature and corrosive environments. The addition of titanium enhances the material’s resistance to carbide precipitation, improving its weldability and stability at elevated temperatures. With excellent resistance to oxidation, pitting, and stress corrosion, these channels are ideal for use in harsh industrial environments, including chemical processing, marine, and food industries. They provide exceptional strength and durability, even in aggressive conditions. Stainless Steel 316Ti channels are highly versatile, offering long-lasting, reliable performance with minimal maintenance, making them a cost-effective choice for demanding applications.
Yes, we offer custom sizes for Stainless Steel 316Ti Channel to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at :sales@nialsheetsandplates.us.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
When it comes to Uses and Applications, our Stainless Steel 316Ti Channels shine in high-temperature and corrosive settings like heat exchangers, pressure vessels, flue gas systems, and chemical processing equipment. They’re a perfect fit for marine environments, food processing facilities, pharmaceutical plants, and the oil and gas industry, where resistance to acidic and chloride-rich conditions is a must. Their titanium-stabilized structure guarantees durability post-welding, making them ideal for structural supports, frameworks, and piping systems that face thermal cycling. With a winning combination of mechanical strength, corrosion resistance, and stability, our channels are ready to tackle any challenge!
