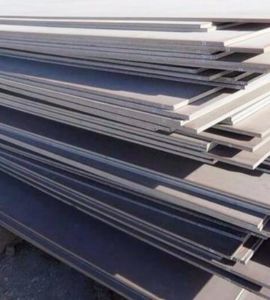

Nial Sheets and Plates is a reliable manufacturer and supplier of Hastelloy Sheets and Plates, proudly based in Houston, USA. We specialize in high-performance nickel-based alloy products that provide outstanding resistance to corrosion, pitting, and stress corrosion cracking, even in the most aggressive environments. Our Hastelloy Sheets and Plates come in various grades, including C22, C276, C2000, and X, all crafted to meet the stringent standards of industries such as chemical processing, marine, aerospace, and pollution control. With a strong focus on precision, durability, and timely delivery, Nial Sheets and Plates caters to customers across the USA and around the globe with tailored material solutions.
Hastelloy Sheets and Plates are primarily made of nickel, with different proportions of molybdenum, chromium, iron, cobalt, and tungsten depending on the grade. For example, Hastelloy C276 consists of about 57% nickel, 16% molybdenum, 15.5% chromium, and 5% iron. These materials boast impressive mechanical properties, featuring tensile strengths between 690 and 825 MPa, and yield strengths around 280 to 350 MPa. They retain their strength and corrosion resistance across a broad temperature range and excel in acidic and high-temperature settings.
| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grades | C276, C22, B2, B3, X |
| Hastelloy Plate Length | 0-12mm or as required |
| Specification of Hastelloy Plate | ASTM B575 UNS N10276, ASME SB575, MSRR, BS, AMS 4544 sheet |
| ASTM B575 Alloy C276 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |
| Hastelloy Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C276 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy sheets and plates offer numerous advantages, making them ideal for demanding applications in industries such as chemical processing, aerospace, and power generation. Their excellent resistance to corrosion and oxidation in harsh environments, including acids, chlorine, and high temperatures, ensures long-lasting durability. These alloys maintain structural integrity even in extreme conditions, preventing degradation and extending service life. Additionally Hastelloy sheets and plates exhibit high strength, good weldability and resistance to pitting and stress corrosion cracking. Their superior performance in extreme environments makes them an ideal choice for components that require reliability, efficiency and minimal maintenance.
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
Hastelloy Sheets and Plates are commonly utilized in applications that require exceptional corrosion resistance and mechanical strength. Typical uses include chemical reactors, heat exchangers, scrubbers, marine components, desulfurization systems, and pharmaceutical processing equipment. Their capability to endure harsh chemicals like hydrochloric, sulfuric, and nitric acids makes them perfect for critical industrial operations. Nial Sheets and Plates provides Hastelloy Sheets and Plates in a variety of thicknesses, widths, and lengths, all cut to order and finished to meet the highest technical and environmental standards.
