Nial Sheets and Plates is a reputable manufacturer and supplier of Hastelloy C276 Sheets and Plates, proudly based in Houston, USA. We focus on delivering corrosion-resistant alloy solutions tailored for highly aggressive and chemically demanding environments. Our Hastelloy C276 Sheets and Plates are crafted with precision and comply with international standards, ensuring outstanding resistance to both oxidizing and reducing agents. Renowned for their durability and reliability, these sheets and plates find extensive use in industries like chemical processing, pharmaceuticals, marine applications, and pollution control. Nial Sheets and Plates is committed to providing top-notch Hastelloy C276 materials throughout the USA and to clients worldwide.
Hastelloy C276 is a nickel-molybdenum-chromium alloy that also contains iron and tungsten. Its typical makeup features around 57% nickel, 16% molybdenum, 15.5% chromium, 5% iron, along with trace amounts of cobalt and tungsten. This alloy is celebrated for its exceptional corrosion resistance across a range of harsh environments, including strong oxidizers, chlorides, and acidic solutions like hydrochloric and sulfuric acid. In terms of mechanical properties, it boasts a tensile strength of 690–785 MPa, a yield strength of about 280–355 MPa, and impressive elongation, which provides both strength and flexibility under pressure and at elevated temperatures.

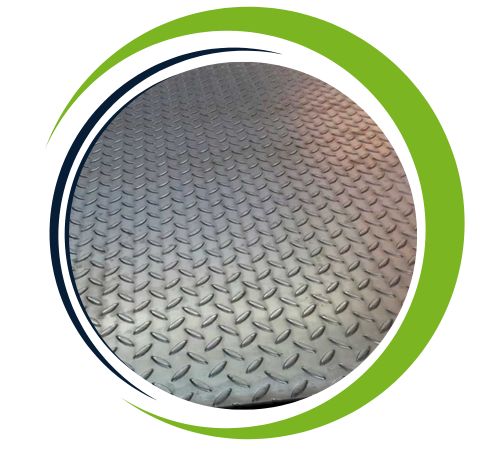

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | Hastelloy C276 – ALLOY C-276 (Ni/ 15Cr/ 16Mo/ 4W)-UNS N10276 , ASTM B575 UNS N10276 |
| UNS N10276 Plate Length | 0-12mm or as required |
| Specification of Alloy C276 Plate | ASTM B575 UNS N10276, ASME SB575, MSRR, BS, AMS 4544 sheet |
| ASTM B575 Alloy C276 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |

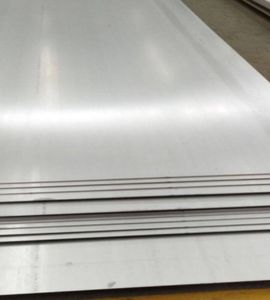

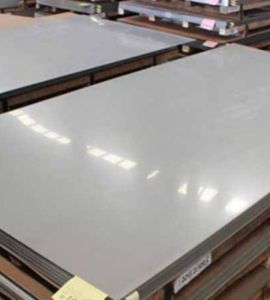

| C276 Hastelloy Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C276 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Grade | C | Mn | And | S | Co | In | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000, MPa – 790 | Psi – 52,000, MPa – 355 | 40 % |
| Material | Ultimate Tensile (min) | Yield Strength (Min) | Elongation % | Hardness Rb | ||
|---|---|---|---|---|---|---|
| Ksi | Mpa | Ksi | Mpa | |||
| C276 Plate | 107.4 | 741 | 50.3 | 347 | 67 | 89 |
| C276 Sheet | 115.5 | 796 | 54.6 | 376 | 60 | 86 |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy C276 sheets and plates offer exceptional advantages, making them ideal for challenging industrial environments. They provide outstanding resistance to a wide range of corrosive media, including strong oxidizers, reducing agents, and chlorides, minimizing the risk of pitting, crevice corrosion, and stress corrosion cracking. Their high-temperature strength and excellent weldability ensure reliability in critical applications, such as chemical processing and marine systems. Additionally, Hastelloy C276 maintains superior performance in both acidic and alkaline environments, offering durability, extended service life, and reduced maintenance, even under extreme conditions, enhancing operational efficiency and safety.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy C276 Sheets and Plates are commonly utilized in equipment and structures that face harsh chemical and high-temperature conditions. Typical applications include reactors, heat exchangers, evaporators, scrubbers, pressure vessels, and ducting in chemical plants, flue gas desulfurization systems, marine settings, and nuclear facilities. Their resistance to localized corrosion, such as pitting and crevice attack, makes them a preferred choice for long-term reliability. Nial Sheets and Plates offers Hastelloy C276 Sheets and Plates in various thicknesses and sizes, customized to meet the unique requirements of your application.
