Nial Sheets and Plates is a reputable manufacturer and supplier of Hastelloy B3 Sheets and Plates, proudly based in Houston, USA. We cater to industries that require outstanding resistance to harsh chemical environments. Hastelloy B3 is a nickel-molybdenum alloy celebrated for its exceptional resistance to hydrochloric acid and other strongly reducing chemicals. Our sheets and plates are crafted with precision and adhere to strict quality standards, ensuring reliability even in highly corrosive and high-temperature conditions. Nial offers custom sizes and thicknesses with prompt delivery, serving sectors like chemical processing, pharmaceuticals, power generation, and marine engineering with top-notch material solutions.
Typically, Hastelloy B3 Sheets and Plates consist of about 65% nickel and 28–30% molybdenum, along with trace amounts of iron, cobalt, and other elements that boost corrosion resistance and stability. This alloy not only provides enhanced thermal stability compared to its predecessors but also boasts excellent resistance to pitting, stress corrosion cracking, and knife-line attack. Its mechanical properties include a tensile strength of roughly 760 MPa, yield strength around 350 MPa, and good ductility. B3 retains its strength and formability even after welding or fabrication, making it perfect for challenging chemical environments and process conditions.
Specifications :ASTM B333 / ASME SB333
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

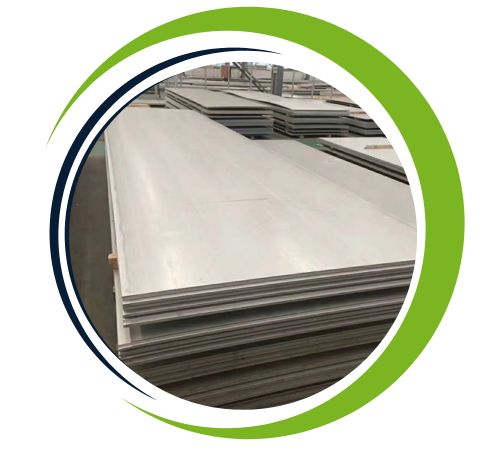

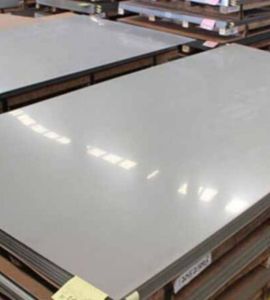

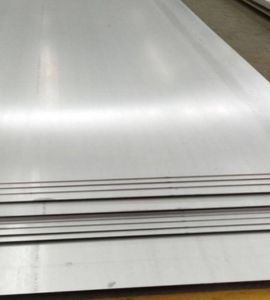

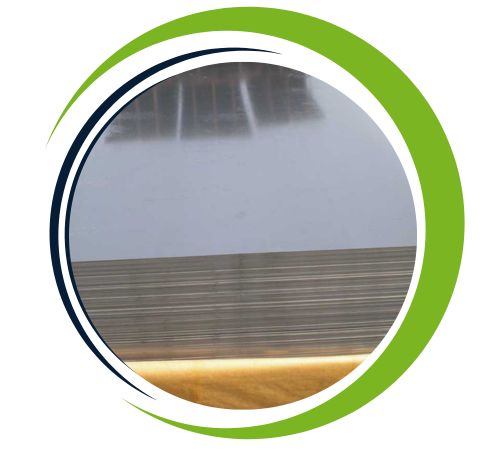

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy B3 | 0.01 max | 3.0 max | 0.10 max | 0.50 max | 3.0 max | 65.0 min | 1.5 | 1.5 | 28.5 | 0.2 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 9.22 g/cm3 | 1418°C (2585°F) | 1000 – 2000 N/mm² , 145 – 290 ksi | 62 – 183 Ksi, 425 – 1260 MPa | 57 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy B3 | 2.4600 | N10675 |
Stocked Sizes | |
|---|---|
Size (in inches) | Size (in mm) |
.125″ | 3.18mm |
.134″ | 3.40mm |
.156″ | 3.96mm |
.187″ | 4.75mm |
.250″ | 6.35mm |
.312″ | 7.92mm |
.375″ | 9.53mm |
.500″ | 12.7mm |
.600″ | 15.9mm |
.750″ | 19.1mm |
.875″ | 22.2mm |
1″ | 25.4mm |
1.125″ | 28.6mm |
1.250″ | 31.8mm |
1.500″ | 38.1mm |
1.750″ | 44.5mm |
2″ | 50.8mm |
2.500″ | 63.5mm |
3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy B3 sheets and plates offer exceptional advantages, especially in harsh, corrosive environments. They provide outstanding resistance to hydrochloric acid, sulfuric acid, and other aggressive chemicals ensuring reliability in chemical processing and waste treatment applications. With excellent resistance to pitting, crevice corrosion, and stress corrosion cracking they ensure long-term durability. The materials high strength and ease of fabrication further enhance its suitability for complex designs and welding. Hastelloy B3 superior performance in reducing conditions, combined with its ability to maintain structural integrity under extreme conditions, makes it a preferred choice for critical industrial applications.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy B3 Sheets and Plates are extensively used in applications that demand superior resistance to reducing acids, particularly hydrochloric acid at all concentrations and temperatures. They find common use in chemical processing equipment such as reactors, pressure vessels, heat exchangers, evaporators, and storage tanks. The pharmaceutical and agrochemical industries rely on B3 for production systems that handle aggressive acids. Additionally, it’s utilized in pollution control systems and the pulp & paper industries, where resistance to acidic attack is vital. With its excellent fabricability and resistance to chemical degradation, Hastelloy B3 stands out as a dependable choice for extreme service environments.
