Nial Sheets and Plates is a Houston, USA-headquartered industry-leading manufacturer and supplier of Titanium Sheets and Plates to serve a wide range of industrial uses. We are known for our dedication to quality, precision, and innovation and supply high-performance titanium materials designed for strength, durability, and resistance to corrosion. Our titanium sheets and plates are well-relied upon across high-demand industries such as aerospace, marine, chemical processing, and medicine. By integrating state-of-the-art manufacturing technologies with rigorous quality assurance, Nial delivers unsurpassed product reliability, timely delivery, and customer-centric service, which makes us a value-added supplier of sheet and plate solutions based on titanium.
Titanium Sheets and Plates consist mainly of titanium (Ti) with alloying elements like aluminium (Al), vanadium (V), and iron (Fe), varying with the grade. Commercially pure titanium (Grades 1–4) is great for corrosion resistance, whereas Ti-6Al-4V (Grade 5) alloys are great for strength. These sheets have a high strength-to-weight ratio, low thermal expansion, and weldability. They have mechanical properties in the form of tensile strength up to 900 MPa, great fatigue strength, and heat resistance up to 600°C. These characteristics make titanium sheets and plates suitable for performance-critical, high-temperature, and corrosive applications.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |

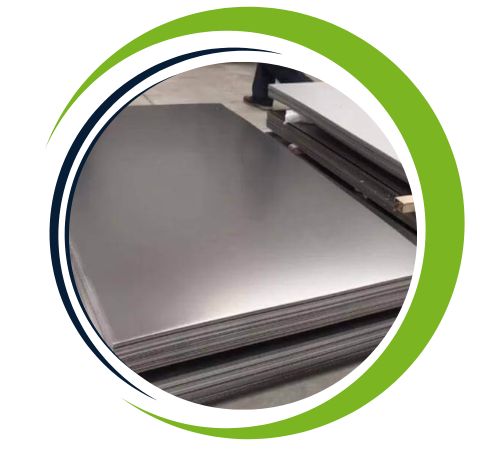

| Condition | Polished on both sides |

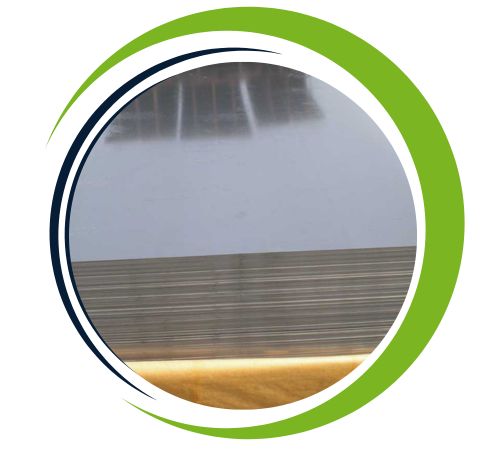

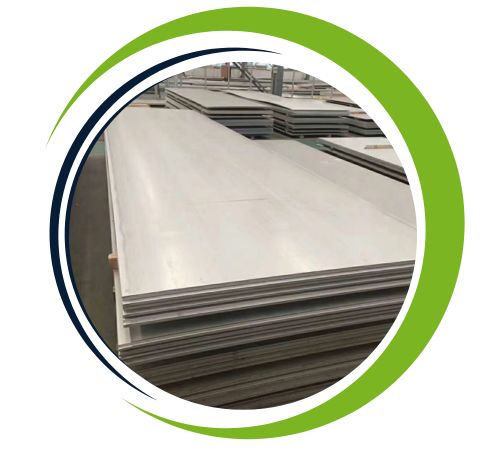

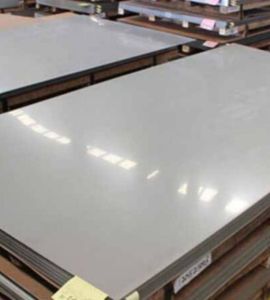

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

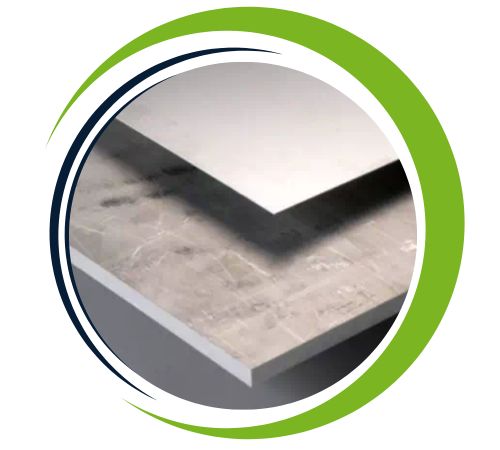

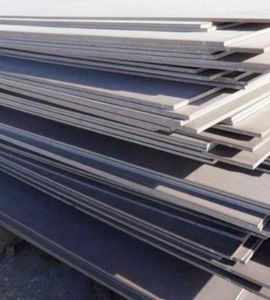

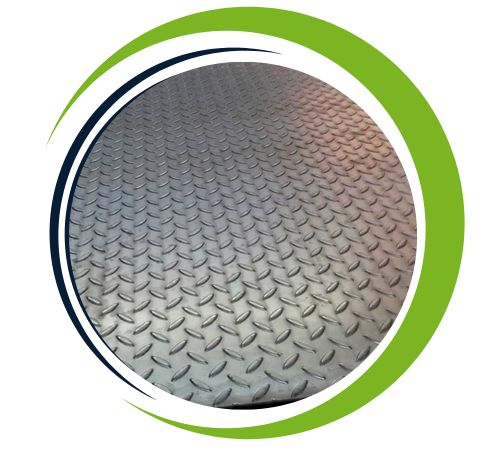

| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| We offer a comprehensive services designed to add value to your project: plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing. | |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| 6Al-4V TITANIUM SHEET SIZES | ||||||
|---|---|---|---|---|---|---|
| Thickness (in) | Size (in) | Appx. Weight Per Sheet (lbs) | ||||
| .016 | 36 x 96 | 8.8 | ||||
| .020 | 36 x 96 | 11.0 | ||||
| .025 | 36 x 96 | 13.8 | ||||
| .032 | 36 x 96 | 17.7 | ||||
| .040 | 36 x 96 | 22.1 | ||||
| .050 | 36 x 96 | 27.7 | ||||
| .063 | 36 x 96 | 34.9 | ||||
| .071 | 36 x 96 | 39.3 | ||||
| .080 | 36 x 96 | 44.2 | ||||
| .090 | 36 x 96 | 49.8 | ||||
| .100 | 36 x 96 | 55.3 | ||||
| .125 | 36 x 96 | 69.1 | ||||
| .160 | 36 x 96 | 88.5 | ||||
| .187 | 36 x 96 | 103.4 | ||||
| CP GRADE 2 TITANIUM SHEET | ||||||
|---|---|---|---|---|---|---|
| Thickness (in) | Size (in) | Appx. Weight Per Sheet (lbs) | ||||
| .020 | 48 x 120 | 18.8 | ||||
| .028 | 48 x 120 | 26.3 | ||||
| .035 | 48 x 120 | 32.9 | ||||
| .040 | 48 x 120 | 37.6 | ||||
| .050 | 48 x 120 | 46.9 | ||||
| .063 | 48 x 120 | 59.1 | ||||
| .078 | 48 x 120 | 73.2 | ||||
| .093 | 48 x 120 | 87.3 | ||||
| .125 | 48 x 120 | 117.4 | ||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium sheets and plates offer exceptional strength-to-weight ratio, making them ideal for lightweight yet strong applications. They exhibit excellent corrosion resistance in aggressive environments like seawater and chemicals. Titanium also has high-temperature resistance, ensuring performance in extreme conditions. Its biocompatibility makes it suitable for medical and aerospace applications. Furthermore, titanium is non-magnetic, has low thermal expansion, and is highly durable with a long service life. Its versatility, excellent weldability, and formability make titanium sheets and plates a preferred choice across various industries.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Titanium Plates and Sheets are widely applied in aerospace, defense, and medical sectors owing to their outstanding mechanical strength, lightness, and biocompatibility. In aerospace, they form part of airframes, jet engine components, and fasteners. In medicine, titanium is employed for implants, prosthetics, and surgical devices owing to its toxicity and corrosion resistance. In chemical processing, it is used in heat exchangers, reactor vessels, and piping systems. Its seawater and high-temperature resistance are advantageous to the marine and power generation industries. These properties render titanium an ideal selection for challenging and enduring industrial applications.
