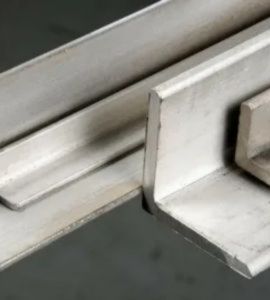

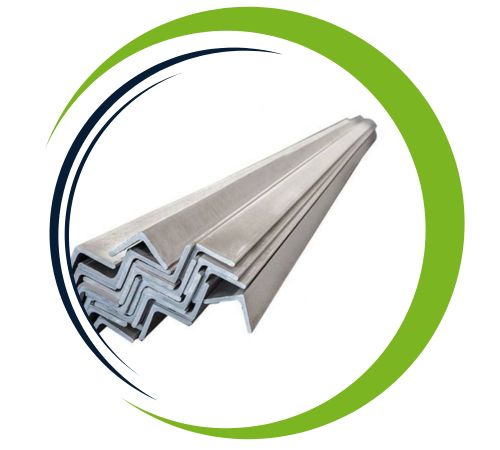

Nial Sheets and Plates, with its base in Houston, USA, is a reliable producer and supplier of Titanium Angles, rendering high-performance metal solutions to global industries. Renowned for our precision engineering prowess, material integrity, and superior customer service, we furnish long-lasting and corrosion-resistance titanium components designed to withstand the most challenging environments. Our Titanium Angles are designed for strength, versatility, and durability, meeting the demands of a broad spectrum of industries like aerospace, construction, marine, and chemical processing. Supported by state-of-the-art manufacturing processes and rigorous quality standards, Nial assures consistent performance and prompt delivery for each titanium product we supply.

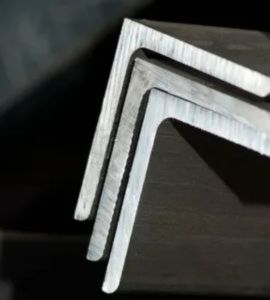

Titanium Angles are usually produced in the form of titanium alloys, particularly Ti-6Al-4V (Grade 5), comprising about 90% titanium, 6% aluminum, and 4% vanadium. This alloy improves strength and corrosion resistance. Mechanical properties involve 900–1,200 MPa tensile strength, high fatigue resistance, and low density (4.43 g/cm³), rendering them light and highly resilient. Titanium angles maintain their mechanical integrity at high temperatures, are resistant to oxidation and corrosion in harsh environments, and have good weldability, making them the perfect material for high-stress and structural usage in critical sectors.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More

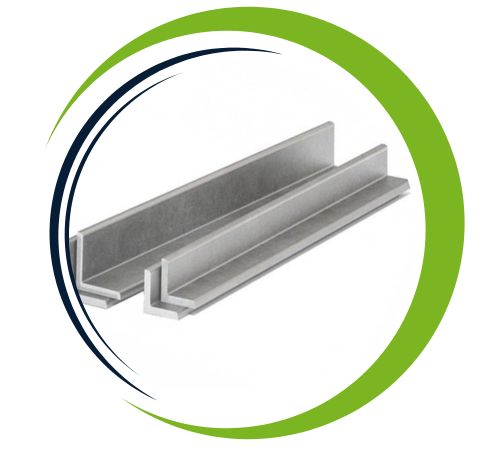

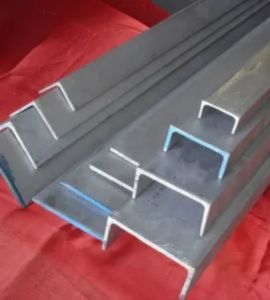

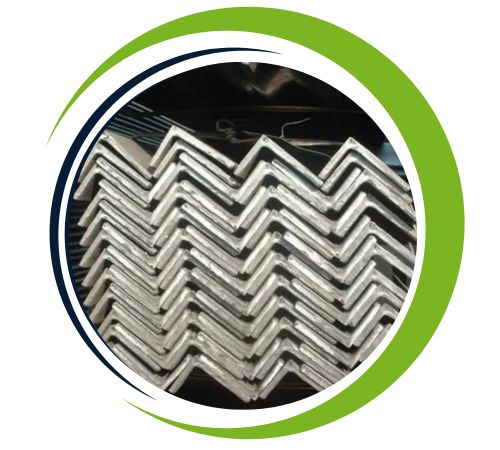

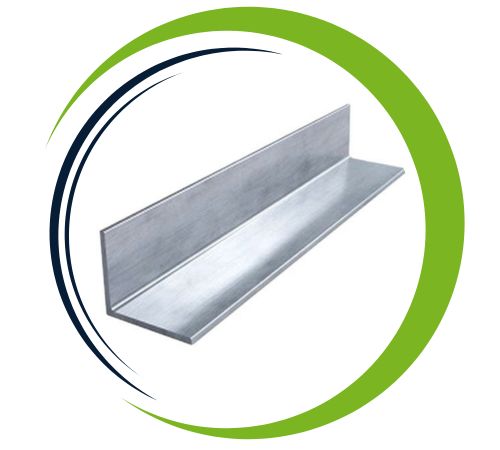

Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium angles offer numerous advantages, including exceptional strength-to-weight ratio, making them ideal for applications where weight reduction is crucial. They are highly resistant to corrosion, even in harsh environments like marine and chemical industries, ensuring longevity and reduced maintenance costs. Titanium angles also perform well at elevated temperatures without losing strength, making them suitable for aerospace and industrial applications. Additionally, they possess excellent fatigue and impact resistance, ensuring durability under stress. Their non-reactive nature also makes them biocompatible, which is beneficial for medical and surgical applications. Overall, titanium angles provide unmatched reliability and performance.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Angle Bar (kilogram/meter) | Titanium Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Titanium Alloy Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Angle to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Angles find broad application in aerospace, marine, chemical processing, and buildings where corrosion resistance, high strength, and lightweights are essential. They are structural frames for aircraft in aerospace, engine mounts, and support brackets. In marine use, they are well suited to shipbuilding, offshore rigs, and subsea equipment because of their seawater resistance. Titanium angles are applied in chemical plants in reactors, tanks, and piping systems due to their resistance to corrosion. Titanium angles also find applications in medical devices, sporting items, automotive structures, and military devices, providing performance and reliability under harsh conditions.
