Nial Sheets and Plates, Houston, USA, is a well-established manufacturer and supplier of quality Monel Sheets and Plates. With their superior corrosion resistance and high strength, Monel alloys find universal applications in the marine, aerospace, and chemical processing industries. We provide a comprehensive selection of sizes and thicknesses to meet industry requirements, providing the best performance in extreme and corrosive environments. Through strict adherence to quality, customer satisfaction, competitive pricing, and timely delivery, Nial Sheets and Plates provides robust, high-performance Monel products for the toughest applications in the globe.
Monel Sheets and Plates are mainly made of 63% nickel, 28–34% copper, with impurities of iron (2.5%), manganese (2%), carbon (0.3%), and silicon (0.5%). Such alloy composition offers superior seawater, acid, and alkali resistance, which makes it suitable for hostile environments. Major mechanical characteristics are tensile strength of 485–585 MPa (70–85 ksi), yield strength of 205 MPa (30 ksi), and elongation of 40% on 2 inches. Due to a Brinell hardness of around 200, Monel Sheets and Plates provide hardness, stress corrosion cracking resistance, and high structural integrity in harsh environments.
Specifications :ASTM B127, ASME SB127, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Length : 12500 mm

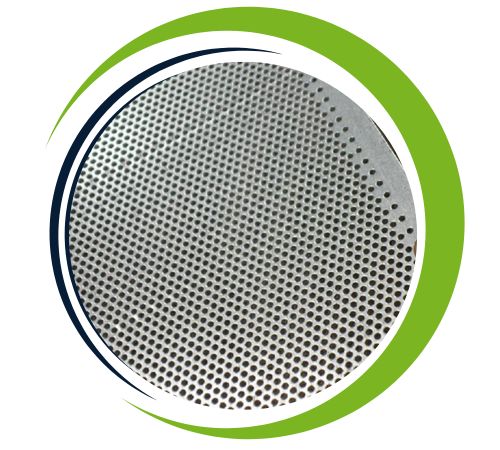

Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
Grade : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
| Sizes in Inches | Sizes in mm |
|---|---|
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .625″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .601″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel Sheets and Plates offer numerous advantages, including exceptional corrosion resistance, especially in harsh environments like seawater, acidic, and alkaline solutions. They possess high strength, excellent weldability, and good formability, making them suitable for complex applications. Monel is resistant to stress corrosion cracking and oxidation, ensuring durability and reliability over time. The alloy also exhibits outstanding resistance to high-temperature environments, making it ideal for marine, aerospace, and chemical processing industries. With these superior properties, Monel Sheets and Plates provide long-term performance, reducing maintenance costs and enhancing the longevity of components and structures.
| Surface finish | Gauge (in) | Width (in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 10–24 | max. 72* |
| 2D – Cold rolled, heat treated, pickled | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Polished (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
Monel Sheets and Plates are extensively used in industries requiring strength, hardness, and corrosion resistance. In seawater applications, they are used for seawater piping, heat exchangers, and propeller shafts that provide long-lasting performance in saltwater corrosion resistance. In chemical processing applications, Monel is suitable for valves, pumps, and reactor hardware due to its acid and alkali resistant nature. The aerospace sector uses Monel in turbine blades and engine components, and the oil and gas industry uses it for pipeline, drilling rig equipment, and pressure systems. It is also preferred in electrical and fastening uses where toughness in harsh environments is vital.
