Nial Sheets and Plates, with its corporate office in Houston, USA, is a leading producer and supplier of top-grade metal products, providing high-performance solutions to industries of all kinds. Among our leading products are Monel K500 Sheets and Plates, which are famous for their high strength, resistance to corrosion, and long-lasting quality under extreme conditions. Made to satisfy the rigorous requirements of aerospace, marine, chemical, and oil and gas industries, our Monel K500 products come in an extensive variety of sizes and thicknesses. Backed by a strong emphasis on quality control, competitive prices, and timely delivery, we provide reliable material solutions for industrial uses globally.
Monel K500 Sheets and Plates consist mainly of 63% nickel and 28–34% copper with other elements such as 2–3% aluminum, 1.5% titanium, and small amounts of iron, manganese, carbon, and silicon. This distinctive alloy has better strength, toughness, and excellent corrosion resistance, especially in seawater and chemicals. Mechanically, it has a tensile strength of 130–150 ksi (895–1035 MPa), yield strength of 60 ksi (415 MPa), elongation of 30% in 2 inches (50 mm), and Brinell hardness of approximately 200, which are suitable for extreme operating conditions.
Specifications :ASTM B127 / ASME SB127, AMS 4544
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

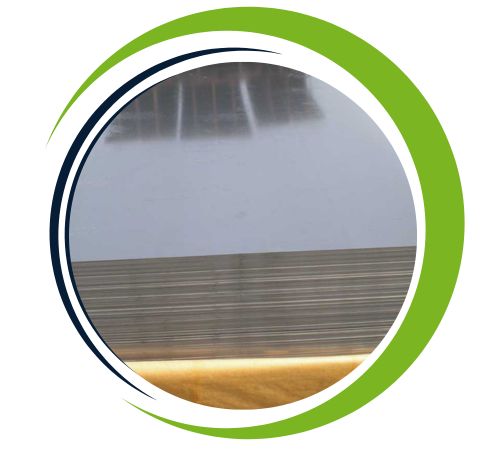

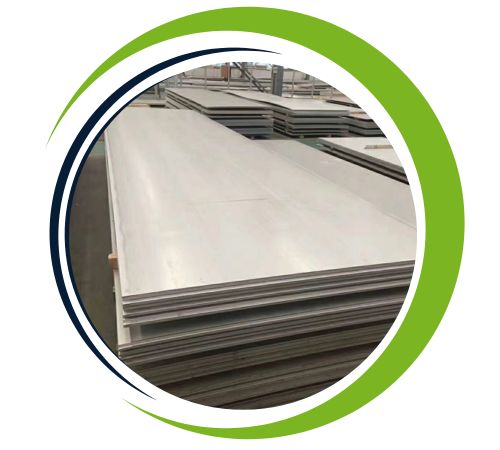

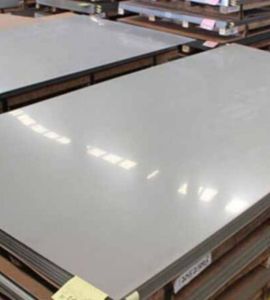

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .601″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel K500 Sheets and Plates offer several advantages, including exceptional corrosion resistance, particularly in seawater, alkaline and acidic environments. The addition of titanium and aluminum enhances the alloy’s strength, hardness, and resistance to stress corrosion cracking. Monel K500 also exhibits excellent fatigue and thermal-fatigue strength, making it ideal for high-stress applications. It provides excellent performance at both high and low temperatures, and its good weldability and formability make it suitable for complex shapes. These attributes make Monel K500 ideal for demanding industries such as aerospace, marine and chemical processing.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Monel K500 Sheets and Plates are used extensively in industries that involve greater corrosion resistance and mechanical properties. In the marine industry, they are employed in seawater piping, pump shafts, valve components, and propeller shafts because of their saltwater-resistant capability. In aerospace, the alloy is utilized in turbine blades and engine parts that are subjected to high stress and heat. The chemical industry employs it in heat exchangers, processing pumps, and valves. Moreover, it finds applications in oil and gas use, for instance, downhole tools and fasteners, where there is a requirement for longevity against corrosive substances and high pressure.
