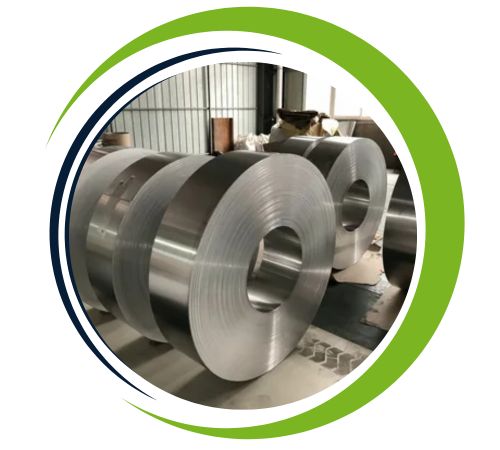

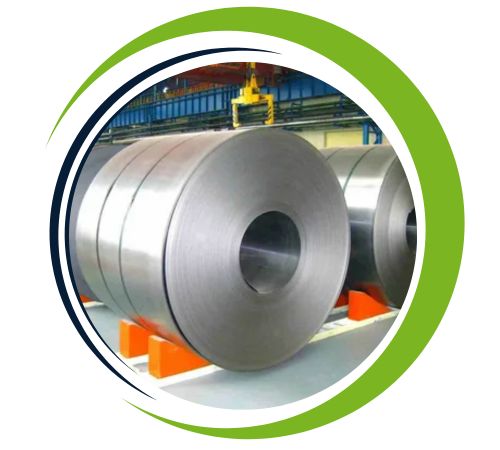

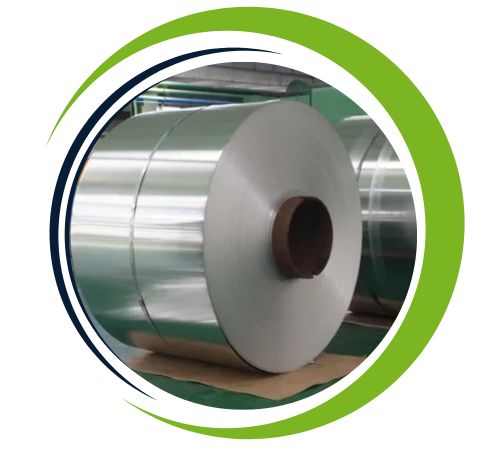

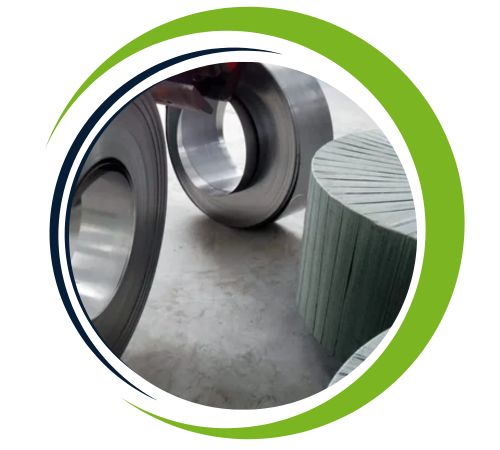

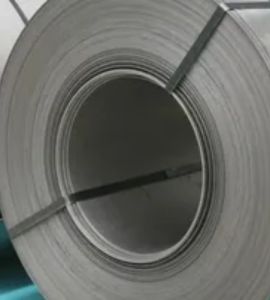

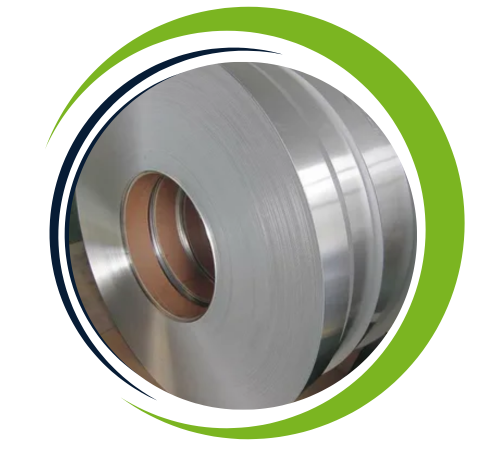

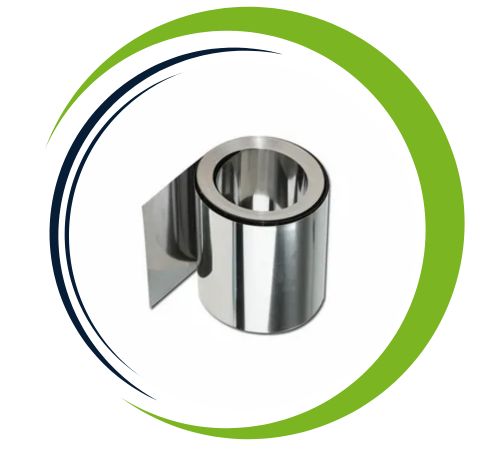

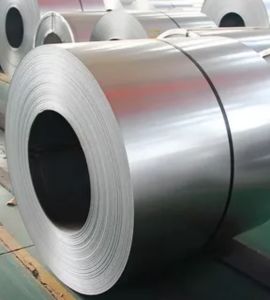

High-performance solutions for vital industrial applications are provided by Nial Sheets and Plates, a reputable manufacturer and supplier of Duplex Steel S32205 Foil in Houston, USA. The strength of ferritic and austenitic grades is combined in Duplex S32205, also referred to as UNS S32205, a nitrogen-enhanced duplex stainless steel. For precise application needs in sectors like chemical processing, marine engineering, and oil and gas, we provide our precision-rolled foils in a range of thicknesses and finishes. With each product we supply, Nial Sheets and Plates guarantees excellent quality, resistance to corrosion, and consistent mechanical properties.
About 22% chromium, 5–6.5% nickel, 3% molybdenum, and 0.14–0.20% nitrogen make up the alloy known as Duplex Steel S32205, which has exceptional resistance to corrosion and pitting. This grade offers high tensile strength (up to 620 MPa) and yield strength that is almost twice as high as that of traditional austenitic stainless steels due to its balanced ferrite-austenite microstructure. Additionally, it shows excellent resistance to fatigue, corrosion, and stress. Even at low temperatures, S32205 foils are renowned for their strong weldability and durability, which makes them appropriate for demanding settings and precise applications.
ASTM A240, ASME SA240
0.02mm – 5.0mm
3.2mm – 1500mm
NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 | 1.4462 | S32205 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Duplex Steel S32205 Foil offers several advantages, making it ideal for challenging industrial applications. Its exceptional corrosion resistance, especially to pitting and crevice corrosion, ensures durability in harsh environments such as chemical processing and marine industries. The alloy’s high tensile strength and yield strength provide superior mechanical performance, even under stress. Additionally, it offers excellent weldability and resistance to stress corrosion cracking. The combination of strength, toughness, and resistance to corrosion makes Duplex Steel S32205 Foil a reliable and cost-effective material for a wide range of applications.
Yes, we offer custom sizes for Duplex Steel S32205 Foil to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
S32205 Duplex Steel Numerous demanding applications requiring high strength, resistance to corrosion, and thin material forms use foil. Flexible hoses, sealing layers, and pressure containment in offshore platforms and subsea equipment are among its applications in the oil and gas sector. Because of its resistance to acids and chlorides, chemical processing facilities use it for linings and seals in tanks and reactors. It functions in parts exposed to saltwater in marine environments. It is also suitable for heat exchangers, medical equipment, and electronics where durability and precision are critical.
