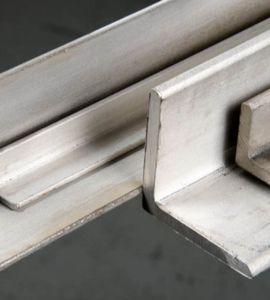

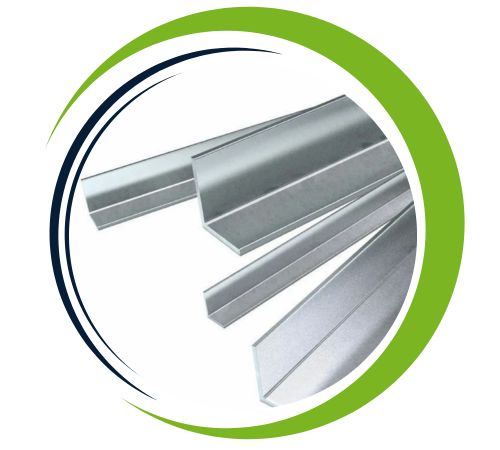

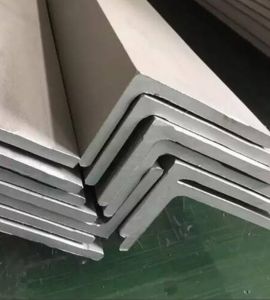

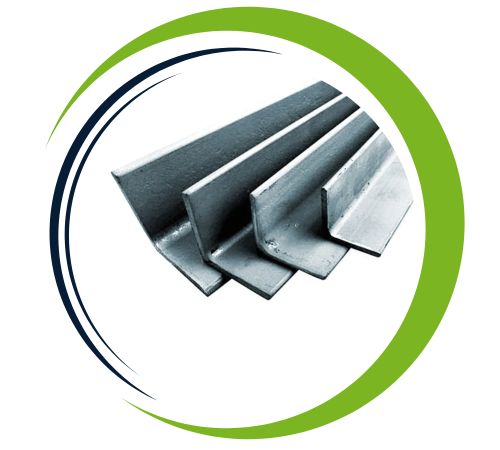

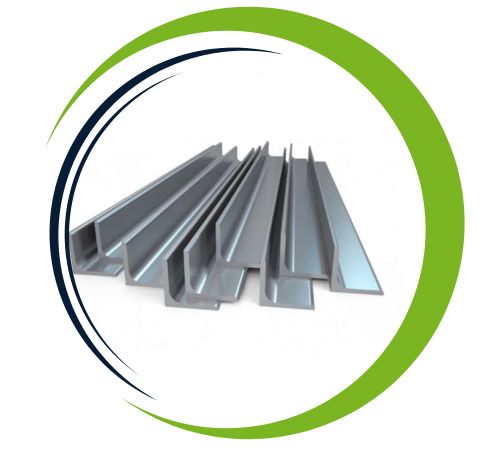

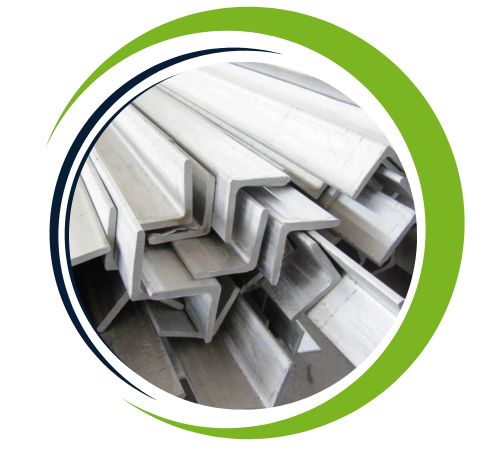

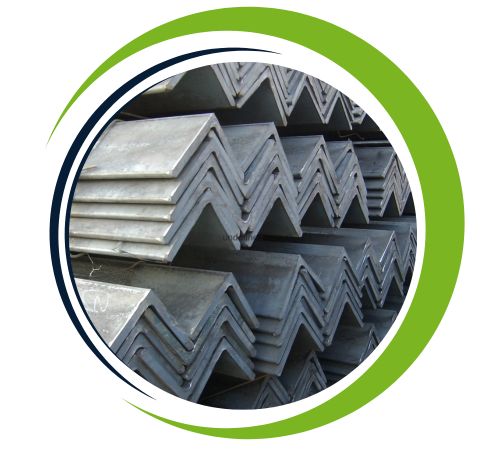

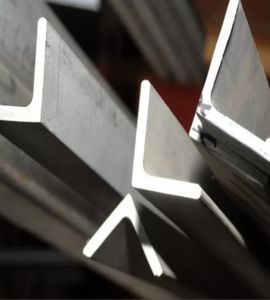

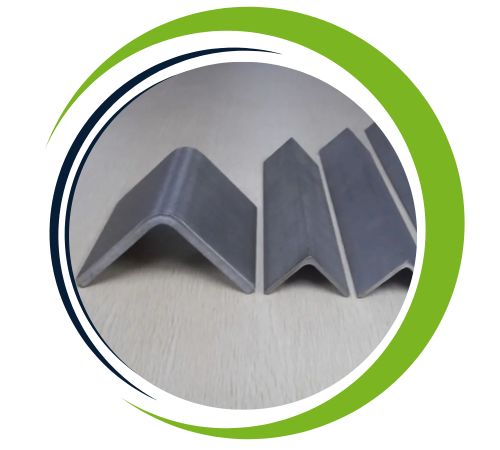

Nial Sheets and Plates stands out as a top-notch manufacturer and supplier of Stainless Steel 202 Angle products right from Houston, USA. We take pride in providing high-quality, precision-engineered stainless steel angles that cater to both industrial and architectural needs. Our Stainless Steel 202 Angles serve as a budget-friendly alternative to traditional grades, all while maintaining impressive strength and durability. With a strong focus on quality, timely delivery, and ensuring customer satisfaction, Nial Sheets and Plates is dedicated to supporting a variety of industries throughout Houston and across the United States with dependable stainless steel solutions tailored to meet diverse project requirements.
Stainless Steel 202 Angle is primarily made up of 17–19% chromium, 4–6% nickel, and 7.5–10% manganese, featuring a low carbon content (maximum 0.15%). This unique blend boosts its resistance to corrosion and wear. The material boasts a tensile strength of around 515 MPa and a yield strength of about 275 MPa. With an elongation of approximately 40%, it offers excellent ductility and formability. These mechanical characteristics make it a robust yet cost-effective option for structural and architectural components, particularly in mildly corrosive environments.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 202 angle offers many advantages, including excellent corrosion resistance, making it ideal for use in wet and chemical environments It has excellent strength and durability, and ensures performance reliability in construction applications. This alloy is cost-effective compared to higher grades like 304, while still providing high resistance to oxidation and turbidity. Stainless Steel 202 is highly versatile, easy to manufacture and maintain, and provides aesthetic appeal. It is commonly used in the construction, design and construction industry, providing a balance of energy and cost.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Stainless Steel 202 Angles find extensive use in construction, infrastructure, and fabrication industries thanks to their strength and affordability. You’ll often see them in structural supports, frames, and reinforcements for buildings and bridges. Their corrosion resistance makes them ideal for kitchen equipment, storage racks, transport containers, and architectural fixtures. Additionally, they’re utilized in railway coaches, automotive parts, and machinery where durability is key. With their attractive finish and strength, Stainless Steel 202 Angles are a favored choice for both functional and decorative metalwork in commercial and industrial applications.
