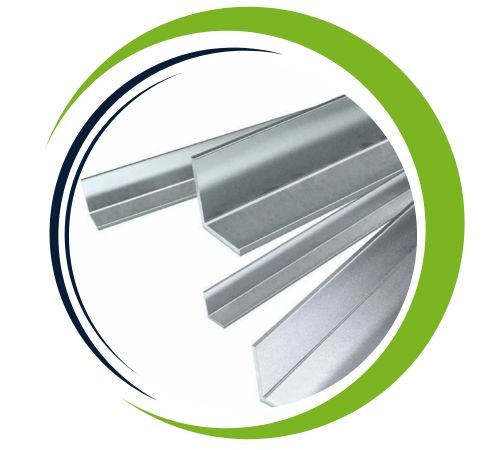

Nial Sheets and Plates, a reputable Houston-based manufacturer and supplier company in the USA, is well known for producing and supplying high-grade metal products, with great emphasis on stainless steel fabrication. The company produces an extensive range of products, including the Stainless Steel 316L Angle, which is well known for its strong corrosion resistance and dependability when used in harsh conditions. Being engineered both for industrial and commercial use, this alloy is perfectly suitable for application in marine, chemical, and food processing industries. By being dedicated to accuracy, quality, and customer satisfaction, Nial Sheets and Plates provides long-lasting and effective solutions to customers worldwide.
Stainless Steel 316L Angle is a low-carbon version of SS 316 with better weldability and resistance to intergranular corrosion, particularly in chloride-containing environments. Its chemical makeup contains chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), and trace amounts of manganese, silicon, and low carbon (<0.03%). Mechanically, it offers tensile strength of 480–620 MPa, yield strength of 170–310 MPa, and elongation of 40–50%. The strong structure provides durability, ductility, as well as resistance to crevice corrosion and pitting, making it suitable for harsh structural and corrosive environments.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316L angle offers many advantages, including exceptional corrosion resistance, especially in chloride zones, making it ideal for marine and chemical applications Its low carbon content enhances its weldability and reduces risk of carbide precipitation. This material is very durable and maintains strength and performance at high temperatures. Stainless steel 316L is also non-magnetic and offers excellent formability, ensuring versatility in construction and construction applications. It is easy to maintain, offers long-term reliability and low maintenance costs, making it desirable for many businesses.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316L Angles are extensively used in high corrosion-resistant demanding industries like marine, chemical, pharmaceutical, and food processing industries. Low carbon content renders them suited for welded structures with little risk of precipitation of carbides. Typical applications are marine equipment, pressure vessels, heat exchangers, reactors, and storage tanks. For their ability to withstand pitting, crevice corrosion, and chloride attack, they are used in desalination plants, offshore structures, and chemical processing equipment. Moreover, 316L angles are also preferred in building and construction activities like bridges and skyscrapers where strength, cleanliness, and durability are crucial.
