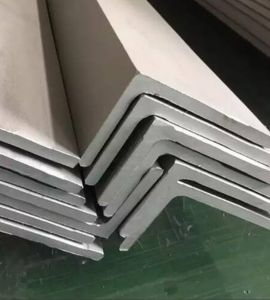

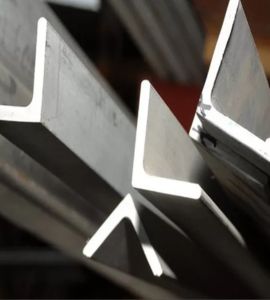

Nial Sheets and Plates is a reliable manufacturer and supplier of top-notch Stainless Steel 316 Angles based in Houston, USA. We cater to industries that need exceptional corrosion resistance, durability, and strength in tough environments. Our precision-crafted Stainless Steel 316 Angles are renowned for their outstanding performance in marine, chemical, and industrial applications. With a strong focus on quality assurance, advanced fabrication techniques, and prompt delivery, we empower clients in construction, petrochemical, and food processing sectors to meet their structural and support requirements with Stainless Steel 316 Angles that promise long-lasting, dependable service, even in the harshest or most corrosive conditions.
Stainless Steel 316 Angles are austenitic stainless steels that contain approximately 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which boosts their resistance to pitting and crevice corrosion in chloride-rich settings. They offer excellent weldability and formability, boasting a tensile strength of around 515–750 MPa and a yield strength close to 205 MPa. This unique blend of toughness, corrosion resistance, and strength makes Stainless Steel 316 Angles ideal for structural and support applications that face corrosive or humid conditions.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

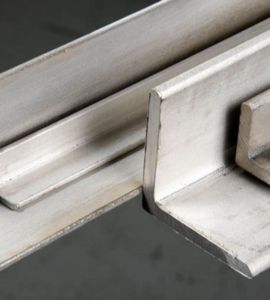

Stainless steel 316 angle provides excellent resistance to corrosion, especially in harsh environments such as marine and chemical conditions, and the molybdenum content gives it excellent strength and durability, allowing it to operate even at elevated temperatures in. This alloy provides excellent weldability and formability, making it suitable for complex structural applications. Additionally, the stainless steel 316 surface is low maintenance, resists pitting, cracking and corrosion, and is very resistant to oxidation. These properties make it ideal for use in industries such as pharmaceuticals, food processing and manufacturing.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
These Stainless Steel 316 Angles are widely utilized in scenarios that require strength, stability, and superior corrosion resistance. You’ll often find them in frameworks, bracing, and supports for marine construction, offshore platforms, and coastal structures where saltwater exposure is common. Chemical and petrochemical facilities rely on them for structural supports and equipment frames that deal with corrosive substances. In the food and beverage sector, they’re essential for processing equipment, conveyors, and structural supports due to their hygienic properties and ease of cleaning. Additionally, they find applications in architecture, bridges, and handrails where durability and corrosion resistance are crucial.
