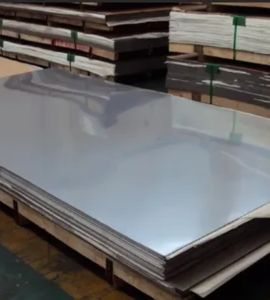

Nial Sheets and Plates is a trusted manufacturer and supplier of Stainless Steel 410 Sheets and Plates based in Houston, USA. They’re known for delivering top-notch products that boast impressive strength, hardness, and resistance to corrosion. Stainless Steel 410 is a martensitic grade that can be heat-treated to enhance its mechanical properties, making it perfect for applications where durability and wear resistance are crucial. Nial ensures that their sheets and plates meet international quality standards, catering to industries like automotive, oil & gas, petrochemical, and tooling. Their 410 stainless steel products are widely recognized for their performance, precision, and long-lasting reliability.
When it comes to composition, Stainless Steel 410 Sheets and Plates are made up of iron, chromium (11.5–13.5%), carbon (up to 0.15%), manganese, and silicon, along with trace amounts of nickel and other elements. This alloy can be hardened through heat treatment, which significantly boosts its mechanical strength. It offers a tensile strength ranging from 450 to 700 MPa and a yield strength of about 275 MPa, with moderate ductility. While its corrosion resistance isn’t as high as that of austenitic grades, it holds up well in mild environments and resists oxidation and scaling at elevated temperatures.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

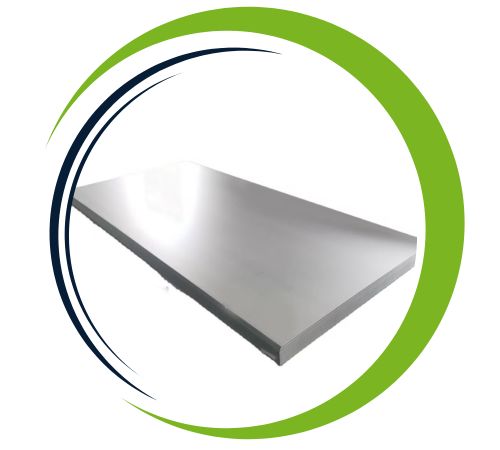

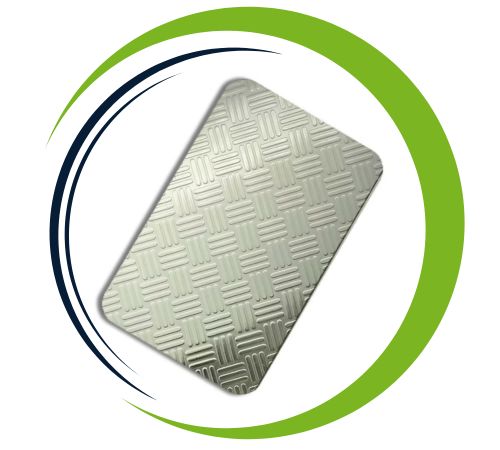

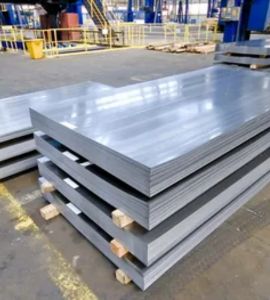

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |

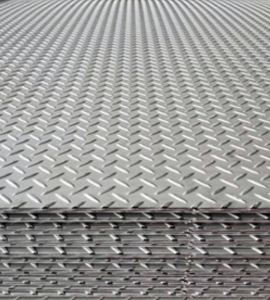

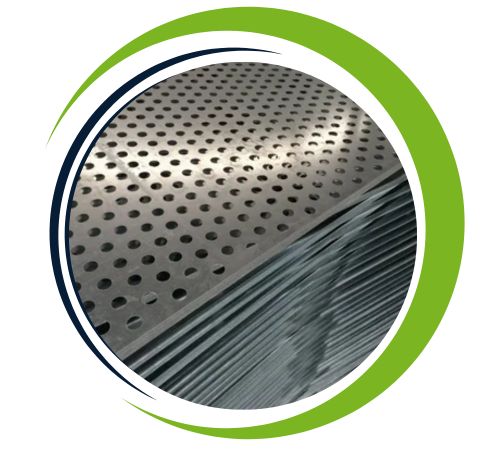

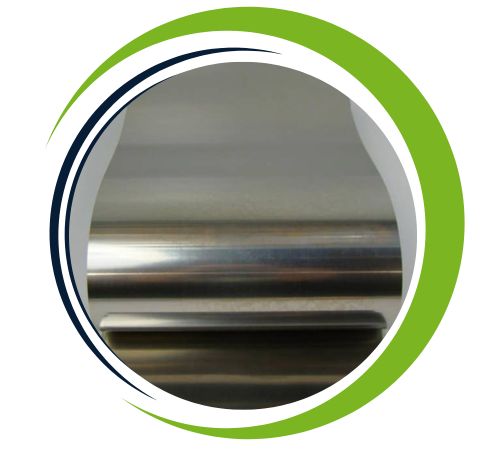

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Cr | Mn | Si | Ni | C | P | S | Fe |
| SS 410 | 11.50 – 13.50 | 0.0 – 1.50 | 0.0 – 1.00 | 0.0 – 0.75 | 0.08 – 0.15 | 0.0 – 0.04 | 0.0 – 0.02 | Balance |
| Tensile Strength Ksi (Mpa) | 0.2% Offset Yield Strength Ksi (Mpa) | Elongation, % in 2″ (51 mm) | Hardening Response HRC | HRB |
| 65 (450) – 74 (510) | 30 (205) – 42 (290) | 20 – 34 | 38-45 | 82-96 |
| Grade | WERKSTOFF NR. | UNS | AISI | BS | SIS | EN | JIS | AFNOR |
| SS 410 | 1.4006 | S41000 | 410 | 410S21 | 2302 | X12Cr13 | 410 | Z10C13/Z13C13 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 410 | 7750 | 200 | 9.9 | 11.4 | 11.6 | 24.9 | 28.7 | 460 | 570 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 410 sheets and plates offer a variety of benefits including excellent hardness and corrosion resistance, making them ideal for hard-wearing components such as cutlery, fasteners and valves especially in soft corrosive environments moderate corrosion resistance due to chromium content. Their high strength and durability enable them to be used in buildings and mechanical components. In addition, they can be heat treated, increasing the mechanical properties. Simple and affordable devices further enhance their appeal, making them a great choice for industries such as automotive, aerospace and construction.
You’ll find Stainless Steel 410 Sheets and Plates in a wide array of applications where strength, wear resistance, and moderate corrosion resistance are essential. They’re commonly used in valves, pump components, turbine blades, kitchen utensils, and various machine parts. In the automotive and aerospace industries, they play a role in exhaust systems, structural elements, and hardware. They’re also utilized in petrochemical processing, cutlery, and industrial tools. Thanks to their heat treatability, they’re particularly well-suited for high-stress or abrasive conditions, all while maintaining good machinability and formability.
