Nial Sheets and Plates is a trusted manufacturer and supplier located in Houston, USA, specializing in high-quality Stainless Steel 316L Sheets and Plates tailored to meet a variety of industrial requirements. Renowned for their outstanding corrosion resistance and impressive mechanical properties, these sheets and plates are particularly well-suited for marine, chemical, and pharmaceutical applications. Stainless Steel 316L is a low-carbon version of 316, which not only improves its weldability but also minimizes the risk of carbide precipitation during the welding process. At Nial, we take pride in ensuring our products are precision-engineered, adhere to international quality standards, and are delivered on time to guarantee maximum satisfaction for our clients across the USA and beyond.
The composition of Stainless Steel 316L Sheets and Plates includes Chromium (16–18%), Nickel (10–14%), Molybdenum (2–3%), and a low Carbon content (maximum 0.03%). This unique blend provides exceptional resistance to pitting, crevice corrosion, and general corrosion in environments rich in chlorides. The alloy boasts a tensile strength of approximately 485 MPa, a yield strength of 170 MPa, and an elongation of around 40%. The lower carbon content enhances weldability without sacrificing strength, making 316L an excellent choice for critical fabrication tasks.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

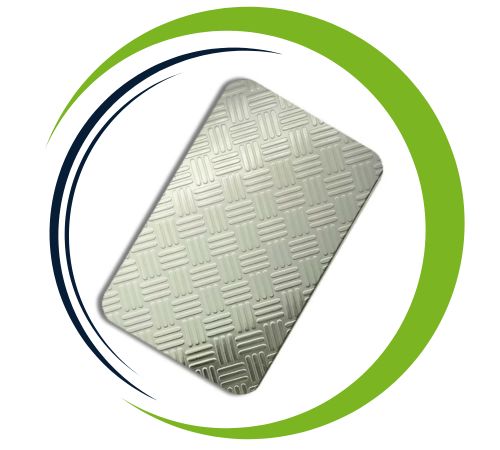

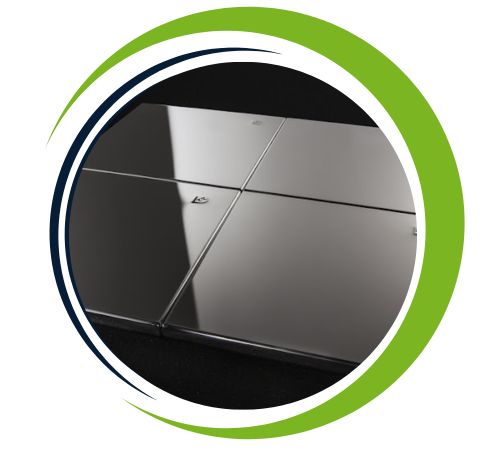

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

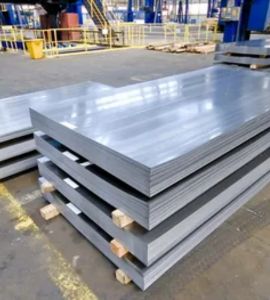

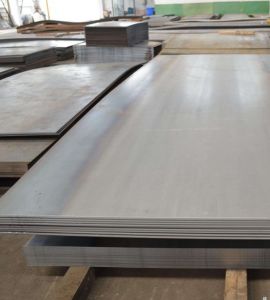

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

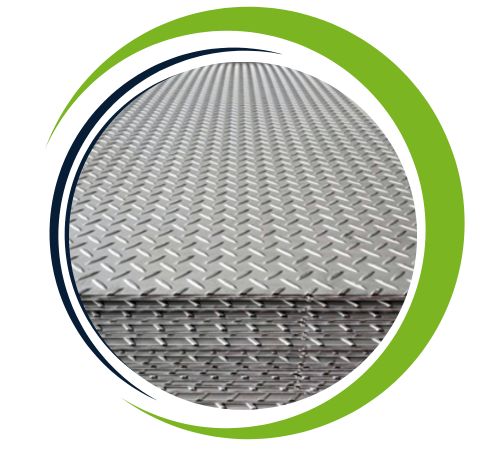

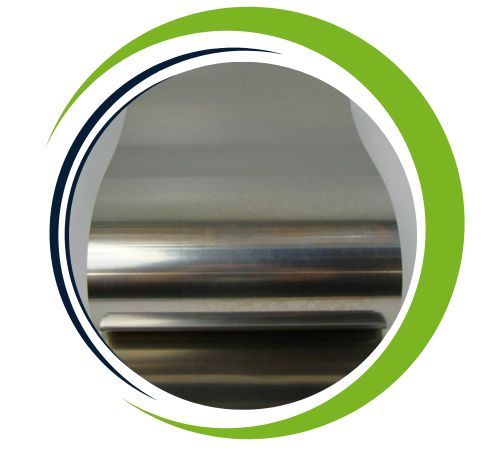

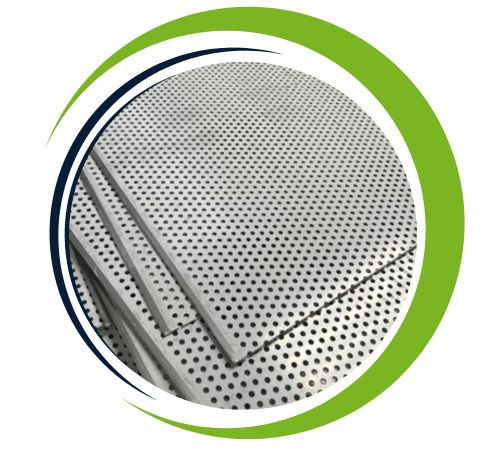

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Material | Size | Thickness |

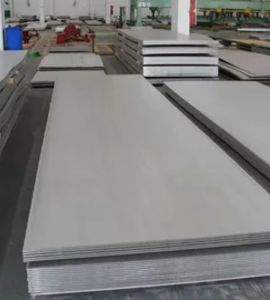

| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316L Sheets and Plates find extensive use in industries where corrosion resistance is paramount, such as marine, chemical processing, food and beverage, and pharmaceuticals. They are perfect for applications like pressure vessels, heat exchangers, marine structures, and medical devices due to their non-reactive and hygienic surface. Additionally, SS 316L is commonly utilized in architectural projects, flue gas systems, and pulp and paper equipment. The combination of strength, corrosion resistance, and ease of fabrication makes it a go-to option for both structural and sanitary applications in challenging environments.
Stainless steel 316L sheets and plates are widely used in applications requiring high corrosion resistance and strength. Because of their resistance to chloride corrosion, they are commonly found in marine environments, chemical plants, and pharmaceutical equipment. Other applications include food processing equipment, medical devices, heat exchangers and nuclear reactors. 316L is also used for building materials, as well as pipes, valves and fittings. Its excellent welding capabilities make it ideal for manufacturing and custom designs in harsh environments.
