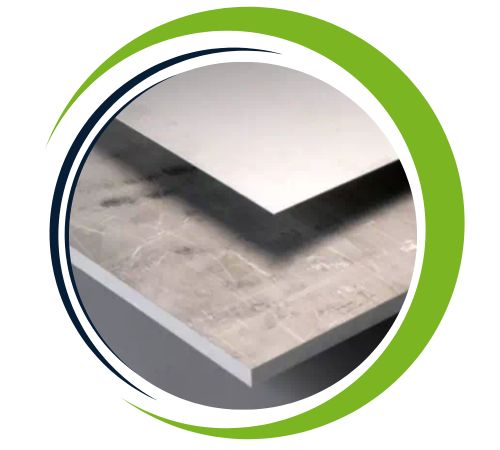

Nial Sheets and Plates is a leading Houston, USA-based company that produces and supplies top–notch metal plates and sheets to various industrial and commercial segments. Among its best-sellers is the Stainless Steel 17-4 PH Sheets and Plates with renowned mechanical strength, corrosion resistance, and dimensional stability across harsh conditions. These plates are the best in aerospace, chemical processing, and marine engineering applications. With a firm focus on quality assurance, accuracy manufacturing, and customer satisfaction, Nial provides long-lasting, high-performance solutions that satisfy the most stringent industry standards and worldwide standards.
UNS S17400 (17-4 PH) Sheets and Plates consist of around 15–17.5% Chromium, 3–5% Nickel, 3–5% Copper, 0.15–0.45% Niobium, and trace amounts of Manganese, Silicon, and Carbon. This precipitation-hardening stainless steel offers superior corrosion resistance and high strength. It offers yield strength of 725–1035 MPa, tensile strength of 930–1180 MPa, and elongation of 10–15%, based on heat treatment. These mechanical properties, along with superior hardness, toughness, and stress corrosion cracking resistance, make 17-4 PH a perfect material for precision-critical, high-performance industrial uses.
| Grade | Stainless Steel 17-4 PH | UNS S17400 |
| Standard | ASTM B625 / ASME SB625 |
| Thickness | 0.1mm To 100 mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |

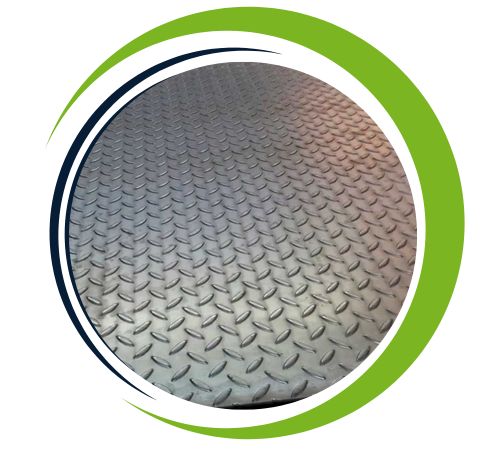

| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

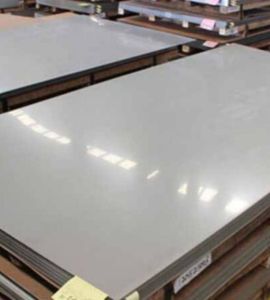

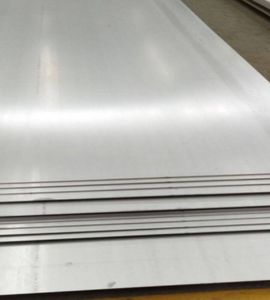

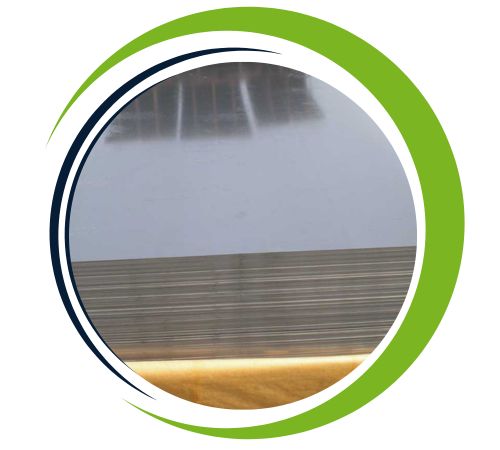

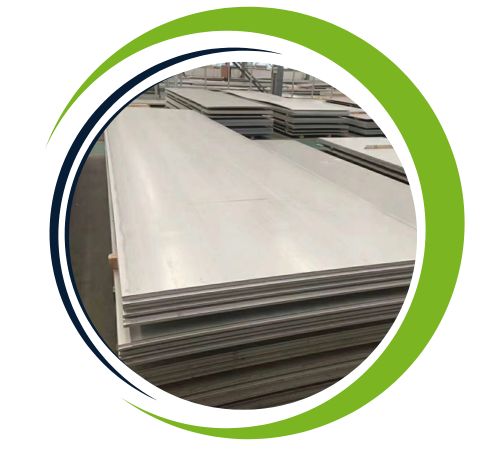

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

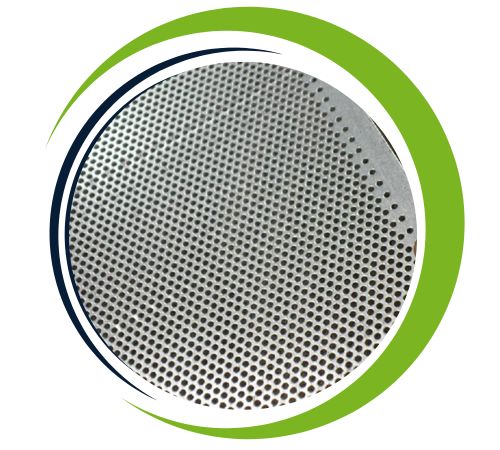

| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Applications | Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry |
| Cr | Mn | Si | Ni | P | S | C | Cu | cb+Ta | |
| MIN | 15 | – | – | 3 | – | – | – | 3 | 0.15 |
| Max | 17.5 | 1 | 1 | 5 | 0.04 | 0.03 | 0.07 | 3.5 | 0.45 |
| UTS (Tensile) Ksi (Mpa) | .02% Yield Strength Ksi (Mpa) | Elongation % in 2” (51mm) | Hardness Rockwell C |
| 160 | 145 | 5 | 35 |
| (1103) | (1000) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 17-4 PH Sheets and Plates offer numerous advantages, including high strength, excellent corrosion resistance, and outstanding toughness, even in challenging environments. DIN 1.4542 Sheets and Plates are heat-treatable, allowing customization of mechanical properties to suit specific applications. These sheets exhibit superior resistance to stress corrosion cracking and pitting, making them ideal for marine and chemical environments. Their exceptional weldability and ease of fabrication simplify manufacturing processes. With excellent performance at moderate to high temperatures, they are widely used in aerospace, petrochemical, and food processing industries, ensuring reliability, durability, and long service life in demanding
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| Stainless Steel 17-4 PH 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |
| 2R – Stainless Steel 17-4 PH Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 17-4 PH Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 17-4 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 17-4 PH Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 17-4 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 17-4 PH Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 17-4 PH Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |

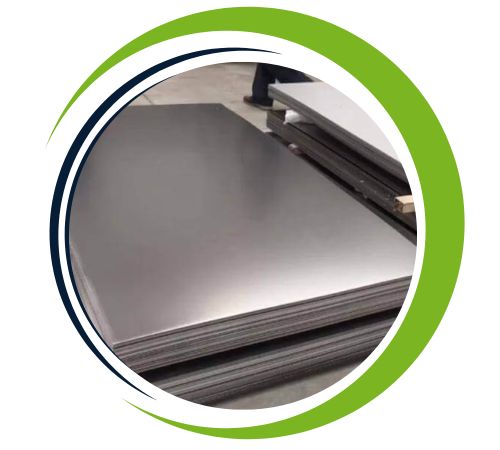

| Stainless Steel 17-4 PH Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
| Deco | 0.3–3.5 | max. 1524 |
| Stainless Steel 17-4 PH Coil | 0.30–3.5 | max. 1,524 |
Yes, we offer custom sizes for Stainless Steel 17-4 PH Sheet and Plates to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
Stainless Steel 17-4 PH Sheets and Plates find widespread applications in industries that need a balance of high strength, toughness, and corrosion resistance. They play an important role in aerospace uses like turbine blades, aircraft hardware, and structural parts. They are used in valves, pumps, and pressure vessels in marine and chemical processing industries. Their stress corrosion cracking resistance renders them useful in oil and gas, pharmaceutical, and food processing operations. They are also used in nuclear power systems, heat exchangers, molds, and tooling—where they need to withstand harsh conditions and perform with consistency.
