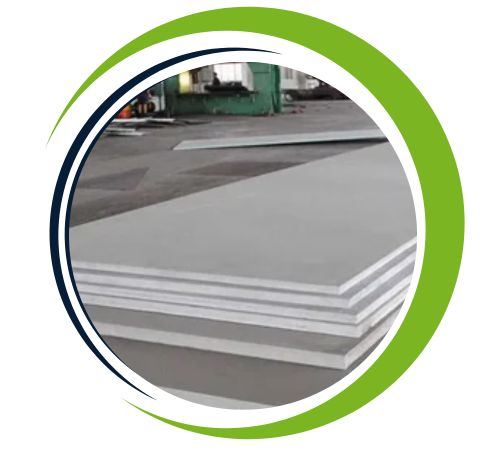

Nial Sheets and Plates is a reliable manufacturer and supplier of top-notch Stainless Steel 304H Sheets and Plates based in Houston, USA. We cater to industries that need materials with higher strength and outstanding performance in high-temperature settings. Our Stainless Steel 304H Sheets and Plates are meticulously crafted to meet the demands of structural and pressure applications in heat-intensive environments. With a strong focus on quality control, advanced processing techniques, and prompt delivery, we proudly serve sectors like petrochemical, power generation, oil and gas, and chemical processing. Our products are designed to provide durability, corrosion resistance, and long-lasting reliability even under extreme heat and pressure.
Stainless Steel 304H Sheets and Plates are austenitic stainless steels that contain approximately 18–20% chromium and 8–11% nickel, along with a higher carbon content (0.04–0.10%) compared to standard 304. This unique composition enhances their strength at high temperatures and improves creep resistance. They boast excellent oxidation resistance and solid mechanical properties, with tensile strength ranging from 515 to 740 MPa and yield strength around 205 MPa. These plates maintain their structural integrity even in elevated temperatures, making them ideal for pressure vessels and heat exchangers.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |

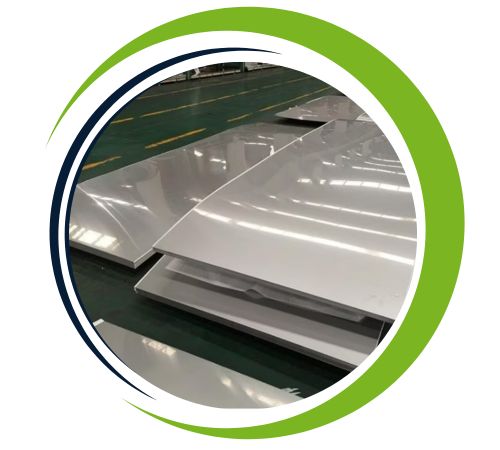

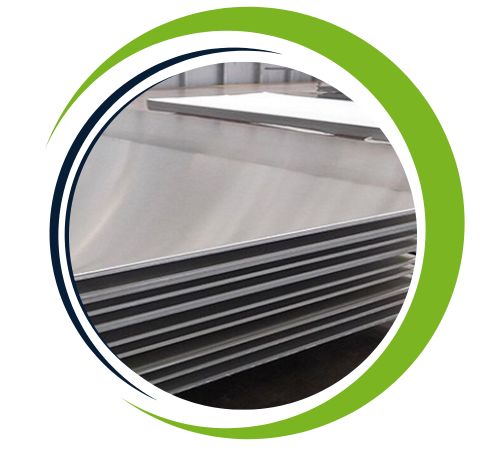

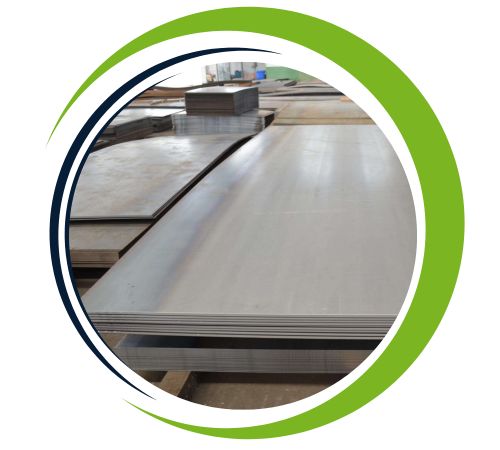

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

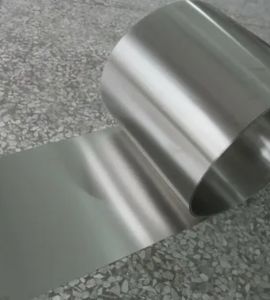

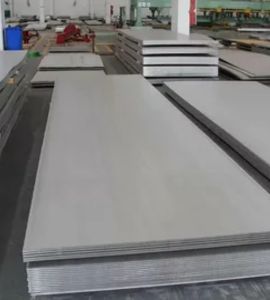

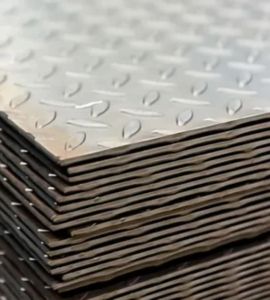

| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304H | 1.4948 | S30409 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 304H sheets and plates offer many benefits, including excellent corrosion resistance, making them ideal for harsh environments. Due to their strength and durability, they are well suited for high temperature applications, especially in industries such as fuel and power generation. The material is highly resistant to oxidation and scaling, providing durability and reliability. Their ease of manufacture, form, and weldability allow them to be used in a variety of architectural and industrial applications. In addition, 304H offers excellent resistance to chloride-induced stress corrosion cracking, making it an excellent choice for harsh conditions
You’ll find Stainless Steel 304H Sheets and Plates widely used in applications that require dependable performance and durability under high temperatures and pressures. They are commonly found in heat exchangers, boiler components, steam piping, and superheater tubes in power plants and refineries. The petrochemical and chemical industries utilize them for pressure vessels, reactor chambers, and tanks that manage corrosive media under heat. Additionally, they are perfect for furnace parts, heat treatment equipment, and structural frameworks that experience thermal cycling. Thanks to their higher carbon content, strength, and corrosion resistance, Stainless Steel 304H Sheets and Plates are a trustworthy choice for high-temperature applications.
