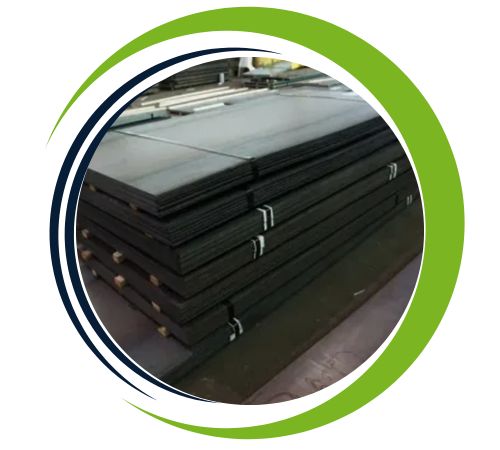

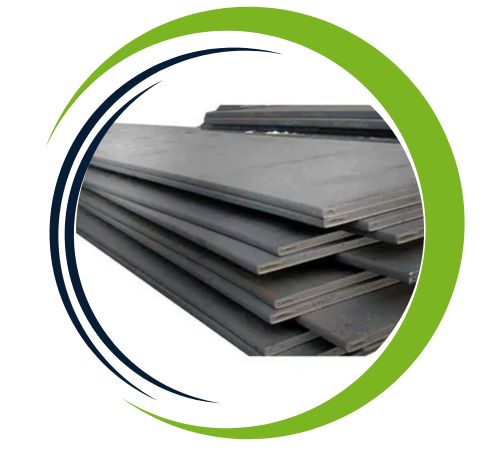

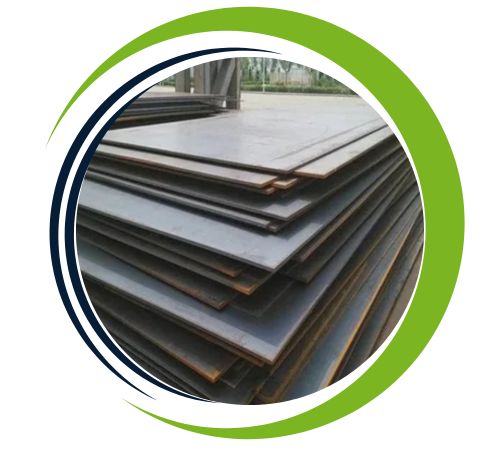

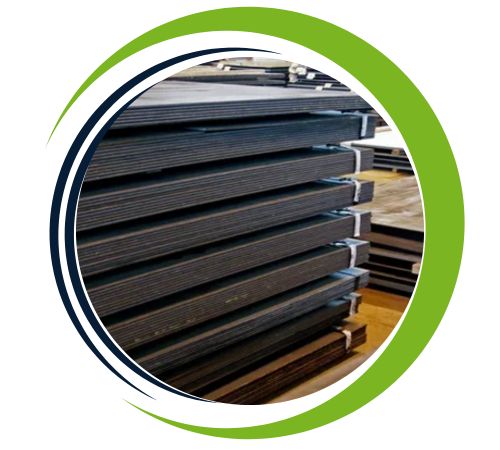

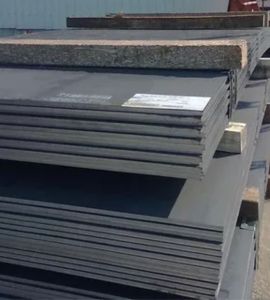

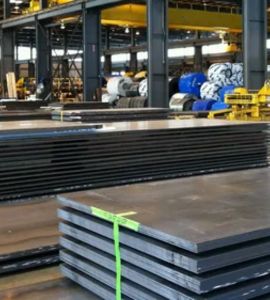

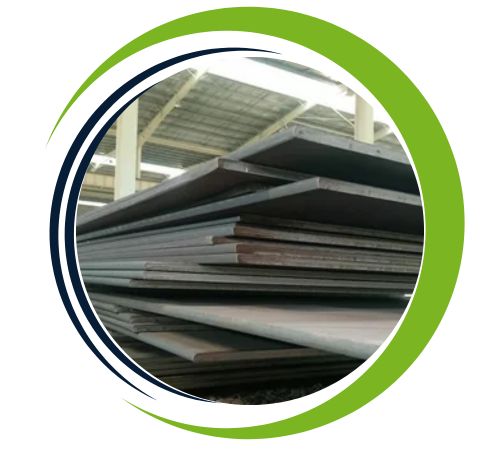

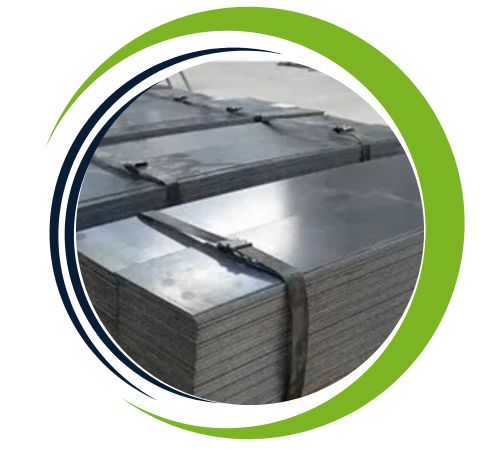

Nial Sheets and Plates is a trusted manufacturer and supplier located in Houston, USA, focusing on high-strength materials for pressure vessels, such as SA537 Class 1 Boiler Sheets and Plates. These sheets are specifically designed for welded pressure vessels and boilers, offering outstanding toughness, impact resistance, and weldability. Nial takes pride in ensuring that each plate is meticulously processed to comply with ASME and ASTM standards, making them perfect for critical applications in industries like oil and gas, petrochemicals, power generation, and energy. With a strong emphasis on quality control and timely delivery, Nial is dedicated to providing materials that guarantee safety and performance under pressure.
SA537 Class 1 Boiler Sheets and Plates are normalized carbon-manganese-silicon steel plates, typically composed of Carbon (≤0.24%), Manganese (0.70–1.60%), Silicon (0.13–0.45%), Phosphorus (≤0.035%), and Sulfur (≤0.035%). These plates boast impressive mechanical properties, featuring a minimum yield strength of 240 MPa and tensile strength ranging from 485 to 620 MPa. They also exhibit good notch toughness, particularly in low-temperature conditions, and can be easily welded and formed, making them suitable for demanding pressure applications.
Grade : ASME SA 537 CL.1 Boiler and Pressure Vessel Steel Plates
Width : 1000mm-4500mm
Thickness : 5mm-150mm
Length : 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Tempering : Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications : Used for Boilers and Pressure Vessels Application.

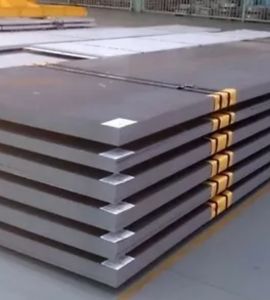

Process of Manufacturing : Hot-Rolled (HR)
| C | Mn | P | S | Si | Cr | Cu | Ni | Mo | |
| ≤ 40 mm | > 40 mm | ||||||||
| 0.24 max | 0.70/1.35 | 1.00/1.60 | 0.035 | 0.035 | 0.15/0.50 | 0.025 | 0.35 | 0.25 | 0.080 |
| Grade | Heat Treatment | Yield (MPa) | Tensile (MPa) | Elongation | Thickness | |
| A50mm | A200mm | |||||
| SA537 Class 1 | Normalized | 345 | 485/620 | 22% | 18% | ≤ 65 |
| 310 | 450/585 | 22% | 18% | > 65 ≤ 100 | ||
| Steel Grade | JIS | Germany |
| ASTM/ASME | G3115 | DIN17155 |
| A537 / SA537 | SPV36 | 19Mn5 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA537 Class 1 Boiler Sheet and Plate offer excellent strength, toughness, and resistance to pressure, making them ideal for use in high-temperature and high-pressure applications like boilers and pressure vessels. Their superior weldability allows for easy fabrication, while their resistance to cracking and corrosion enhances reliability in demanding environments. This steel is heat-treated to ensure improved mechanical properties, long-term durability, and performance. With excellent formability and impact resistance, SA537 Class 1 is a trusted choice for power generation, petrochemicals, and manufacturing industries.
These SA537 Class 1 Boiler Sheets and Plates find extensive use in the manufacturing of reactors, storage tanks, boilers, and heat exchangers, especially in high-pressure and high-temperature environments. Common applications include pressure vessels in refineries, offshore platforms, chemical plants, and thermal power stations. Their robust mechanical strength and high fracture toughness make them ideal for situations where durability and resistance to rupture or fatigue are essential. Additionally, these plates are utilized in industrial autoclaves and components that require excellent weldability, structural integrity, and a long service life under dynamic loading conditions.
