Shipbuilding Steel Sheet and Plate

Nial Sheets and Plates is a reliable manufacturer and supplier of top-notch Sailhard Sheets and Plates based in Houston, USA. We cater to a wide range of industrial needs with quality and dependability that stand out. Our Sailhard Sheets and Plates are well-known for their remarkable wear resistance, toughness, and durability, making them perfect for high-impact and abrasive environments. We prioritize delivering consistent thickness, excellent surface finishes, and precise dimensions to meet the diverse needs of our clients. Thanks to our dedication to timely delivery and customer satisfaction, Nial Sheets and Plates has become a go-to source for Sailhard Sheets and Plates across various industries.

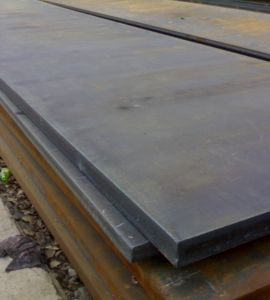

LR Shipbuilding Steel Plate

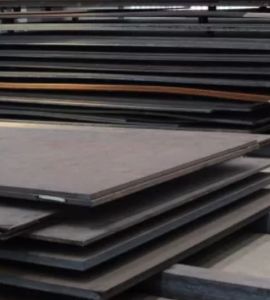

Grade A Shipbuilding Steel Plate

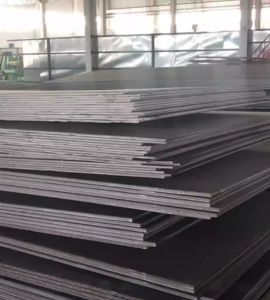

Ship Steel Sheet

Hot Rolled Shipbuilding 12mm Carbon Plate Manufacturer in Los Angeles, Shipbuilding Sheet Ah40 Marine Grade Steel Plate Texas, Hot Rolled EH36 Shipbuilding Steel Sheet Supplier in Houston, 12mm Black Surface Iron Ship Steel Sheet Exporter in Houston , Shipbuilding Steel Plate EH36 Price List in United Kingdom, ASTM A131 Shipbuilding Steel Plate Distributor in Texas, LR Shipbuilding Steel Plate and Sheet Supplier in Los Angeles, HR Shipbuilding Carbon Plate Distributor in USA, DH36 High Strength Shipbuilding Steel Plates Sizes in mm

When it comes to composition, Shipbuilding Steel Sheets and Plates typically include carbon (up to 0.21%), manganese (0.40–1.60%), silicon (0.10–0.50%), along with trace amounts of phosphorus and sulfur. They boast impressive tensile strength ranging from 400 to 520 MPa and excellent yield strength between 235 and 355 MPa, along with good elongation properties for forming and welding. These plates are crafted for exceptional toughness, ductility, and resistance to corrosion and cracking, ensuring they perform reliably even in the most challenging marine and offshore conditions.

Shipbuilding Steel Sheet and Plate Specification

Weight	Up to 40 ton
Width	1500-4000
Thickness	4-200 mm
grades	EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents
Length	Up to 20000
Delivery condition	quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled

Chemical Composition of Ship Steel Plate

Grade	C%≤	Al %	Mn %	p % ≤	S % ≤	Si %	Nb %	V %
D32 A32 E32	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	—	—
A	0.22	—	≥ 2.5C	0.04	0.40	0.10~0.35	—	—
B	0.21	—	0.60~1.00	0.04	0.40	0.10~0.35	—	—
E	0.18	≥0.015	0.70~1.20	0.04	0.04	0.10~0.35	—
D36 A36 E36	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	0.015~0.050	0.030~0.10
D	0.21	≥0.015	0.60~1.00	0.04	0.04	0.10~0.35	—	—

Shipbuilding Steel Plate Mechanical Properties

Grade	Yieldpoint (Mpa) ≥	Tensile Strength (Mpa)	Elongation （%）≥	cold bend test		Thickness (mm)	V-impact test
				b=5a 120°	b=2a 180°		Temperature （℃）	Average AKV A kv /J
								lengthways	crosswise
								≥
A	235	400~490	22	—	d=2a	≤50 mm	—	—	—
B				d=3a	—		0	27	20
D							-10
E							-40
A32	315	440~590	22	d=3a	—	≤50 mm	0	31	22
D32							-20
E32							-40
A36	355	490~620	21	d=3a	—	≤50 mm	0	34	24
D36							-20
E36							-40

Ship Steel Plate Price in California, LR Shipbuilding Steel Plate Weight Chart, Shipyard Steel Plate Supplier in United Kingdom, Stockist of Hot Rolled Steel Plate A36 in Houston , Ship Steel Sheet Supplier in USA, Cut Length AH36 Ship Steel Plate Price List in Houston, Grade A Shipbuilding Steel Plate Supplier in Houston , ASTM AH36 High Strength Shipbuilding Steel Plate Exporter in Los Angeles, ASTM A131 Grade AH36 Shipbuilding Steel Sheets and Plates Exporter in USA, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates in California

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Shipbuilding Steel Sheet and Plate Manufacturer and Exporter in Houston, USA

Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Ship Steel Plate Size Range

size(mm)						CSA (cm2)	weight (kg/m)
	h	t	r1	b	r	CSA (cm2)	weight (kg/m)
	19	5	4	80	≤1.5	5.41	4.25
	20	6	4	80	≤2	6.21	4.88
	22.5	7	4.5	100	≤2	8.74	6.86
	23.5	8	4.5	100	≤2	9.74	7.65
	23	6	5	120	≤2	9.32	7.32
	24	7				10.52	8.26
	25	8				11.72	9.2
	26	7	5.5	140	≤2	12.43	9.75
	27	8			≤2	13.83	10.85
	29	10			≤3	16.63	13.05
	29	7	6	160	≤2	14.6	11.46
	30	8				16.2	12.72
	31	9				17.8	13.97
	33	11			≤3	21	16.49
	33	8	7	180	≤2	18.86	14.8
	34	9			≤2	20.66	16.22
	35	10			≤3	22.46	17.63
	36	11			≤3	24.26	19.04
	37	9	8	200	≤2	23.66	18.57
	38	10			≤3	25.66	20.14
	39	11				27.66	21.71
	40	12				29.66	23.28
	41	10	9	220	≤3	29.66	22.27
	42	11				29	24.5
	43	12				31.2	26.22
	40	10	10	240	≤3	33.49	25.5
	45	11				34.89	27.39
	46	12				37.29	29.27
	47	10	11	260	≤3	36.11	28.35
	48	11				38.71	30.39
	49	12				41.31	32.43
	51	11	12	280	≤3	42.68	33.5
	52	12				45.48	35.7
	53	13				48.28	37.9
	54	11	13	300	≤3	46.78	36.7
	55	12				49.79	39.09
	56	13				52.79	41.44
	58	12	14	320	≤3	54.25	42.6
	59	13			≤3	57.25	45.09
	60	14			≤4	60.85	47.6
	61	12	15	340	≤3	58.84	46.2
	62	13			≤3	62.24	48.86
	63	14			≤4	65.54	51.5
	66.5	13	16.5	370	≤3	69.7	54.7
	67.5	14			≤4	73.4	57.6
	68.5	15			≤4	77.1	60.5
	72	14	18	400	≤4	81.48	63.96
	73	15				85.48	67.1
	74	16				89.48	70.2
	76.5	14	19.5	430	≤4	89.7	70.6
	77.5	15				94.19	73.9
	79.5	17				102.79	80.7
	81.5	19				111.39	87.4
	82.5	20				115	90.8

Shipbuilding Plate AH36 Dimensional Deviation

nominal thickness（mm）	minus deviation (mm)	The thickness deviation with following width (mm)
nominal thickness（mm）	minus deviation (mm)	> 1500 ~1700	> 1200 ~1500	> 1700 ~1800	> 1000 ~1200	> 1800 ~2000	> 2000 ~2300	> 2300 ~2500	> 2500 ~2600	2600 ~2800	> 2800 ~3000
>12~25 mm	-0.8 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.8	+1.0	+1.1	+1.2
>25~30 mm	-0.9 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.1	+1.2
>30~34 mm	-1.0 mm	+0.3 mm	+0.3 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.2	+1.3
>34~40 mm	-1.1 mm	+0.5 mm	+0.4 mm	+0.6 mm	+0.3 mm	+0.7 mm	+0.9 mm	+1.0	+1.1	+1.3	+1.4
>40~45 mm	-1.2 mm	+0.6 mm	+0.5 mm	+0.7 mm	+0.4 mm	+0.8 mm	+1.0 mm	+1.1	+1.2	+1.4	+1.

Marine Metal Sheet Grade a AH36 Shipbuilding Steel Plates Distributor in USA, LR Shipbuilding Steel Plate Supplier in Houston, 8mm Thickness Hot Rolled Steel Plates for Shipbuilding, CCS LR Grade A Steel Plates Weight Chart, Low DH36 High Strength Shipbuilding Steel Sheet Exporter in Houston , Shipbuilding Steel Plate Manufacturer in Los Angeles, FH36 Grade A Marine Shipbuilding Steel Plates Sizes in mm, Hot Rolled Steel A36 Sheets and Plates California

Shipbuilding Steel Sheet and Plate provide exceptional strength and durability, which is critical to withstanding the harsh elements of the sea. They improve corrosion resistance, extend the life of the container, and reduce maintenance costs. These materials are extremely versatile, contributing to the hull, deck and other important features. With excellent weldability and structural integrity, safety and reliability are ensured under extreme conditions. Additionally, steel plate ships are available in a variety of styles, meeting design and performance requirements. Their low cost and compliance with stringent industry standards makes them indispensable in modern shipbuilding.

Types of Shipbuilding Steel Sheet and Plate

DH40 Marine Grade Ship Steel Plates Dealer in Los Angeles, CCS LR Grade A Shipbuilding Steel Plates Supplier in Los Angeles, ASTM A131 Grade AH36 Shipbuilding Steel Sheet and Plates in Texas, DH36 Shipbuilding Steel Plates Size Chart, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates Price in California, ASTM A131 High Strength Shipbuilding Steel Plate Stockist in Houston , Ship Steel Plate Stockist in Houston, AH36 Steel Plate Supplier in Houston

Are Custom Sizes Available for Shipbuilding Steel Sheet and Plate?

Yes, we offer custom sizes for Shipbuilding Steel Sheet and Plate to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Shipbuilding Steel Sheet and Plate

You’ll find Shipbuilding Steel Sheets and Plates primarily used in constructing the hulls, decks, bulkheads, and structural sections of ships, boats, and offshore platforms. They’re designed to endure the harshest ocean conditions, heavy loads, and constant saltwater exposure, which calls for superior corrosion resistance and strength. These plates also play a crucial role in repair work, ship conversions, and the fabrication of marine equipment like barges and oil rigs. Their outstanding performance, weldability, and durability make them essential in shipyards, ensuring vessels meet stringent safety and performance standards throughout their operational lifespan.
