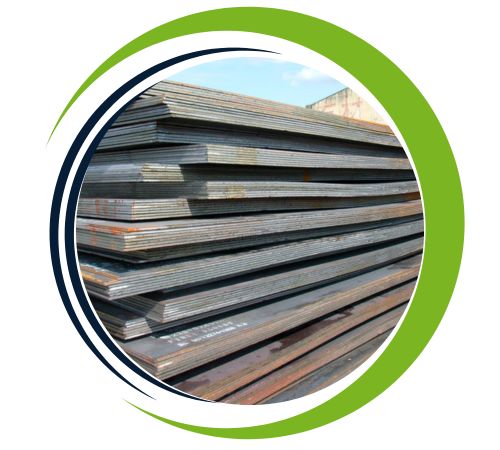

Nial Sheets and Plates is a reputable manufacturer and supplier based in Houston, USA, specializing in high-quality Manganese Steel sheets and plates designed for tough industrial applications. These plates are celebrated for their outstanding wear resistance and toughness, making them perfect for environments that face heavy impact and abrasion. Nial offers Manganese Steel products in a variety of grades and sizes, ensuring they meet international standards and specifications with precision. With a strong focus on performance, durability, and customer satisfaction, Nial caters to industries like mining, quarrying, construction, and steel recycling by providing dependable Manganese Steel sheets and plates customized to meet specific operational needs.
Manganese Steel, often known as Hadfield steel, contains about 11–14% manganese and 0.8–1.4% carbon, along with small amounts of silicon, phosphorus, and sulfur. This unique blend gives the material its remarkable toughness, ductility, and exceptional work-hardening characteristics. When it experiences impact or stress, the surface of the steel hardens significantly, boosting wear resistance while keeping a tough and ductile core. Typically, its mechanical properties include a tensile strength ranging from 850 to 1350 MPa, yield strength between 350 and 500 MPa, and an elongation of about 30 to 40%, depending on the treatment and thickness.
| Thickness | 5mm-150mm |
|---|---|
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm |
| Heat Treatment | Rolling/Normalised, N, Q+T |
| Impact tested | -52° C |
| C | Mn | Si | S | P |
| 1.20% | 12.00-14.00% | 0.15% | 0.020% | 0.020% |
| Tensile Strength N/mm² | Yield Strength N/mm² | Elongation % | Hardness Brinell |
| 880 | 320 | 40 | 200 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDRADS | EURONORM | DIN | ASTM | AFNOR | IS:2000 | IS:1993 | BS |
|---|---|---|---|---|---|---|---|
| GRADES | X120Mn13 | 1.3401 | A128 GR B2 / A128M | X120Mn13 | 276 | 2708 | 3100 |
Manganese steel sheets and plates are highly prized for their exceptional strength, hardness and abrasion resistance. They are known for their workability, strengthening under impact and tension, making them ideal for heavy duty applications such as mining, construction, and rail The high wear resistance of the alloy extends the life of the machines and components. Manganese steel is also corrosion and corrosion resistant, retaining its shape and function under extreme conditions. These features make it the top choice for high-impact, high-wearing environments.
Manganese Steel sheets and plates are extensively utilized in industries where high abrasion resistance is crucial. They’re commonly found in the production of crusher jaws, liners, conveyor buckets, and earthmoving equipment. Mining and quarry operations depend heavily on these plates for components that endure significant wear. Additionally, they find applications in the railway and construction sectors for parts like trackwork and hoppers. Thanks to their ability to harden upon impact, Manganese Steel plates are also ideal for protective uses, such as in ballistic steel armor and heavy machinery that faces continuous stress.
