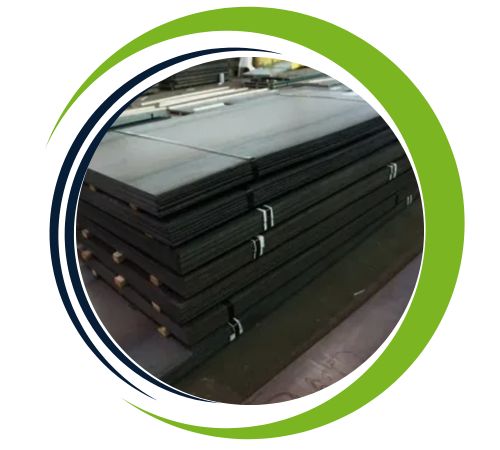

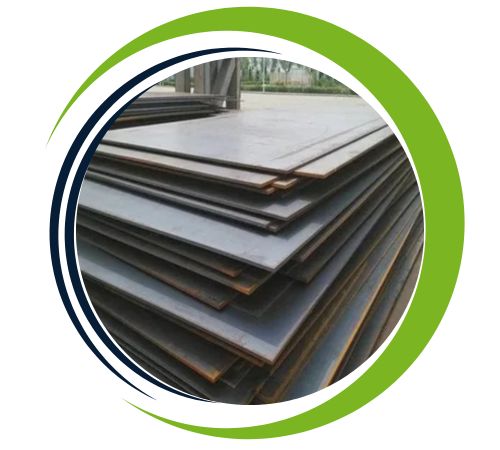

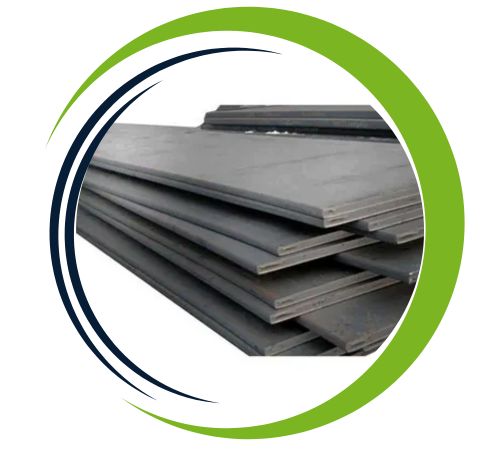

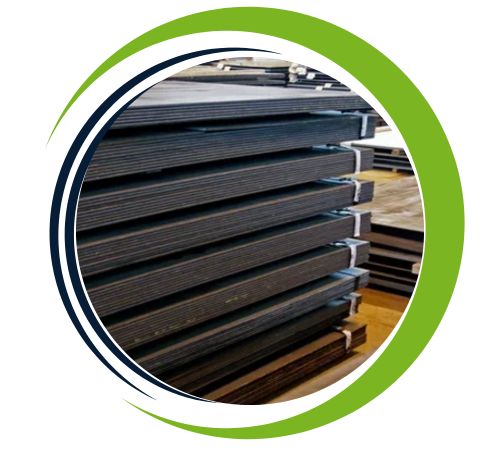

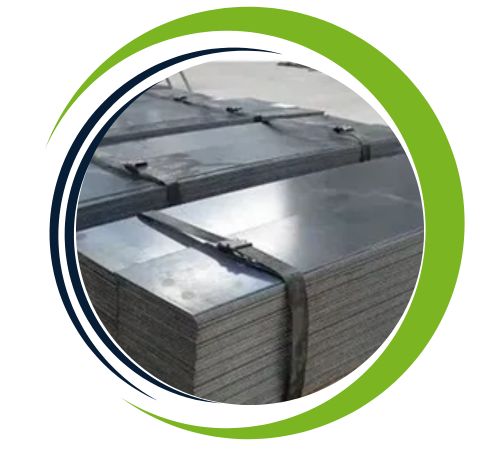

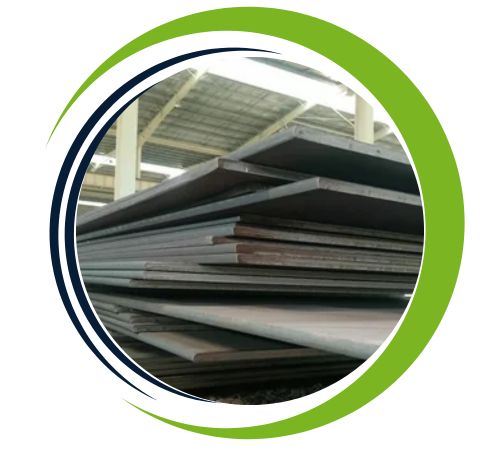

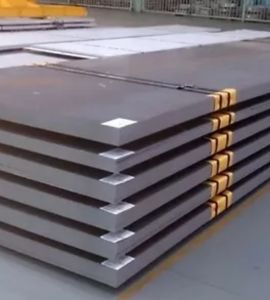

Nial Sheets and Plates is a premier manufacturer and supplier of superior-quality sheets and plates in Houston, USA. Specializing in high-performance materials, their product range includes the SA516 Gr 60-70 Dual TC Boiler Sheets and Plates, known for exceptional strength, weldability, and corrosion resistance. Designed for high-pressure and temperature environments, these plates meet stringent industry standards, making them ideal for boilers, pressure vessels, and heat exchanger applications across various sectors.
SA516 Gr 60-70 Dual TC Boiler Sheet and Plate are primarily carbon steel with manganese, silicon, and trace amounts of sulfur and phosphorus. These plates exhibit high tensile strength (415–585 MPa for Gr 60, 485–620 MPa for Gr 70) and excellent elongation (minimum 21-23%). They possess impact toughness at low temperatures and are ideal for pressure vessels and boilers. With dual certification, they meet the requirements for both grades, ensuring reliability for high-pressure applications. These plates offer superior weldability and resistance to cracking, making them versatile for critical environments.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1500mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| Grades | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 60 | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 70N | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Grades | Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 60 | 485-620 (70-90) | 260 (38) | 17 | 21 |
| 70N | 485-620 (70-90) | 260 (38) | 17 | 21 |
| Grades | British Standard | European Norm | ASTM/ASME | DIN |
| 60 | BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| 70N | BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Gr 60-70 Dual TC Boiler Sheets and Plates offer exceptional strength, durability, and reliability, making them ideal for high-pressure and high-temperature applications. These plates provide excellent weldability and toughness, even in low-temperature conditions, ensuring structural integrity in critical environments. They exhibit superior resistance to corrosion and cracking, enhancing longevity and safety in boiler and pressure vessel operations. Dual test certifications ensure compliance with stringent industry standards, offering versatility across various industries such as oil and gas, power generation, and chemical processing. Their cost-effectiveness further adds to their appeal.
SA516 Gr 60-70 Dual TC (Temperature Control) Boiler Sheet and Plates are widely used to construct pressure vessels, boilers, and storage tanks in oil and gas, petrochemical, and power generation industries. These materials are valued for their excellent weldability, toughness, and resistance to cracking, making them ideal for handling high-pressure and high-temperature environments. They provide durability and longevity, ensuring safety and reliability in demanding industrial applications.
