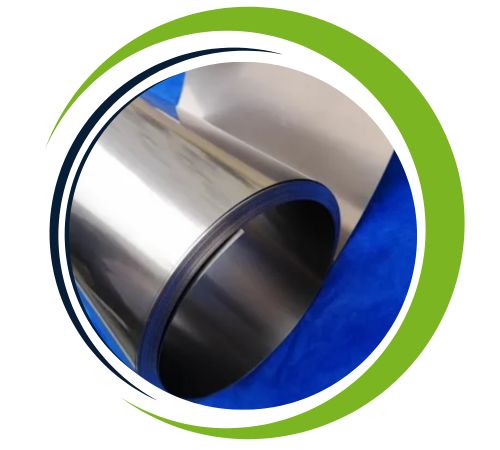

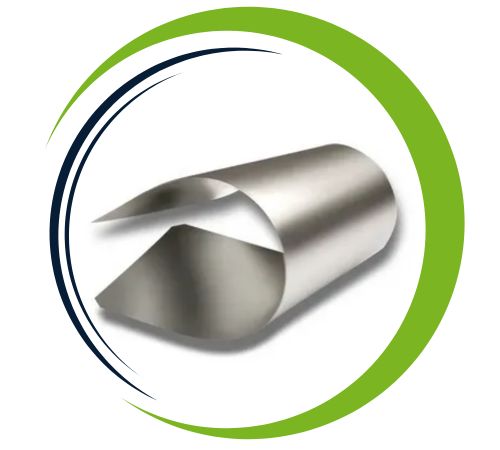

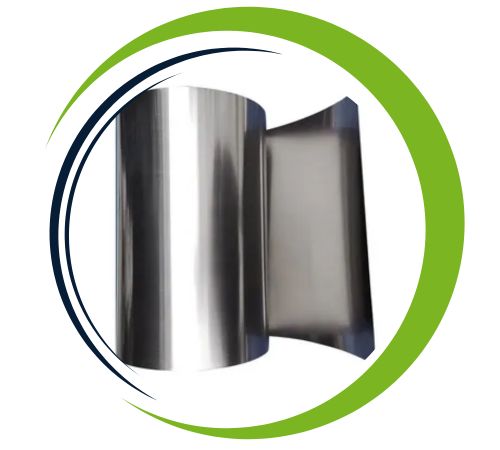

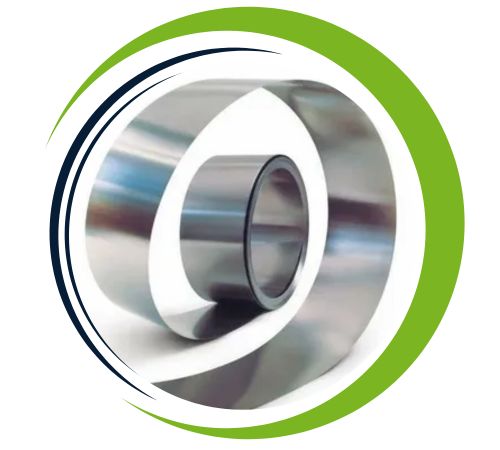

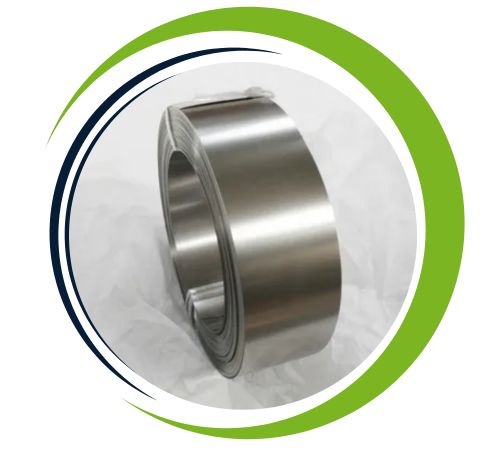

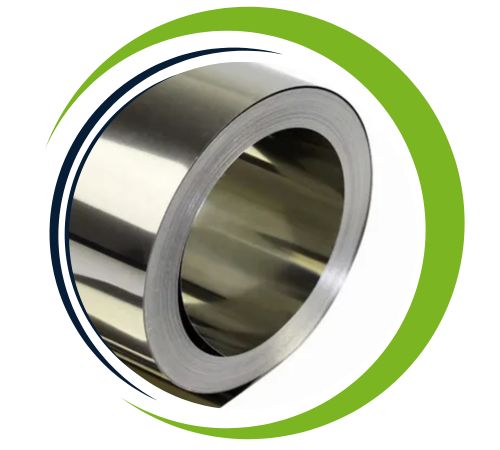

Nial Sheets and Plates is a reputable manufacturer and supplier of Titanium Grade 2 Foils based in Houston, USA. They’re dedicated to providing industries with top-notch, precision-engineered titanium solutions. With a focus on lightweight and corrosion-resistant materials, their Titanium Grade 2 Foils are celebrated for their excellent ductility, formability, and purity. Thanks to their advanced slitting and rolling facilities, Nial Sheets and Plates guarantees tight thickness tolerances, smooth surfaces, and a consistent supply to meet a variety of industrial needs. They cater to sectors like aerospace, chemical processing, medical, marine, and electronics, delivering reliable Titanium Grade 2 Foils that are tailored to meet demanding performance and fabrication standards.
Standards : ASTM B265 / ASME SB265
Width : 3.2mm – 1500mm
Form : Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 2 | 0.1 max | 0.3 max | 0.03 max | 99.2 min | 0.015 max | 0.25 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 2 Foils offer numerous advantages, making them a preferred choice across industries. They feature exceptional corrosion resistance, especially in aggressive environments like seawater and chemical processing. Lightweight yet strong, they provide an excellent strength-to-weight ratio, enhancing efficiency in applications requiring reduced weight. The foils also offer excellent weldability and formability, allowing ease in fabrication for complex designs. With superior biocompatibility, they are ideal for medical implants and devices. Additionally, their resistance to extreme temperatures ensures reliable performance in aerospace, automotive, and industrial applications, delivering durability and long-term value.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Titanium Grade 2 Foils to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 2 Foils find their place in applications where being lightweight, high-performing, and corrosion-resistant is essential. You’ll often see them used in aerospace shielding, heat exchanger fins, medical implants, surgical components, and linings for chemical processing. They’re a popular choice for creating flexible seals, gaskets, precision shims, and battery components in the electronics field. The marine industry also relies on them for seawater applications due to their impressive resistance to saltwater corrosion. Additionally, architectural designers appreciate Titanium Grade 2 Foils for decorative panels and cladding. Their ease of formability, biocompatibility, and weldability make them incredibly versatile for advanced engineering and industrial projects.
