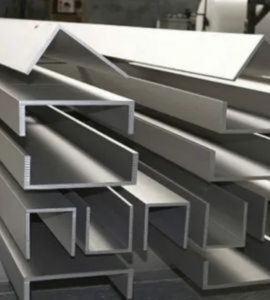

Nial Sheets and Plates, based in Houston, USA, is a reliable manufacturer and supplier of Titanium Grade 2 Channels, providing top-notch titanium products for both structural and industrial uses. This grade of titanium is celebrated for its impressive corrosion resistance, moderate strength, and exceptional formability, making it a go-to choice for industries that need dependable and lightweight materials. Nial Sheets and Plates offers channels in a variety of sizes, custom lengths, and finishes to meet the diverse needs of sectors like chemical processing, marine, medical, and aerospace. With a strong focus on precision, quality, and timely delivery, Nial is your trusted source for titanium solutions across the nation.
Titanium Grade 2 is a commercially pure titanium, containing about 99.2% titanium along with trace amounts of oxygen, nitrogen, carbon, hydrogen, and iron. It boasts remarkable corrosion resistance in both oxidizing and mildly reducing environments. With a tensile strength ranging from 344 to 552 MPa, a yield strength of around 275 MPa, and an elongation of up to 20%, it also has a low density, good ductility, and excellent weldability. These characteristics make it ideal for applications that demand high corrosion resistance, moderate strength, and easy fabrication, particularly in chemical and marine settings.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Grade 2 Titanium angle bar sizes : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More
Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle

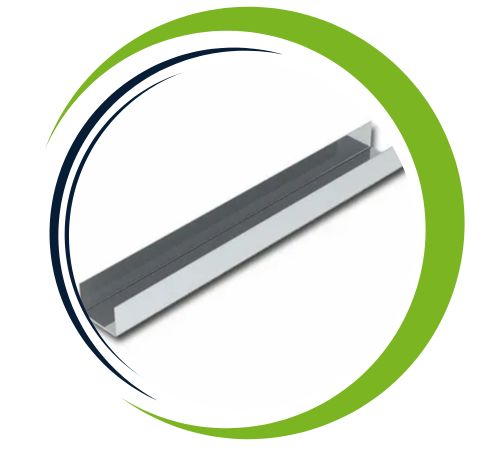

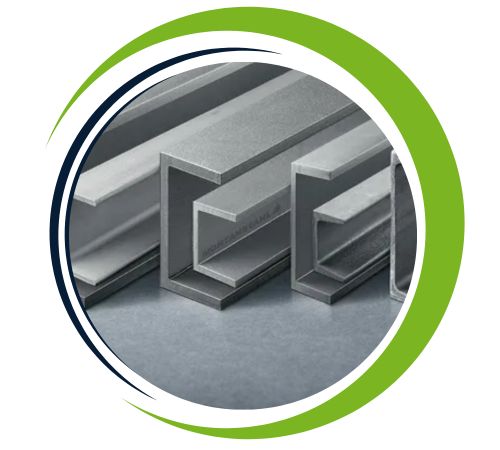

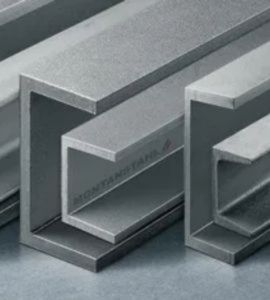

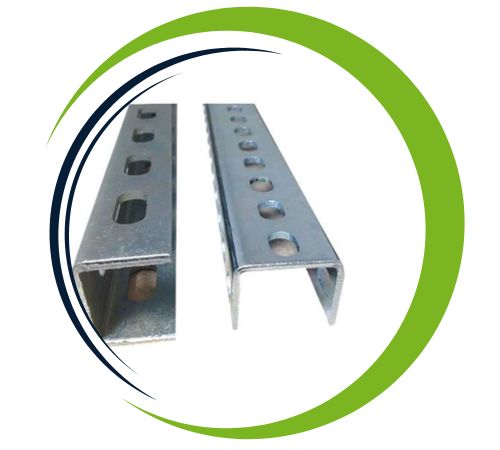

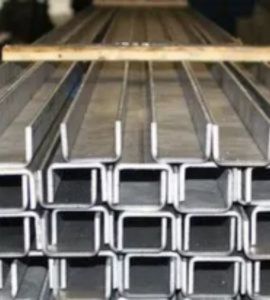

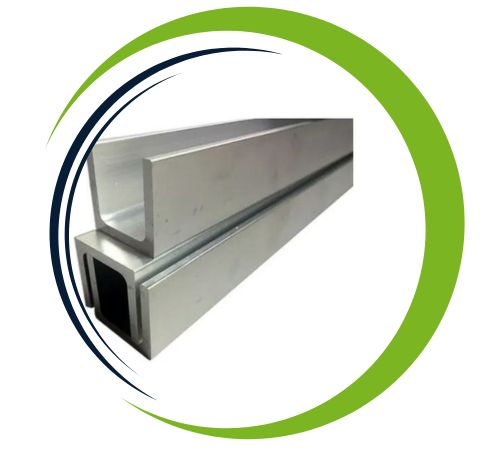

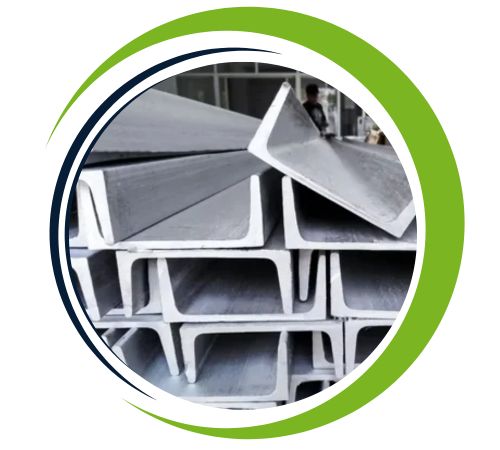

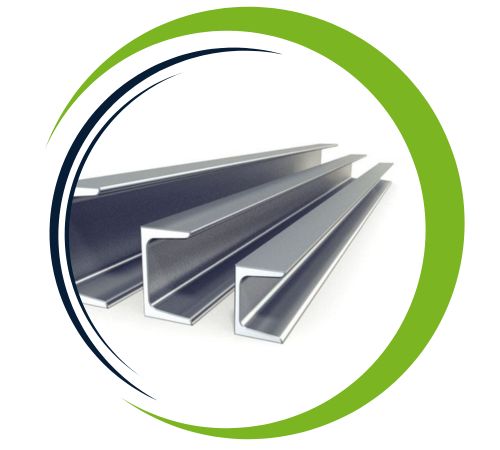

Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Element | C | Mn | N | H | Ti | Fe | O |
| Titanium Gr2 | 0.1 max | 2.00 max | 0.03 max | 0.015 max | 99.2 min | 0.3 max | 0.25 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 2 Channel offers several advantages, making it ideal for demanding applications. It is known for its excellent corrosion resistance, particularly in harsh environments like saltwater and acidic conditions. The material is lightweight yet strong, providing high strength-to-weight ratios. It also boasts outstanding weldability and formability, making it versatile for various manufacturing processes. Additionally, Titanium Gr 2 is biocompatible and non-reactive, ensuring safety in medical and aerospace industries. Its resistance to stress corrosion cracking, high durability, and long service life further enhance its appeal across numerous industries.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Gr.2 Angle Bar (kilogram/meter) | Titanium Gr 2 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Titanium Grade 2 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Grade 2 Channel to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@nialsheetsandplates.us.
Titanium Grade 2 Channels are extensively utilized in scenarios where corrosion resistance, formability, and strength-to-weight ratio are crucial. In the chemical industry, they find their place in heat exchangers, pressure vessels, and piping systems that handle corrosive materials. The marine industry employs them in seawater systems, desalination plants, and offshore structures. In aerospace, they are used for lightweight structural components and support frameworks. Additionally, Grade 2 channels are found in medical devices, architectural designs, and power generation systems. Their excellent biocompatibility, non-magnetic properties, and ability to endure harsh environments make them a versatile choice.
