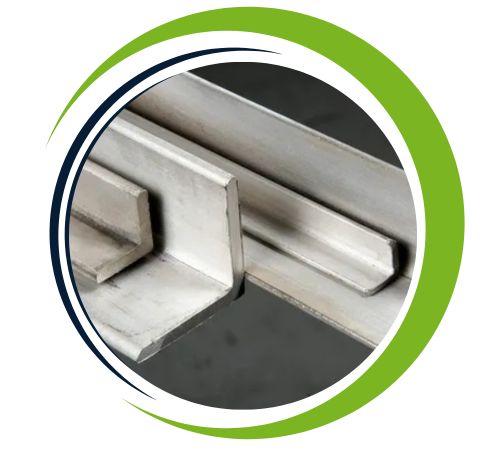

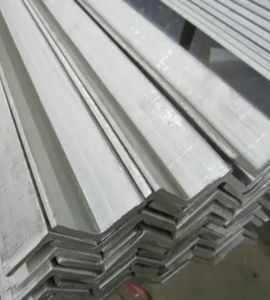

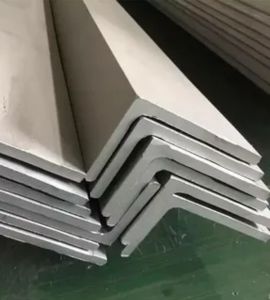

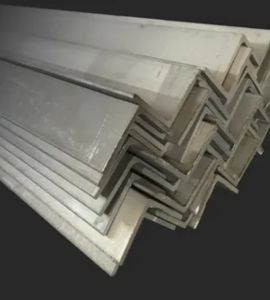

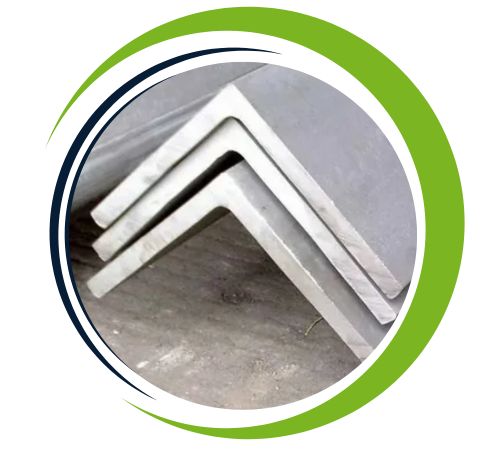

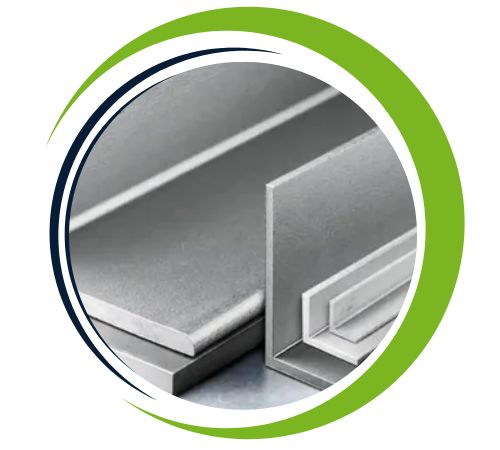

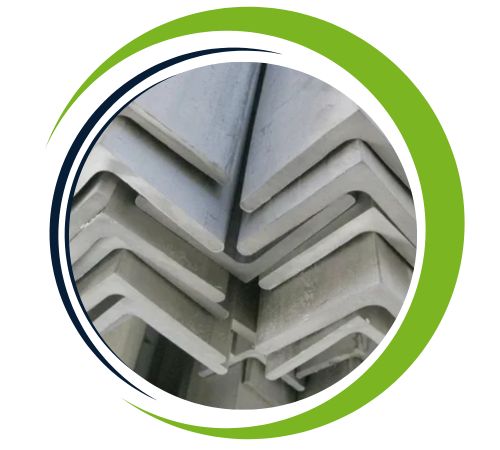

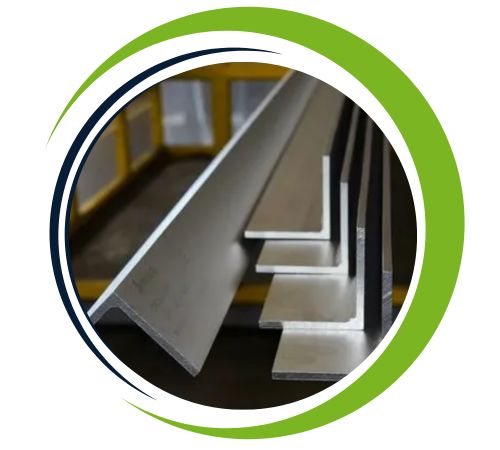

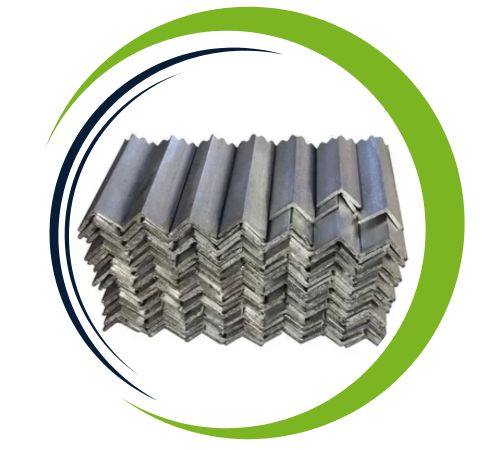

Nial Sheets and Plates, Houston, USA is a reliable manufacturer, supplier, and exporter of high-quality metal products. Since we have been in the business of manufacturing precision-cut sheets, plates, and bespoke metal solutions for quite some time now, we cater to those industries that require high-performance and durability. Among our popular products is the Super Duplex Steel S32760 Angle, which stands out for its very high strength, excellent corrosion resistance, and capability to perform in extreme environments. Manufactured to the highest standards in industry, our S32760 angles provide dependable performance and structural integrity, making them well-suited for severe applications in marine, chemical, and offshore sectors.
Super Duplex Steel S32760 (UNS S32760 / 1.4501) is a high-performance duplex stainless steel alloy containing ~25% Chromium, ~7% Nickel, ~4% Molybdenum, and ~0.3% Nitrogen with trace quantities of tungsten, copper, and manganese. This well-balanced composition provides excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, particularly in chloride-contaminated environments. The alloy provides a tensile strength of 800–1100 MPa, yield strength of 550–800 MPa, and elongation of 25–40%, which is suitable for harsh structural applications under high pressure and temperature.
Specifications : ASTM A790 / ASME SA790
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Super Duplex Steel S32760 Angle offers several key advantages, making it highly suitable for demanding applications. It provides exceptional resistance to corrosion, including pitting, crevice, and stress corrosion cracking, especially in harsh environments like seawater and chemical processing. The high strength of S32760 ensures durability under heavy loads and extreme conditions, while its resistance to high temperatures enhances its performance in high-pressure systems. Additionally, its excellent weldability and formability allow for easy fabrication. These features make S32760 an ideal choice for industries such as oil and gas, marine, and chemical processing.
Yes, we offer custom sizes for Super Duplex Steel S32760 Angle to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Super Duplex Steel S32760 Angles are extensively used in conditions where high strength and outstanding corrosion resistance are critical. In offshore oil and gas operations, they are applied in platforms, subsea facilities, and seawater and aggressive chemical-exposed piping systems. In chemical processing, chemical processing equipment such as heat exchangers, pressure vessels, and reactor supports apply the material. The material is also critical in marine applications, desalination plants, and power generation systems because of its high resistance to aggressive media. S32760 angles provide long-term durability, structural integrity, and low maintenance in severe service conditions.
