Nial Sheets and Plates is a well-respected manufacturer and supplier of top-notch Nickel Alloy Sheets and Plates, proudly based in Houston, USA. They’re recognized for offering a diverse selection of nickel-based alloys that cater to industries needing outstanding corrosion resistance, heat resistance, and mechanical strength for their demanding applications. With a commitment to strict quality control, precise processing, and dependable delivery, Nial ensures that their Nickel Alloy Sheets and Plates meet the highest international standards. Industries like chemical processing, aerospace, marine, and power generation rely on Nial Sheets and Plates for robust nickel alloy solutions that are crucial for structural integrity and high-temperature projects.
Nickel Alloy Sheets and Plates are crafted from alloys that boast a high nickel content—usually between 65% and over 99%—blended with elements such as chromium, iron, molybdenum, and copper to boost strength and corrosion resistance. These alloys deliver impressive tensile strengths ranging from 380 to 1000 MPa and yield strengths from 100 to 800 MPa, depending on the specific grade. They also maintain good ductility, exceptional toughness, and high thermal and electrical conductivity. Nickel alloys are reliable even in extreme temperatures, resisting oxidation and corrosion while providing excellent formability and weldability for intricate fabrication.
| Specification | ASTM B162 UNS N02200, ASME SB162 |
|---|---|
| Sizes | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Length | 2m, 2.44m, 3m, or as required |
| ASTM | ASTM B168 |
| AMS | AMS 5553 |

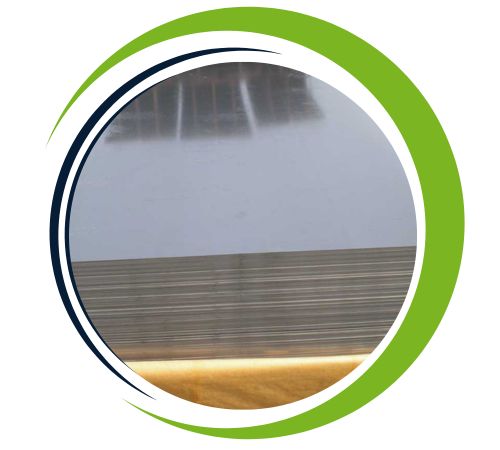

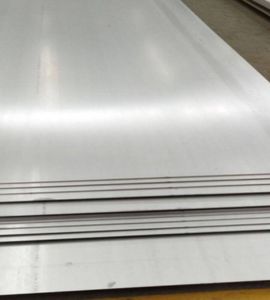

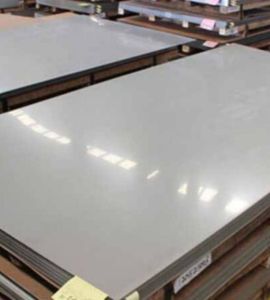

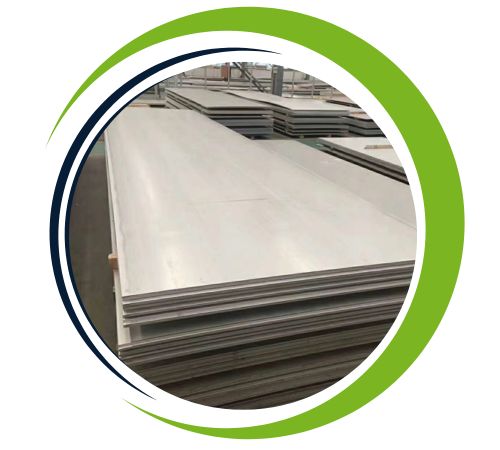

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

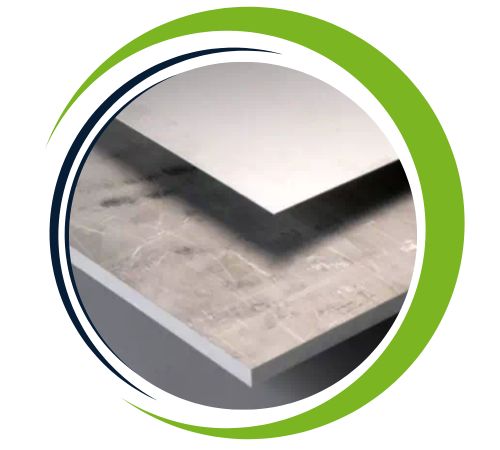

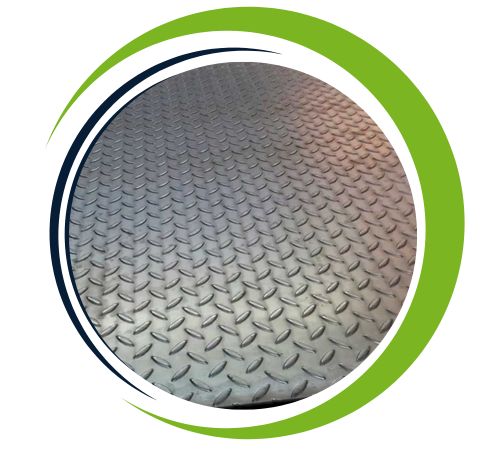

| Stock in form of | Nickel Plate, Sheet, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Material | JIS: N0, N2, N1, NW2200, NW2201, NW4400, NW5500, NW6002, etc DIN:H-Ni99.96, H-Ni99.95, H-Ni99.92, H-Ni99.90, H-Ni99.5, H-Ni99, etc |
| profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | S | Fe | Ni | Cu |
| Nickel Alloy 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.40 max | 99.0 min | 0.25 max |
| Nickel Alloy 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | AFNOR | EN | GOST |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | N-100M | Ni 99.2 | НП-2 |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | LC-Ni 99 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy Sheets and Plates offer exceptional corrosion resistance, making them ideal for harsh environments. They exhibit high-temperature strength, ensuring performance under extreme heat. Their durability and toughness contribute to long service life, while excellent oxidation resistance enhances reliability. With superior thermal and electrical conductivity, they support versatile industrial applications. Nickel alloys provide stress corrosion cracking resistance, improving structural integrity. These sheets and plates are versatile for various industries, including aerospace, marine, and chemical processing. Additionally, they are easily fabricated, allowing customization for specific project needs.
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
You’ll find Nickel Alloy Sheets and Plates commonly used in chemical processing plants, heat exchangers, pressure vessels, and reactors where superior resistance to corrosive acids and alkalis is essential. They play a vital role in aerospace engines, gas turbines, and jet components that need to endure high heat and stress. Additionally, nickel alloys are favored in marine and offshore equipment due to their ability to withstand seawater corrosion. The electronics and battery industries appreciate their conductivity and stability. Their versatility makes them perfect for power generation, oil and gas, and specialized fabrication where durability and performance in harsh conditions are paramount.
