Nial Sheets and Plates is a reputable manufacturer and supplier of top-notch Alloy 200 Sheets and Plates based in Houston, USA. Known for providing commercially pure nickel products, Nial caters to industries that require outstanding corrosion resistance, as well as high thermal and electrical conductivity, all while ensuring reliable performance in tough environments. With a strong focus on quality control, precise manufacturing, and prompt delivery, the company serves sectors like chemical processing, electronics, marine, and aerospace. Customers trust Nial Sheets and Plates for Alloy 200 Sheets and Plates that not only meet rigorous industry standards but also deliver consistent performance in critical structural, thermal, and fabrication applications.

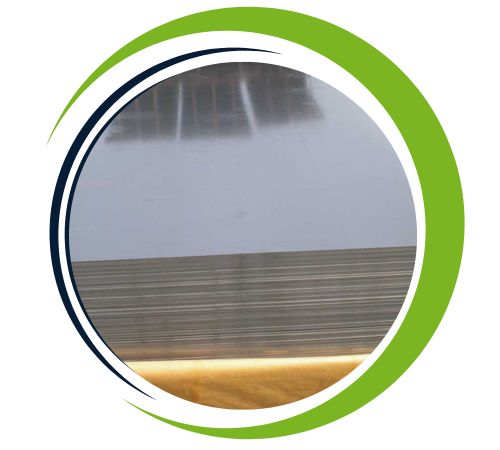

Alloy 200 Sheets and Plates are crafted from commercially pure nickel, boasting a nickel content of at least 99.6%. This composition provides excellent resistance to corrosion in both alkaline and neutral settings. The alloy is characterized by low gas content and low vapor pressure, along with impressive thermal and electrical conductivity. With a tensile strength of around 380 MPa and a yield strength close to 105 MPa, it also offers remarkable ductility and toughness. This combination makes it easy to form, weld, and fabricate while ensuring structural stability and performance across a wide range of temperatures.
| Specification | ASTM B 906/ASME SB 906, ASME Code Cases 1827 and N-253, SAE/AMS 5540, BS 3072NA14 and 3073NA14, DIN 17750, ISO 6208, EN 10095, MIL-DTL-23228. |
|---|---|
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| standards and approvals |
|
| Plasma profiles | As per customer’s drawings |
| Value added services | Laser cutting, Waterjet cutting, Plasma cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing. |
| VAS |
|
| Packing | Bundles with waterproof cloth outside or plywood box |
| Test | UT, SGS testing, TUV etc |
| Nickel 200 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | —2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy 200 sheets and plates offer exceptional corrosion resistance, particularly against alkalis, acids, and other harsh environments. Known for their excellent weldability and formability, they maintain good mechanical properties at low and high temperatures. The alloy exhibits high strength and durability, making it ideal for chemical processing, aerospace, and marine applications. Its excellent thermal and electrical conductivity ensures reliable performance in various industrial applications. Its non-magnetic properties add to its versatility, especially in sensitive equipment.
| Nickel Gauge Width and Length | Weight Lbs. per Sq. Ft. | Estimated Weight per Sheet |
|---|---|---|
| 7 ga. (.1874″) x 48 x 120 | 7.871 | 314.8 |
| 10 ga. (.135″) x 48 x 120 | 5.670 | 226.8 |
| 11 ga. (.120″) x 36 x 120 | 5.040 | 151.2 |
| 11 ga. (.120″) x 48 x 96 | 5.040 | 161.3 |
| 11 ga. (.120″) x 48 x 120 | 5.040 | 201.6 |
| 11 ga. (.120″) x 48 x 144 | 5.040 | 241.9 |
| 11 ga. (.120″) x 60 x 96 | 5.040 | 252.0 |
| 12 ga. (.105″) x 36 x 120 | 4.410 | 132.3 |
| 12 ga. (.105″) x 48 x 120 | 4.410 | 176.4 |
| 12 ga. (.105″) x 60 x 120 | 4.410 | 220.5 |
| 14 ga. (.075″) x 36 x 120 | 3.150 | 94.50 |
| 14 ga. (.075″) x 48 x 120 | 3.150 | 126.0 |
| 16 ga. (.060″) x 36 x 120 | 2.520 | 75.60 |
| 16 ga. (.060″) x 48 x 96 | 2.520 | 80.64 |
| 16 ga. (.060″) x 48 x 120 | 2.520 | 100.8 |
| 16 ga. (.060″) x 60 x 120 | 2.520 | 126.0 |
| 18 ga. (.048″) x 36 x 120 | 2.016 | 60.48 |
| 18 ga. (.048″) x 48 x 120 | 2.016 | 80.64 |
| 20 ga. (.036″) x 36 x 120 | 1.512 | 45.36 |
| 20 ga. (.036″) x 48 x 120 | 1.512 | 60.48 |
| 22 ga. (.030″) x 36 x 120 | 1.260 | 37.80 |
| 22 ga. (.030″) x 48 x 96 | 1.260 | 40.32 |
| 22 ga. (.030″) x 48 x 120 | 1.260 | 50.40 |
| 24 ga. (.024″) x 36 x 120 | 1.008 | 30.24 |
| 24 ga. (.024″) x 48 x 120 | 1.008 | 40.32 |
| 26 ga. (.018″) x 36 x 120 | .7560 | 22.68 |
| 26 ga. (.018″) x 48 x 120 | .7560 | 30.24 |
| 28 ga. (.015″) x 36 x 120 | .6300 | 18.90 |
Alloy 200 Sheets and Plates find extensive use in chemical processing equipment, caustic soda production, and synthetic fiber manufacturing, where high purity and alkali resistance are crucial. They are particularly well-suited for food processing, salt production, and marine applications due to their exceptional resistance to seawater corrosion. The electronics industry relies on Alloy 200 for battery components, electrical conductors, and shielding materials, thanks to its superior thermal and electrical conductivity. Additionally, it is utilized in aerospace, power generation, and reactor components, where reliability, stability, and resistance to harsh chemicals and high temperatures are vital for safe, long-lasting service.
