ABS EH36 Sheet and Plates

Nial Sheets and Plates, located in Houston, USA, stands out as a premier manufacturer and supplier of high-quality ABS EH36 Sheets and Plates, specifically crafted for demanding marine and offshore structural applications. These plates meet the rigorous standards set by the American Bureau of Shipping (ABS), ensuring they provide exceptional weldability, toughness, and resilience against harsh marine environments. Nial offers a variety of ABS EH36 plates in different sizes and thicknesses, catering to the diverse needs of shipbuilding and offshore fabrication. With a strong commitment to quality, durability, and performance, Nial supplies materials that are trusted in maritime and structural engineering projects around the globe.

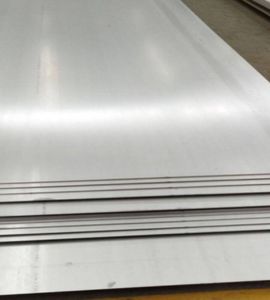

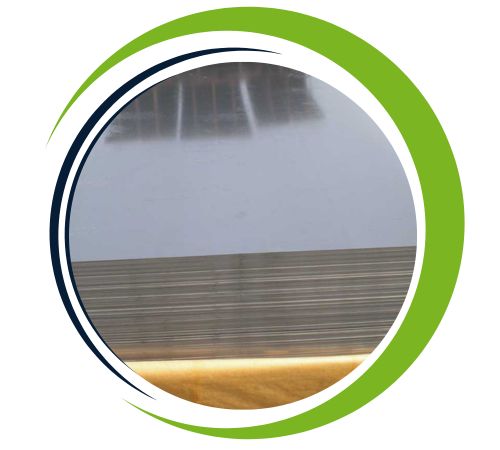

ABS EH36 Cold Rolled Plates

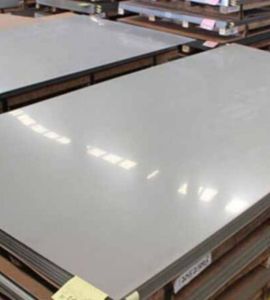

ABS EH36 Hot Rolled Plates

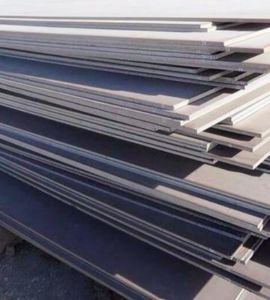

ABS EH36 Shim Sheets

ABS EH36 Plates Manufacturer in Los Angeles, ABS EH36 Plates & Sheets in Texas, ABS EH36 Mirror Finish Plates Supplier in Houston, ABS EH36 Polished Plates Exporter in Houston , ABS EH36 Chequered Plates Price List in United Kingdom, ABS EH36 Cold Rolled Plate Distributor in Texas, ABS EH36 Clad Plates and Sheets Supplier in Los Angeles, ABS EH36 Sheet and Plate Distributor in USA, ABS EH36 Perforated Plate Sizes in mm

The composition of ABS EH36 Sheets and Plates includes carbon (≤0.21%), manganese (0.50–1.60%), silicon (0.10–0.50%), phosphorus (≤0.035%), sulfur (≤0.035%), along with small amounts of other strengthening elements. These high-tensile-strength plates are either normalized or rolled under thermo-mechanical control. Their mechanical properties boast a minimum yield strength of 355 MPa, tensile strength between 490–620 MPa, and impressive impact resistance, even in low temperatures. ABS EH36 is known for its outstanding toughness and weldability, making it ideal for critical structural applications in challenging marine environments where strength and reliability are essential.

ABS EH36 Sheet and Plates Specification

ABS EH 36 Plates
Item	shipbuilding Steel Plate
Specification	ASTM A131 / A131M
Width	1200mm to 4000mm
Thickness	4mm to 260mm,
Length	3000mm to 18000mm.
ABS DH 36 Plates
Width	1500mm to 4020mm
Thickness	6mm to 240mm
Length	3000mm to 27000mm
Surface Treatment	With anti-rust painting.
UT test	S0E1, S1E2, S2E3 and other standard which is required by customers.

ABS EH36 Sheet and Plates Chemical Composition

Grade	Si %	C %	P %	Mn %	S %	AL %	V %	Cr %
ABS EH36	0.1 to 0.5	0.180	0.035	0.90 to 1.6	0.035	0.015	0.05 to 0.10	0.200
	Mo %	Cu %	Ni %	Nb %	Ti %
	0.080	0.350	0.400	0.02-0.05	0.020

ABS EH36 Sheet and Plates Mechanical Properties

Grade	Elongation (%)	MinYield(Mpa)	Thickness(mm)	Tensile(Mpa)	Min Impact Energy
ABS Grade EH36	21%	Min 355Mpa	8mm-50mm	490-620Mpa	-40	34J
	21%	Min 355Mpa	51mm-70mm	490-620Mpa	-40	41J
	21%	Min 355Mpa	71mm-100mm	490-620Mpa	-40	50J
The min impact energy is longitudinal energy

ABS EH36 Clad Sheets Distributor in USA, ABS EH36 Perforated Plates Supplier in Houston, ABS EH36 Perforated Sheet Weight Chart, ABS EH36 Plate Exporter in Houston , ABS EH36 Polished Sheets Manufacturer in Los Angeles, ABS EH36 Shim Sheet and Plate Price List in United Kingdom, ABS EH36 Chequered Plates Sizes in mm, ABS EH36 Hot Rolled Plate Distributor in Texas, ABS EH36 Sheets and Plates California.

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest ABS EH36 Sheet and Plates Manufacturer and Exporter in Houston, USA

Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

ABS EH36 Sheets Price in California, ABS EH36 Hot Rolled Weight Chart, ABS EH36 Cold Rolled Supplier in United Kingdom, Stockist of ABS EH36 Cold Rolled Sheets in Houston , ABS EH36 Perforated Sheet Supplier in USA, ABS EH36 Perforated Plates Price List in Houston, ABS EH36 Perforated Plates Supplier in Houston , ABS EH36 Chequered Plates Exporter in Los Angeles, ABS EH36 Polished Plates Exporter in USA, ABS EH36 Perforated Plates Exporter in Texas, ABS EH36 Sheet and Plate in California

ABS EH36 sheet and plates offer numerous advantages, including exceptional strength and durability, making them ideal for heavy-duty marine applications. Their high yield strength (355 MPa) and tensile strength (490-620 MPa) ensure reliable performance under extreme conditions. These plates also exhibit excellent weldability, ensuring easy fabrication for complex designs. Their resistance to corrosion and low-temperature impact makes them suitable for challenging environments, such as offshore structures, shipbuilding, and other maritime projects. Additionally, ABS EH36 offers good fatigue resistance, ensuring long-term performance and reduced maintenance costs.

Types of ABS EH36 Sheet and Plates

ABS EH36 Sheets Dealer in Los Angeles, ABS EH36 Plates Supplier in Los Angeles, ABS EH36 Sheets in Texas, ABS EH36 Plates Size Chart, ABS EH36 Sheet Price in California, ABS EH36 Plates Supplier in United Kingdom, ABS EH36 Sheet Stockist in Houston , ABS EH36 Sheets and Plates Exporter in USA, ABS EH36 Sheet Stockist in Houston, ABS EH36 Plates Supplier in Houston

Are Custom Sizes Available for ABS EH36 Sheet and Plates?

Yes, we offer custom sizes for ABS EH36 Sheet and Plates to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

ABS EH36 Sheet and Plates Equivalent Grades

Grade	DNV	GL	LR	BV	CCS	NK	KR	RINA
ABS EH36	NV E36	GL-E36	LR/EH36	BV/EH36	CCS/E36	K E36	R E36	RI/E36

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of ABS EH36 Sheet and Plates

ABS EH36 Sheets and Plates find extensive use in the shipbuilding and offshore industries, playing a crucial role in constructing hulls, decks, bulkheads, and superstructures for both naval and commercial vessels. They are also integral to offshore platforms, oil rigs, floating production systems, and subsea structures that demand exceptional strength and environmental resistance. Beyond marine uses, EH36 plates are utilized in heavy machinery, structural frames, and equipment designed to bear heavy loads. Their durability, impact resistance, and adherence to ABS certification make them a top choice for vital infrastructure in both maritime and industrial sectors.
