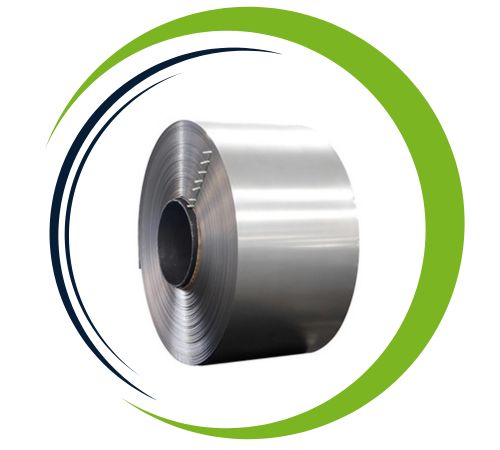

Nial Sheets and Plates is a prominent manufacturer and supplier based in Houston, USA, specializing in high-quality stainless steel products. The company offers an extensive range of stainless steel foils, including Stainless Steel 321 Foils, known for their exceptional resistance to corrosion and excellent performance in high-temperature environments. Stainless Steel 321 is stabilized with titanium, making it highly resistant to intergranular corrosion and ideal for applications involving welding and heat exposure. Nial Sheets and Plates provides precision-engineered, durable foils that meet the needs of diverse industries, offering reliable solutions for demanding applications worldwide.
UNS S32100 Foils primarily consist of iron, with key alloying elements including 17-19% chromium (Cr) and 9-12% nickel (Ni). It also contains up to 0.8% titanium (Ti), which stabilizes the material against sensitization and intergranular corrosion. Other trace elements such as manganese (Mn), silicon (Si), carbon (C), sulfur (S), and phosphorus (P) are present in small amounts. The mechanical properties of 321 Foils include a tensile strength of approximately 520-720 MPa, yield strength of 205 MPa, and an elongation of 40-50%. It also exhibits excellent weldability and resistance to high temperatures.
| Item | Stainless Steel 321 foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |
| Surface | the surface and finish of stainless steel 321 foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
DIN 1.4541 Foils offer several advantages, particularly in high-temperature applications. The addition of titanium ensures exceptional resistance to intergranular corrosion, making it ideal for welded structures exposed to heat. Its excellent oxidation and corrosion resistance allow it to perform reliably in harsh environments. Stainless Steel 321 also offers superior strength, durability, and resistance to scaling, making it suitable for a wide range of industrial applications. The material is highly versatile, with excellent formability and weldability, ensuring its adaptability for use in heat exchangers, reactors, furnaces, and chemical processing equipment.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
SS 321 Foils are widely used in high-temperature and corrosive environments. They are commonly applied in heat exchangers, furnaces, reactors, and combustion chambers, where resistance to oxidation and intergranular corrosion is crucial. Due to their excellent weldability, 321 foils are ideal for welded components in the aerospace, automotive, and chemical industries. They are also used in exhaust systems, chemical processing equipment, and thermal power plants. The material’s ability to withstand extreme temperatures and aggressive environments makes it suitable for industries requiring reliable performance under stress and heat.
