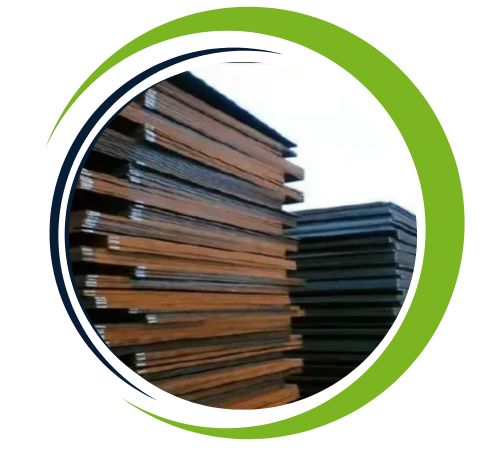

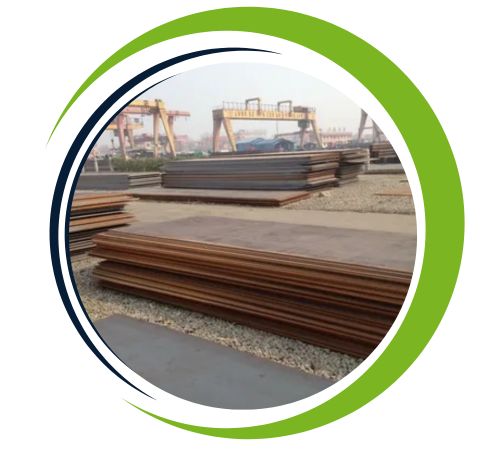

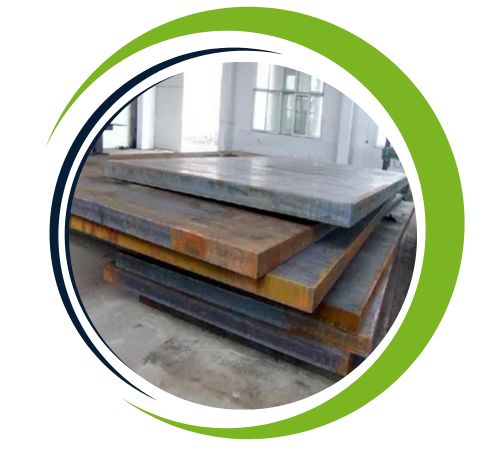

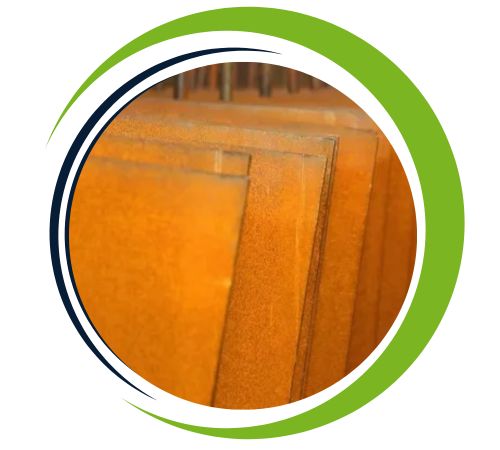

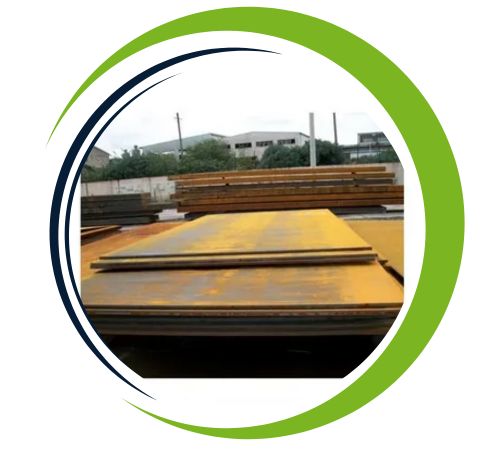

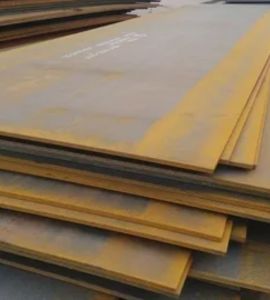

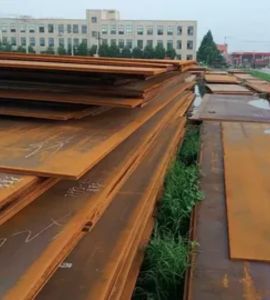

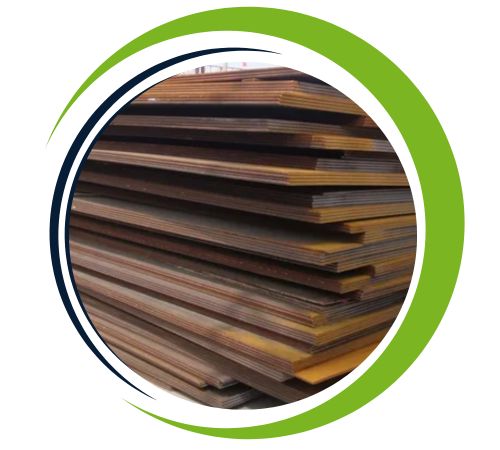

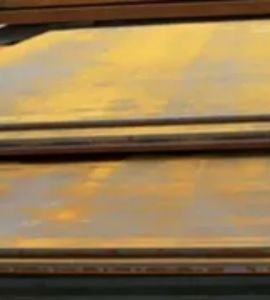

These Sailcor® Corten steel sheets and plates generally adhere to ASTM A588 or A606 Grade 4, with a chemical makeup of about 0.12–0.20% carbon, 0.25–1.00% manganese, and 0.30–0.65% silicon, along with small amounts of phosphorus and sulfur. The addition of copper (0.25–0.40%), chromium (0.50–1.25%), and nickel (0.65–1.25%)—and sometimes vanadium—boosts their weather resistance and strength. Mechanically, they typically provide a minimum yield strength of 50 ksi (345 MPa), a tensile strength of around 70 ksi (485 MPa), and an elongation of about 22%, ensuring excellent toughness and formability, along with resistance to atmospheric corrosion and fatigue.
| Thickness | Width | Length |
|---|---|---|
| 3 to 500 mm | 1000 to 3500 mm | 1000 to 12000 mm |
| Process | Application | Form |
| hot and cold rolled | building facaded, railway wagons etc. | coil, plate, sheet |
| ASTM 588 GR A | IRSM 41 -97 | Corten – A Plates | ASTM 242 TYPE -1 | |
|---|---|---|---|---|
| Manganese | 0.80-1.25 | 0.25-0.45 | 0.20-50 | 1.00 |
| Carbon, Max | 0.19 | 0.10 | 0.12 | 0.15 |
| Phosphorus | 0.04 | 0.07-0.11 | 0.07-0.15 | 0.15 |
| Silicon | 0.30-0.65 | 0.28-0.72 | 0.25-0.75 | 0.25-0.40 |
| Aluminimum | … | 0.030 | – | – |
| Sulphur, max | 0.05 | 0.030 | 0.030 | 0.05 |
| Chromium | 0.40-065 | 0.30-0.50 | 0.50-1.25 | – |
| Nickel, max | 0.40 | 0.20-0.49 | 0.65 | – |
| Copper | 0.25-0.40 | 0.30-0.39 | 0.25-0.55 | 0.20 min |
| Molybdenum, max | – | – | – | – |
| Vanadium | 0.02-0.10 | 0.050 | – | – |
| Min. Yield Point | Tensile Strength | Elongation | |
| IRSM 41- 97 | [340 MPa] | [480 MPa] | 21% min |
| ASTM 588 GR. A | [345 MPa] | [485 MPa] | 21% min |
| CORTEN A | [355 MPa] | [470 – 630 MPa] | 20 % min |
| ASTM 242 TYPE -1 | [345 MPa] | [480 MPa] | 16% min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Sailcor Corten Steel Sheet and Plate offers several advantages, including exceptional corrosion resistance due to its unique alloy composition, which forms a protective patina over time. This feature minimizes maintenance and extends the material’s lifespan in outdoor environments. It provides high tensile strength, ensuring durability and reliability in structural applications. Sailcor Corten Steel also boasts excellent weldability and formability, making it versatile for various architectural and industrial uses. Its aesthetic appeal, with a weathered, rustic look, adds visual charm to projects while maintaining long-term performance.
Yes, we offer custom sizes for Sailcor Corten Steel Sheet and Plate to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
You’ll find Sailcor® Corten steel sheets and plates used in a variety of applications, including architectural facades, bridges, sculptures, monuments, and outdoor installations where a rugged yet appealing look is essential. They’re also great for industrial landscaping features, retaining walls, shipping containers, and marine structures. Thanks to the self-protecting rust layer, this steel guarantees long-lasting performance even in tough climates, making it a fantastic choice for infrastructure projects, decorative designs, and structural applications that require minimal upkeep and maximum durability.
