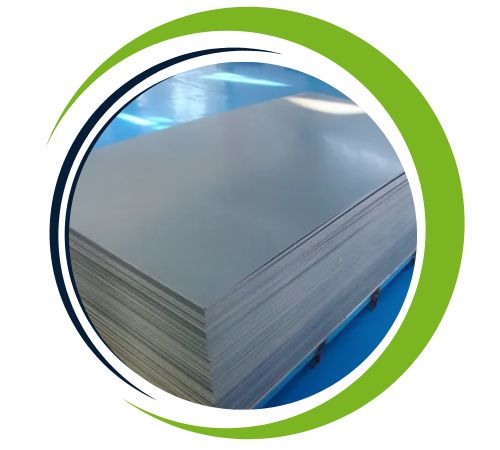

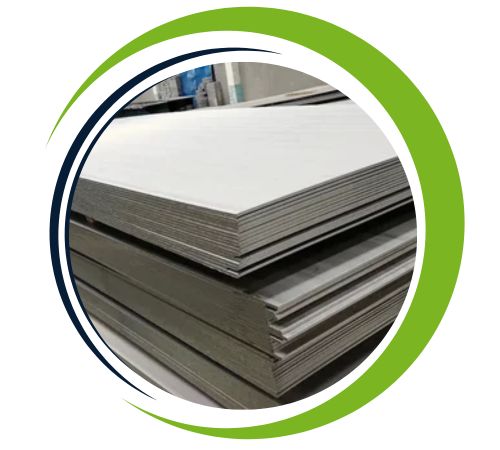

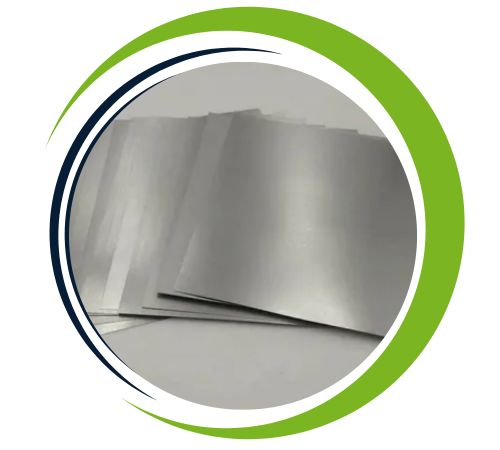

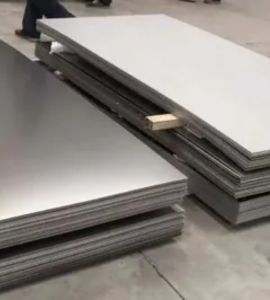

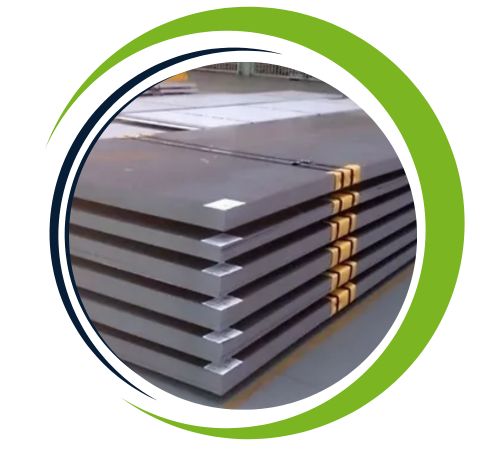

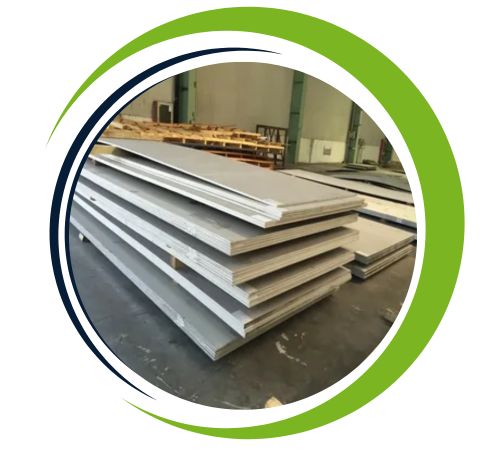

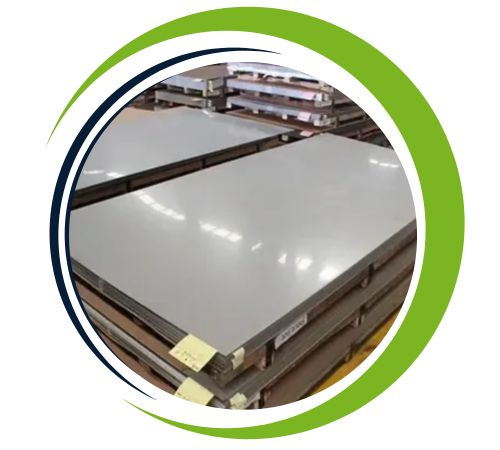

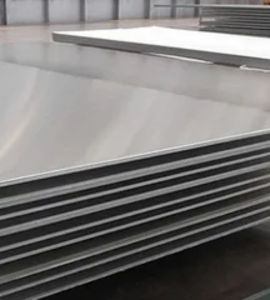

Nial Sheets and Plates, based in Houston, USA, is a reliable manufacturer and supplier of high-performance metal plates and sheets, offering a broad range of industrial applications. Famed for accuracy in engineering and compliance with stringent quality levels, the company provides assured solutions customized to meet the requirements of aerospace, automobile, and power generation industries. Among its specialty products is Nimonic 90 Sheets and Plates, a heat-resisting alloy of high strength intended for severe high-temperature applications. Committed to durability, customization, and customer satisfaction, Nial offers exceptional products that satisfy the most demanding performance standards in harsh working conditions.
Nimonic 90 Sheets and Plates consist of a nickel-chromium-cobalt alloy with Ni (≥60%), Cr (18–21%), and Co (15–21%), together with Ti (2–3%) and Al (1–2.5%). These trace elements add up to improved oxidation resistance, thermal stability, and creep strength. Mechanically, the alloy provides a tensile strength of 965 MPa, yield strength of 690 MPa, and performs exceptionally well up to 920°C. Nimonic 90‘s higher fatigue resistance, stress rupture strength, and resistance to thermal stress allow it to be suitable for components subject to severe heat and pressure in advanced engineering equipment.
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Ni | Cr | Co | Ti | Al | C | Si | Cu | Fe | Mn | B | S | Zr | Pb |
| Nimonic 90 | Bal | 18-21 | 15-21 | 2-3 | 1-2 | 0.2 max | 1.0 max | 0.2 max | 1.5 max | 1.0 max | 0.02 max | 0.015 max | 0.15 max | 0.0020 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 1150 MPa | 725 MPa | 30% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Nimonic 90 Sheets and Plates offer exceptional advantages for high-performance applications. They exhibit superior heat resistance, making them suitable for extreme temperatures up to 920°C. The alloy’s high tensile and yield strength ensures durability under mechanical stress. Excellent oxidation and corrosion resistance enhance longevity in challenging environments. With superior creep and fatigue resistance, they are ideal for high-stress and cyclic-load conditions. Lightweight yet robust, these sheets and plates are widely used in aerospace, power generation, and automotive industries, delivering reliability and efficiency in demanding engineering and industrial applications.
| WEIGHT PER NIMONIC SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Yes, we offer custom sizes for Nimonic 90 Sheets and Plates to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Nimonic 90 Sheets and Plates find extensive application in high-stress, high-temperature conditions, providing high strength and resistance to oxidation. In the aerospace field, they are employed for jet engine components, turbine blades, and combustion chambers. In the power generation process, they play a critical role in boiler components, heat exchangers, and gas turbines. In the automotive field, Nimonic 90 is utilized in exhaust valves of high-performance engines. Its resistance to creep and corrosion protection also qualify it for application in nuclear reactors, chemical processing facilities, and other thermally aggressive environments in order to provide operational safety and long-term reliability.
