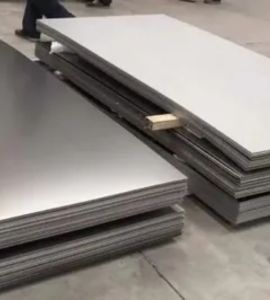

Nial Sheets and Plates is a reputable manufacturer and supplier of top-notch Nimonic 80A Sheets and Plates based in Houston, USA. Known for providing high-performance nickel-chromium alloys, Nial caters to industries that demand exceptional high-temperature strength, creep resistance, and oxidation resistance. With a strong commitment to international standards, meticulous fabrication, and dependable delivery, the company supplies Nimonic 80A Sheets and Plates to sectors such as aerospace, power generation, and gas turbine manufacturing. Customers trust Nial Sheets and Plates for robust, high-quality Nimonic 80A solutions that consistently perform well in extreme temperatures and stressful conditions.
Nimonic 80A Sheets and Plates are made from nickel-chromium alloys, containing about 76% nickel, 19–21% chromium, along with titanium and aluminum for precipitation hardening. This unique blend offers remarkable high-temperature strength, oxidation, and corrosion resistance, even up to around 815°C. Nimonic 80A boasts a tensile strength of approximately 965 MPa and a yield strength of about 690 MPa, along with impressive creep and fatigue resistance. Its well-rounded properties make it perfect for components that face high heat and stress, ensuring long-lasting stability and reliability in critical high-temperature applications.
| Standards : | ASTM B637 / ASME SB637 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets and Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets and Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Al | B | C | Cr | Co | Cu | Fe | Mn | Ni | P | Si | S |
| Nimonic 80A | 1 – 1.8 | 0.008 max | 0.1 max | 18 – 21 | 0.2 max | 0.2 max | 3 max | 1 max | Balance | 0.045 max | 1 max | 0.015 max |
| Grade | Condition | Ultimate Tensile Strength MPA | Yield Strength MPA | Elongation on 4D (min) | Hardness min |
| Nimonic 80A | Solution Annealed & Precipatation Treated (aged) | 994 | 616 | 20 | 300 HV |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Nimonic 80A sheets and plates offer several advantages, making them ideal for high-performance applications. They provide exceptional heat and oxidation resistance, maintaining strength at elevated temperatures up to 900°C. The alloy’s excellent creep and fatigue resistance ensure long-lasting performance in demanding environments. Nimonic 80A also exhibits superior corrosion resistance, especially in high-temperature and harsh conditions, making it suitable for aerospace, gas turbines, and industrial applications. Its high tensile and yield strength, along with good weldability, enhance its versatility and reliability in critical components subjected to extreme stress.
| WEIGHT PER NIMONIC SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Yes, we offer custom sizes for Nimonic 80A Sheets and Plates to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
These Nimonic 80A Sheets and Plates find extensive use in aerospace turbine blades, rings, and combustion chamber components, where high creep resistance and strength at elevated temperatures are crucial. They’re also utilized in gas turbines, nuclear reactors, and high-temperature bolts and fasteners. Various industries rely on Nimonic 80A for exhaust valves, springs, and other high-stress components that operate in harsh thermal environments. The alloy’s outstanding oxidation and corrosion resistance guarantees dependable performance in aggressive atmospheres. Plus, its good workability and weldability make it ideal for precision-fabricated parts that require strength, stability, and durability under extreme heat and mechanical stress.
