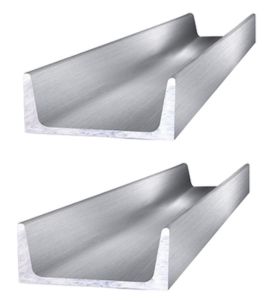

Nial Sheets and Plates is a well-respected manufacturer and supplier located in Houston, USA, specializing in top-notch Monel 400 channels that are celebrated for their remarkable strength and resistance to corrosion. This nickel-copper alloy, Monel 400, shines in marine, chemical, and high-temperature settings, delivering outstanding performance. Nial offers Monel 400 channels in a variety of sizes and custom profiles, ensuring they meet precise tolerances and adhere to ASTM and international standards. With a solid reputation in industries like oil & gas, shipbuilding, and chemical processing, Nial is committed to providing reliable solutions that prioritize quality, durability, and timely delivery for essential structural and support applications.
Monel 400 consists of about 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, carbon, and silicon. This alloy is known for its exceptional resistance to corrosion, especially in seawater, hydrofluoric acid, and alkaline conditions. On the mechanical side, Monel 400 boasts a tensile strength ranging from 480 to 620 MPa, a yield strength of at least 170 MPa, and an elongation of up to 35%, depending on how it’s processed. It maintains impressive strength and ductility across a broad temperature range and is recognized for its good weldability and moderate machinability, making it a great fit for various structural and industrial uses.
| Specifications | : | ASTM B164 / ASME B164 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel 400 Channel | : | 40mm*20mm~300mm*300mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | C Channel, U Channel, Channels |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 2.50 max | 63.00 min | 0.024 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40% |
Monel 400 Channel offers numerous advantages, including excellent corrosion resistance in marine and chemical environments, making it ideal for harsh conditions. Its high tensile and yield strength ensure durability and reliability under mechanical stress. The alloys resistance to acidic and alkaline substances enhances its versatility in diverse industrial applications. Monel 400 exhibits excellent thermal conductivity and stability, performing well in high-temperature environments. Additionally, it resists stress corrosion cracking and pitting, ensuring a long service life. Its machinability and weldability further simplify fabrication and installation processes.
Yes, we offer custom sizes for Monel 400 Channel to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | MATERIAL NO. | US | HE | GOST | BS | AFNOR | IN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | MNJMc 28-2.5-1.5 | THAT 13 | NO-30M | NiCu30Fe |
Monel 400 channels find applications in numerous industries that require both corrosion resistance and high mechanical performance. In marine engineering, they are perfect for ship components, seawater valves, and piping systems. The chemical and petrochemical sectors utilize them for tanks, heat exchangers, and pump components that come into contact with corrosive substances. In the oil and gas industry, they are essential for offshore platforms and refineries, where environments laden with H₂S and salt are prevalent. Additionally, Monel 400 channels are used in aerospace, power generation, and defense industries, where strength, durability, and resistance to corrosion are vital.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
