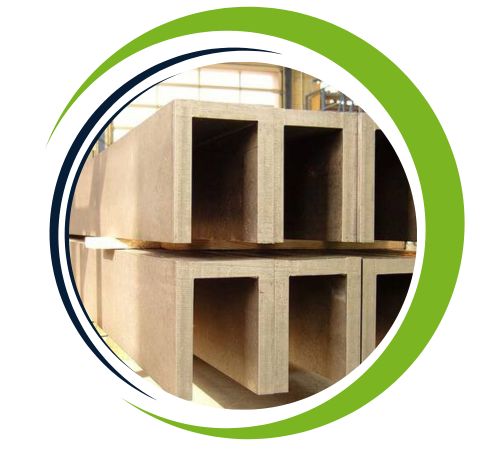

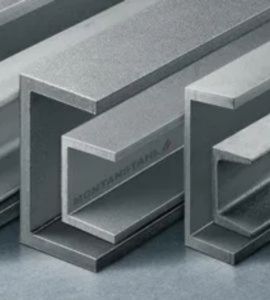

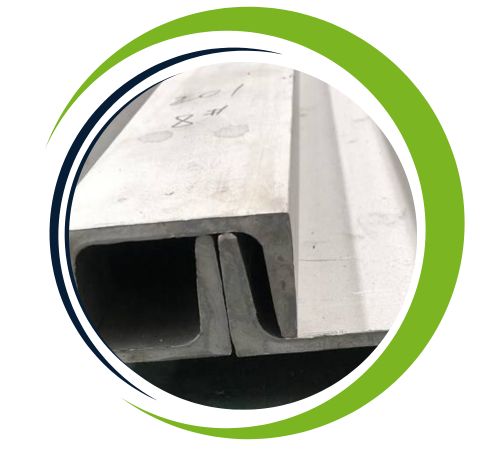

Nial Sheets and Plates is a well-respected manufacturer and supplier of Incoloy 825 Channels, proudly based in Houston, USA. We specialize in high-performance nickel-iron-chromium alloy products that are designed to offer exceptional corrosion resistance, especially in tough chemical and marine environments. Our Incoloy 825 Channels are meticulously formed to meet the structural and operational needs of various industries, including chemical processing, offshore oil and gas, pollution control, and nuclear power. With a strong focus on quality, durability, and timely delivery, Nial Sheets and Plates is dedicated to providing clients across the USA and beyond with reliable, corrosion-resistant solutions tailored for critical applications.
Incoloy 825 Channels are primarily made up of nickel (38–46%), iron (at least 22%), chromium (19.5–23.5%), along with molybdenum (2.5–3.5%), copper (1.5–3%), and titanium. This unique alloy blend delivers remarkable resistance to sulfuric and phosphoric acids, as well as pitting, crevice corrosion, and stress corrosion cracking. The typical mechanical properties include a tensile strength ranging from 550 to 700 MPa, a yield strength of about 220 to 350 MPa, and impressive ductility with elongation reaching up to 30 to 45%. Incoloy 825 maintains its structural integrity and corrosion resistance in both oxidizing and reducing environments, even at moderately elevated temperatures.
Specifications : ASTM B408 / ASME SB408

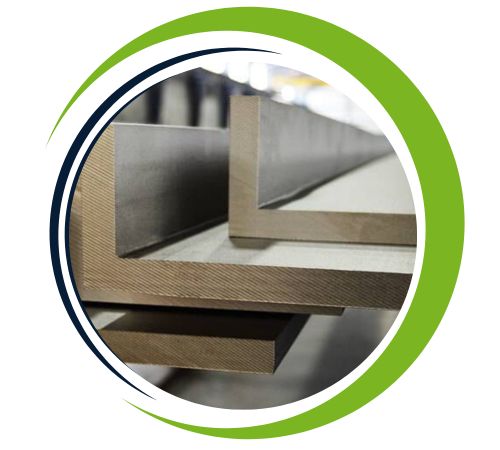

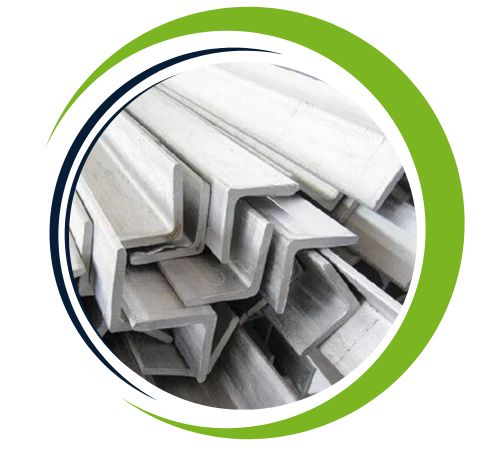

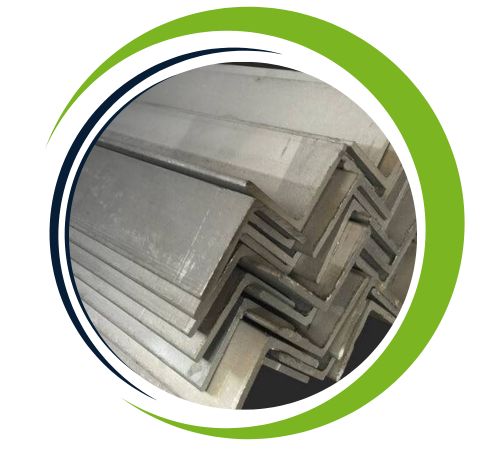

Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 825 Channels offer exceptional advantages, making them ideal for demanding industrial applications. They exhibit outstanding corrosion resistance, particularly against acids like sulfuric, phosphoric, and nitric acid, as well as pitting and crevice corrosion. With superior strength and thermal stability, these channels perform reliably in high-temperature environments. They resist stress-corrosion cracking and oxidizing atmospheres, enhancing their durability in harsh conditions. Additionally, their excellent weldability and machinability simplify fabrication processes. These properties make Incoloy 825 Channels a versatile choice for industries like chemical processing, marine engineering, and oil and gas.
Yes, we offer custom sizes for Incoloy 825 Channel to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Incoloy 825 Channels find extensive use in structural and support roles within challenging operating conditions. Common applications include chemical processing tanks and piping supports, marine exhaust systems, pollution control scrubbers, acid production systems, and components for nuclear fuel reprocessing. Their strength and corrosion resistance make them perfect for long-term service in environments that involve acids, chlorides, and high humidity. Nial Sheets and Plates provides Incoloy 825 Channels in a variety of sizes and thicknesses, all precisely manufactured to meet the performance and durability demands of rigorous industrial operations.
