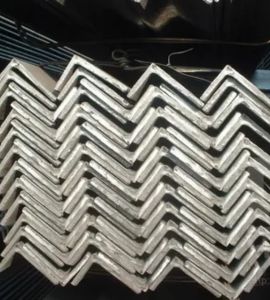

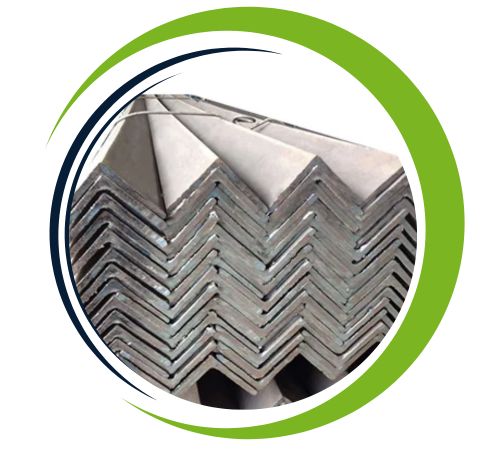

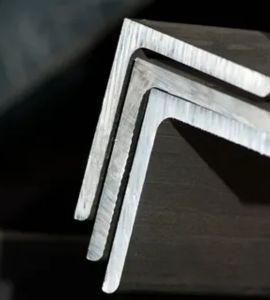

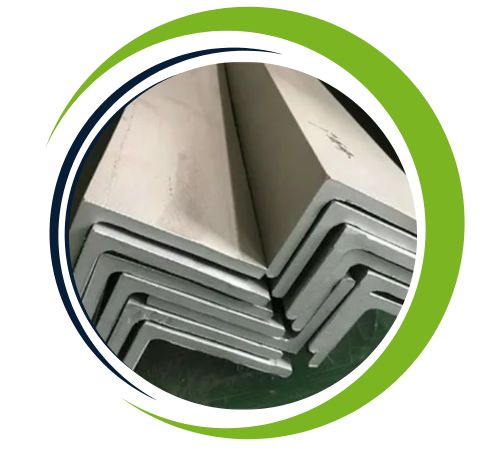

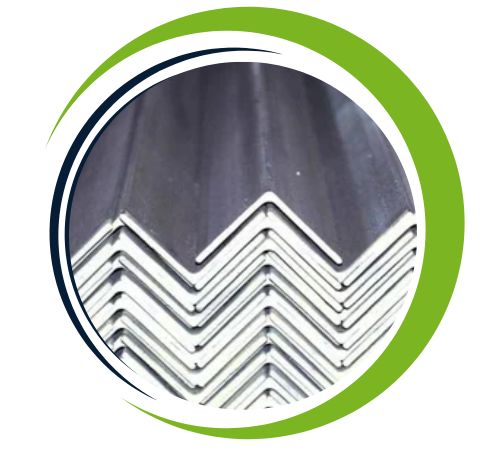

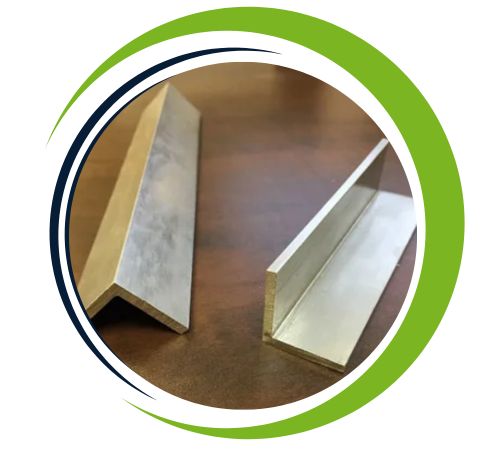

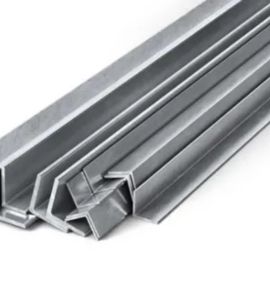

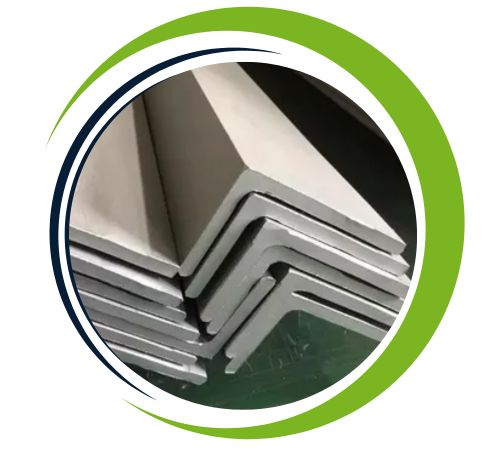

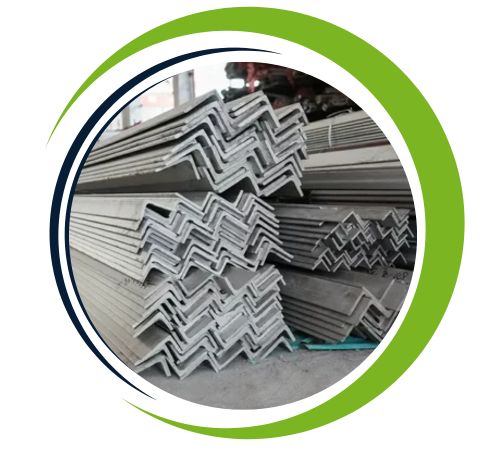

Nial Sheets and Plates is a trusted manufacturer and supplier of Incoloy Angles located in Houston, USA. They specialize in high-quality nickel-iron-chromium alloy products designed for tough, high-temperature, and corrosive environments. Incoloy Angles are celebrated for their remarkable resistance to oxidation, carburization, and various forms of high-temperature corrosion, making them perfect for industrial use. Nial offers a range of Incoloy Angles in different grades, including Incoloy 800, 800H, and 825, ensuring that each product adheres to strict mechanical and chemical standards. With a strong focus on quality and prompt delivery, Nial caters to industries such as power, petrochemical, chemical processing, and marine.
Typically, Incoloy Angles consist of nickel (30–46%), iron (the balance), and chromium (19–23%), with varying amounts of molybdenum, copper, titanium, and aluminum depending on the specific grade. This unique composition provides excellent resistance to high-temperature oxidation and corrosion, especially in acidic and marine settings. Incoloy alloys boast impressive tensile strength (up to 690 MPa), good yield strength, and exceptional thermal stability. They maintain their mechanical integrity even under thermal cycling and stress, making them suitable for long-term use in harsh conditions.
Specifications : ASTM B425 / ASME SB425
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy Angle | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy Angle | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy angle offers several key advantages, making it ideal for high-performance applications. Its excellent resistance to oxidation, corrosion, and high-temperature environments ensures long-lasting durability in harsh conditions. The alloy’s superior mechanical properties, including high tensile strength and creep resistance, make it suitable for demanding industries such as aerospace, power generation, and chemical processing. Incoloy angle also provides good weldability and formability, enabling ease of fabrication. Additionally, its resistance to sulfuric and hydrochloric acids, along with its ability to withstand extreme thermal conditions, enhances its versatility and reliability in complex engineering projects.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy Angle to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Incoloy Angles find extensive application in structural frameworks and support components that face corrosive or high-temperature environments. They are commonly used in heat exchangers, furnace hardware, pressure vessels, reactor tubes, and marine components. Additionally, these angles are frequently utilized in chemical processing equipment, nuclear facilities, and pollution control systems due to their outstanding resistance to acids, seawater, and stress corrosion cracking. The durable, formable, and weldable characteristics of Incoloy Angles make them a reliable choice for high-performance engineering and industrial infrastructure.
