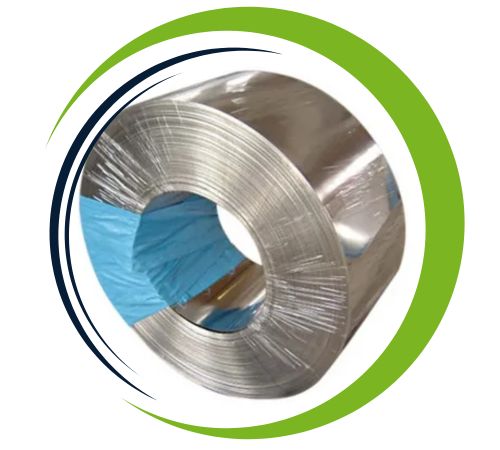

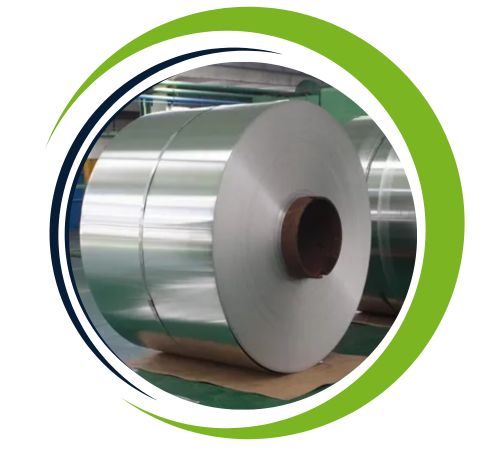

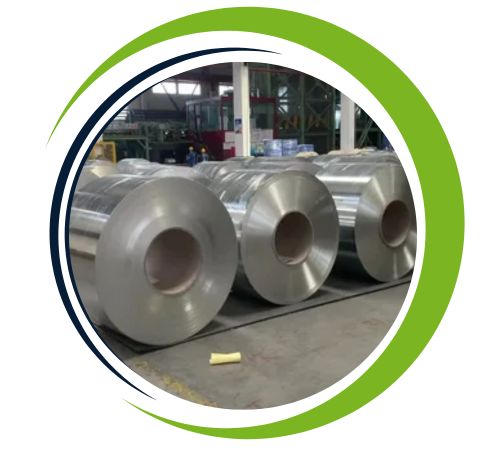

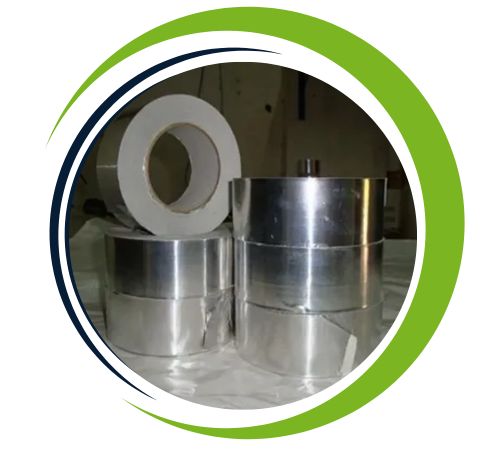

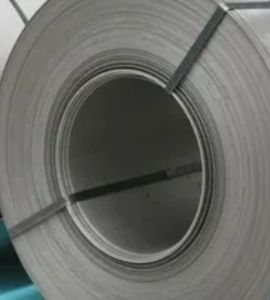

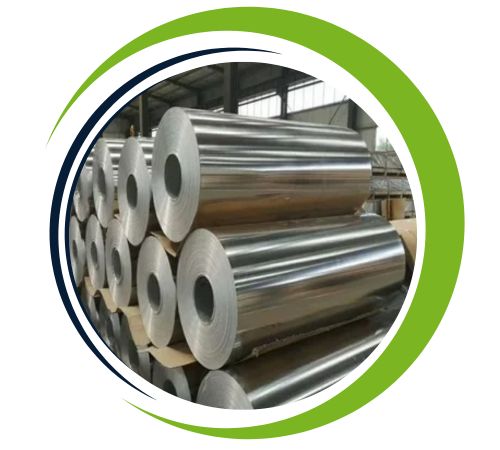

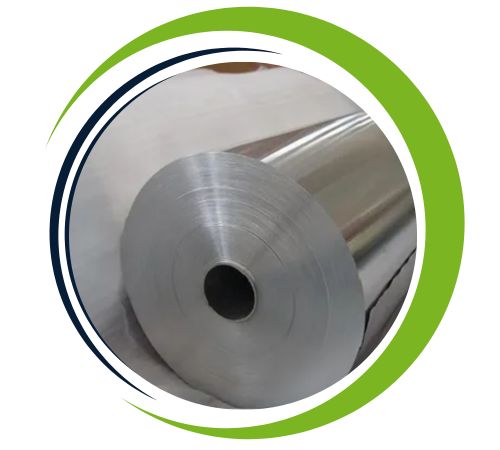

Nial Sheets and Plates stands out as a top-notch manufacturer and supplier of Incoloy 800 Foils, proudly based in Houston, USA. We specialize in delivering high-quality foil products designed for high-temperature and corrosion-resistant applications. Crafted with meticulous attention to detail and strict quality control, our Incoloy 800 Foils excel in extreme environments. We cater to various industries, including petrochemical, power generation, and heat treatment, offering foils in a range of thicknesses and widths tailored to meet your specific project requirements. Renowned for our reliability, technical know-how, and swift delivery, Nial Sheets and Plates has become a trusted name for Incoloy 800 Foils both domestically and internationally.
Incoloy 800 Foils are primarily made up of nickel (30–35%), iron (at least 39.5%), and chromium (19–23%), along with trace amounts of aluminum and titanium. This unique blend provides exceptional resistance to oxidation, carburization, and high-temperature corrosion. Incoloy 800 retains its strength and integrity in environments reaching up to 1100°F (593°C) and even higher. The foil boasts a tensile strength of around 520–690 MPa, a yield strength of 205–310 MPa, and an impressive elongation of up to 45%. These mechanical properties make it perfect for withstanding thermal and chemical exposure while maintaining ductility and formability.
Specifications : ASTM / ASME SB 409
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Grade : Incoloy Alloy 800 (UNS No. N08800) Coils & Strips
Hardness : Soft, Hard, Half Hard, Spring Hard, etc.
Finish : Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated)
Other services : Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | GOST | OR | BS | JIS | EN |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | ЭИ670 | XH32T | NA 15 | NCF 800 | X10NiCrAlTi32-20 |
| Incoloy 800 | C | Cr | Fe | S | Ni | Mn | Si | Cu |
| 0.10 max | 19.00 – 23.00 | 39.50 min | 0.015 max | 30.00 – 35.00 | 1.50 max | 1.00 max | 0.75 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 800 Foils offer exceptional advantages, making them ideal for demanding industrial applications. Their high-temperature strength ensures reliable performance in extreme environments, while excellent oxidation and carburization resistance prolongs service life. The alloy’s superior corrosion resistance in acidic and oxidizing conditions adds to its versatility. Incoloy 800 foils maintain mechanical stability under thermal cycling, reducing deformation risks. Their ease of fabrication and welding supports diverse manufacturing needs. Commonly used in heat exchangers, petrochemical equipment, and nuclear power plants, these foils are a trusted choice for durability and operational efficiency.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Incoloy 800 Foils to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Incoloy 800 Foils find extensive use in high-temperature and corrosive settings, such as furnace linings, heat exchangers, thermal insulation, electrical resistors, and reactor components. Their ability to resist oxidation and scaling during prolonged heating makes them ideal for applications in power plants, petrochemical refineries, and heat-treating equipment. Additionally, these foils are utilized in industrial gaskets, flexible hoses, and high-precision instruments. Nial Sheets and Plates offers Incoloy 800 Foils in a variety of custom sizes and finishes to meet specific operational needs, ensuring top performance and durability in even the most demanding service environments.
