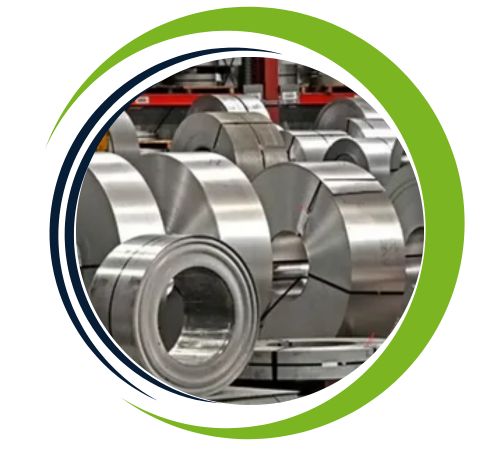

Nial Sheets and Plates stands out as a top-notch manufacturer and supplier of Incoloy 800, 800H, and 800HT Coil and Slitting Coil, right from Houston, USA. We take pride in offering high-quality nickel-iron-chromium alloy coils that are built for exceptional strength, thermal stability, and corrosion resistance, especially in high-temperature settings. Our coils are crafted using cutting-edge processing techniques, which guarantee precise slitting, accurate dimensions, and a smooth surface finish. With a variety of thicknesses and widths available, our Incoloy 800 series coils are designed to meet the rigorous demands of industries like petrochemical, power generation, and heat treatment. Nial Sheets and Plates is committed to delivering reliable solutions on time, whether across the United States or in global markets.
The Incoloy 800/800H/800HT Coil and Slitting Coil are made up of nickel (30–35%), chromium (19–23%), and iron (the balance), with carefully controlled amounts of aluminum, titanium, and carbon. The Incoloy 800H and 800HT versions are specially modified to enhance creep and stress rupture strength at high temperatures, thanks to their increased carbon content and optimized levels of Al+Ti. These coils boast impressive tensile strength ranging from 500–750 MPa, yield strength between 200–350 MPa, and remarkable ductility. Their resistance to oxidation, carburization, and sulfidation ensures they perform reliably even under harsh thermal and chemical conditions.
| Specification | ASTM B409 / ASME SB409 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER’S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4959 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Steel Coil | Size (mm) | Weight per Coil (Kg) | Size(mm) | Weight per Coil (Kg) |
|---|---|---|---|---|
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 2.0 | 136.0 | 3000 x 1500 x 5.0 | 191.0 |
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 3.0 | 204.0 | 4000 x 2000 x 5.0 | 340.0 |
| Incoloy 800/800H/800HT Coil | 2500 x 1250 x 4.0 | 106.0 | 2500 x 1250 x 6.0 | 159.0 |
| Incoloy 800/800H/800HT Coil | 3000 x 1500 x 4.0 | 153.0 | 3000 x 1500 x 6.0 | 230.0 |
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 4.0 | 272.0 | 4000 x 2000 x 6.0 | 408.0 |
| Incoloy 800/800H/800HT Coil | 2500 x 1250 x 5.0 | 133.0 |
Incoloy 800, 800H and 800HT coils and offer many advantages, such as exceptional resistance to oxidation, carburization and high temperature corrosion, making them ideal for harsh environments Their high nickel content ensures high thermal stability and efficiency , while the chromium content gives it better resistance to oxidation Incoloy 800H and The 800HTs also have enhanced creep and fracture strength due to high carbon and titanium content. These alloys exhibit excellent weldability, excellent long-term performance and durability, making them ideal for use in applications such as power generation, chemical processing and heat treatment
Incoloy 800/800H/800HT Coil and Slitting Coil are extensively utilized in industries that demand high-temperature corrosion resistance and mechanical strength. You’ll find them in applications like heat exchangers, furnace components, petrochemical piping, superheaters, reheaters, and power plant boilers. Their ability to endure prolonged thermal exposure makes them ideal for reactors, pressure vessels, and other critical systems. Nial Sheets and Plates offers these coils in customized sizes and finishes, ensuring they deliver high performance and durability in the toughest industrial environments.
