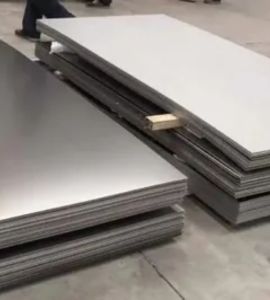

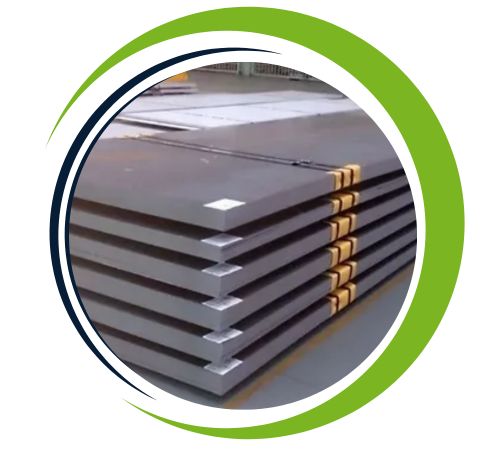

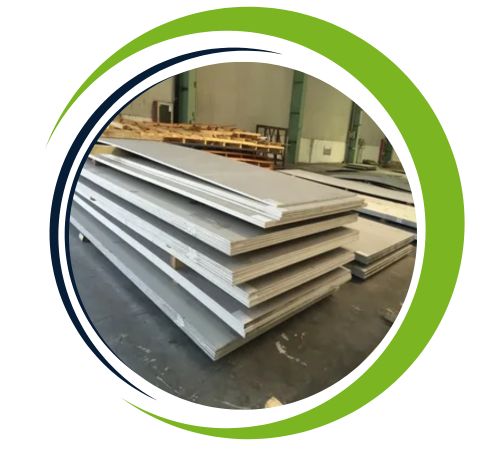

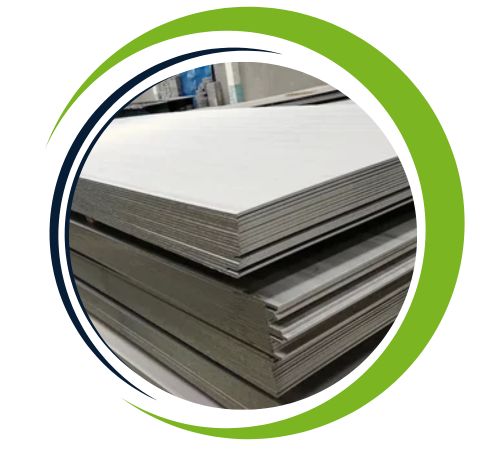

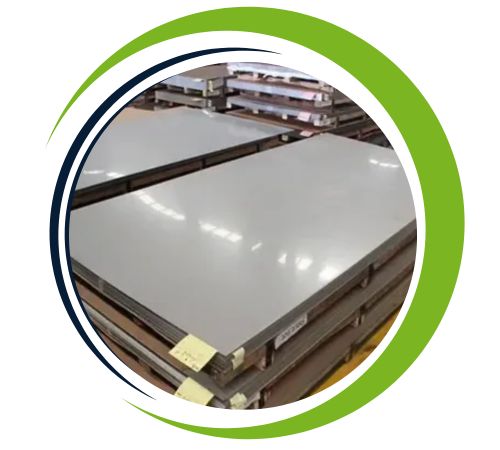

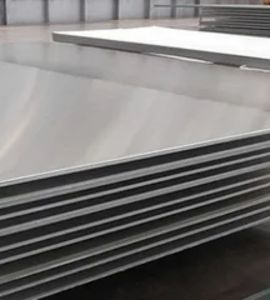

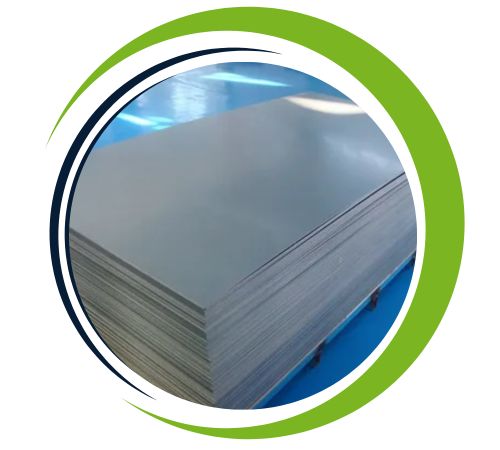

Nial Sheets and Plates is your go-to source for top-notch Invar 36 Sheets and Plates right here in Houston, USA. We cater to industries that need precise control over thermal expansion and outstanding dimensional stability. Our Invar 36 Sheets and Plates are crafted from high-quality raw materials and cutting-edge processing techniques, ensuring that you get consistent quality and performance every time. Thanks to their unique low coefficient of thermal expansion, these sheets and plates are perfect for applications that require tight dimensional tolerances. We pride ourselves on customer satisfaction, offering timely deliveries and customized solutions to meet your specific project needs.
So, what exactly is Invar 36? It’s a nickel-iron alloy that contains about 36% nickel and the rest is iron, along with trace amounts of carbon, manganese, and silicon. This special blend gives it a very low coefficient of thermal expansion, excellent dimensional stability, and impressive toughness. With a tensile strength ranging from 490 to 620 MPa, a yield strength of around 240 MPa, and an elongation of about 35%, Invar 36 is perfect for precision applications where minimizing thermal expansion is crucial.
| Standards : | ASTM F1684 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |

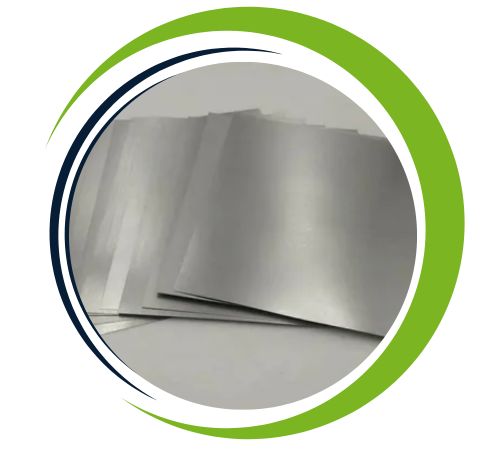

| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Invar 36 | 1.3912 | K93600 | K93603 |
| Grade | C | Mn | Si | S | Co | Fe | Mo | Al |
| Invar 36 | .008 max | .30 max | .15 max | .001 max | .35 max | 63.0 max | .02 max | .03 max |
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Invar 36 | KSI (MPa) 63 / (430) Max | KSI (MPa)-38 / (260) Max | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Invar 36 Sheets and Plates offer several key advantages, primarily their extremely low coefficient of thermal expansion, which ensures minimal dimensional changes under temperature variations. This makes them ideal for precision applications where stability is critical, such as in aerospace, instrumentation, and metrology. Additionally, Invar 36 provides excellent dimensional stability, good machinability, and superior resistance to thermal cycling. It also has high fatigue strength and excellent weldability. These properties make Invar 36 sheets and plates a preferred choice in industries requiring high accuracy and durability under varying thermal conditions.
Yes, we offer custom sizes for Invar 36 Sheets and Plates to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Invar 36 Sheets and Plates find their place in various industries that demand exact dimensional control across different temperatures. You’ll typically see them in aerospace tooling, cryogenic components, precision instruments, scientific equipment, and composite mold tooling. They play a vital role in manufacturing parts for clocks, seismic gauges, laser systems, and radio and electronic devices where thermal movement needs to be kept to a minimum. Plus, Invar 36 is a favorite in the oil and gas industry for LNG storage and handling equipment. Its reliable performance in temperature-sensitive environments makes it a trusted choice for critical engineering applications.
