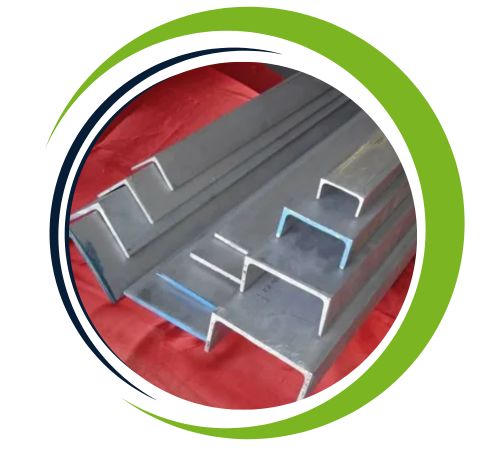

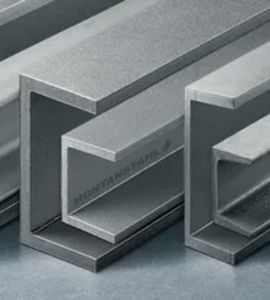

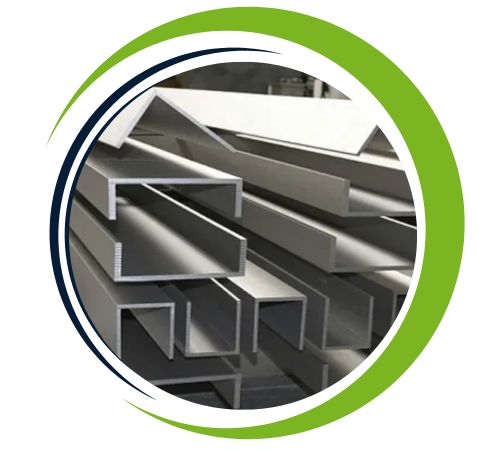

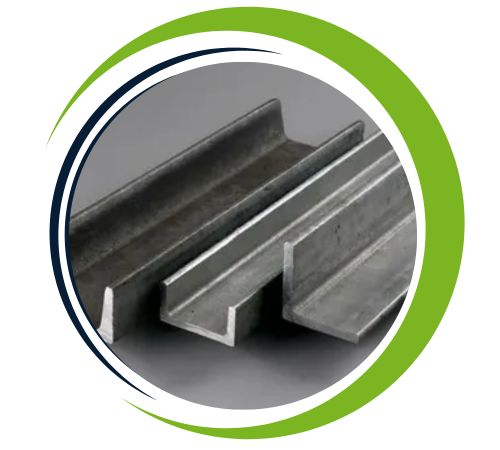

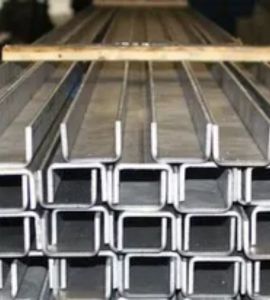

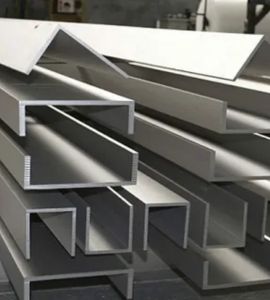

Nial Sheets and Plates is a trusted manufacturer and supplier of Inconel 625 Channels based in Houston, USA. They specialize in providing top-notch structural components designed for high-temperature, high-pressure, and corrosive environments. Inconel 625 is a nickel-chromium-molybdenum alloy celebrated for its remarkable strength, fatigue resistance, and exceptional corrosion resistance across a variety of aggressive media. Nial offers Inconel 625 Channels in a range of dimensions and custom specifications, ensuring high performance and precision for industries like aerospace, marine, chemical processing, and offshore engineering.
These Inconel 625 Channels are made up of about 58% nickel, 20–23% chromium, 8–10% molybdenum, and 3.15–4.15% niobium, along with trace amounts of iron, cobalt, and other elements. The alloy boasts a tensile strength of around 827 MPa, a yield strength of 414 MPa, and excellent ductility and creep resistance. It maintains its mechanical integrity in temperatures from cryogenic levels all the way up to 1000°C, while also resisting oxidation, pitting, and stress-corrosion cracking caused by chlorides.
Specifications : ASTM B446 / ASME SB446
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 625 channels offer several advantages, making them ideal for demanding applications. Their exceptional resistance to oxidation, corrosion, and high temperatures ensures long-lasting durability in extreme environments. The alloy’s high tensile strength, fatigue resistance, and excellent weldability make it suitable for aerospace, chemical, and marine industries. Inconel 625 also exhibits superior resistance to stress corrosion cracking and fatigue at elevated temperatures, allowing it to perform reliably in harsh conditions. Its versatility, strength, and resistance to various corrosive media ensure longevity and reduced maintenance costs in critical applications.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 625 Channels (kilogram/meter) | Inconel 625 Channels Sizes (all Dimensions in milimeter) | Approx Weight Inconel 625 Channels (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 625 Channel to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Inconel 625 Channels find extensive use in marine structures, chemical processing systems, heat exchangers, offshore oil rigs, and aerospace engine components. They function as supports, frames, guides, and brackets in applications that require superior mechanical stability and corrosion protection. Their ability to withstand seawater, acidic environments, and thermal cycling makes them perfect for coastal and deep-sea applications, as well as high-temperature furnace fixtures and nuclear power systems. With Inconel 625 Channels, you can expect a long service life, reduced maintenance, and dependable performance even in the most extreme operating conditions.
