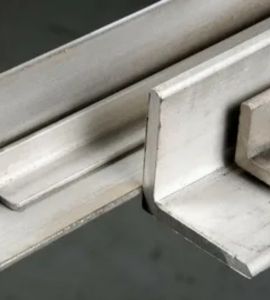

Nial Sheets and Plates is a reputable manufacturer and supplier of Inconel 600 Angles, proudly based in Houston, USA. We focus on delivering top-notch nickel-chromium-iron alloy products that are built to perform exceptionally well in extreme temperatures and harsh, corrosive environments. Our Inconel 600 Angles are meticulously crafted for structural and support applications across various industries, including aerospace, chemical processing, marine, and heat treatment. Renowned for their outstanding mechanical strength, resistance to oxidation, and dimensional stability, our products meet international standards and are reliably delivered to clients both in the USA and around the globe.
The composition of Inconel 600 Angles includes about 72% nickel, 14–17% chromium, and 6–10% iron, along with small amounts of manganese, silicon, and copper. This unique blend offers remarkable resistance to oxidation, carburization, and chloride-ion stress corrosion cracking. Inconel 600 boasts impressive mechanical properties, with a tensile strength of around 655 MPa, a yield strength of approximately 310 MPa, and an elongation of about 40%. These angles maintain their strength and structural integrity even at high temperatures, making them perfect for both high-temperature and corrosive service conditions.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Element | Ni | C | Mn | Cu | S | Si | Cr | Fe |
| Inconel 600 | 72.0 min | 0.15 max | 1.0 max | 0.5 max | 0.015 max | 0.5 max | 14.0 – 17.0 | 6.0 – 10.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 Angle offers several advantages, including excellent resistance to oxidation and corrosion, particularly in high-temperature environments. Its ability to withstand extreme temperatures up to 2,000°F (1,093°C) makes it ideal for applications in industries such as aerospace, chemical processing, and power generation. The alloy exhibits high strength and durability, maintaining its mechanical properties even under stress. Additionally, Inconel 600 is highly resistant to sulfur compounds and chloride stress corrosion cracking, ensuring long-term performance and reliability. These qualities make it a preferred material for demanding and harsh environments.
Yes, we offer custom sizes for Inconel 600 Angle to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Inconel 600 Angles find their place in a variety of demanding applications, such as heat exchangers, furnace components, chemical process vessels, nuclear steam generator tubing supports, and marine hardware. Their corrosion resistance in different acidic and alkaline environments makes them ideal for food processing, chemical handling, and pollution control equipment. Additionally, Inconel 600 Angles are excellent for structural framing in high-temperature settings. Nial Sheets and Plates offers Inconel 600 Angles in a range of sizes and custom specifications, ensuring durability and performance where strength and resistance are essential.
