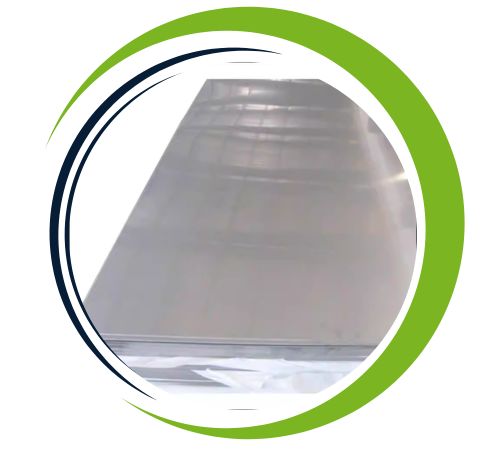

Nial Sheets and Plates stands out as a top-notch manufacturer and supplier of Haynes 230 Sheets and Plates, right out of Houston, USA. We take pride in our high-performance nickel-chromium-tungsten-molybdenum alloy products, crafted for exceptional high-temperature strength, oxidation resistance, and thermal stability. Our Haynes 230 Sheets and Plates are specifically designed to thrive in some of the toughest environments, including aerospace, gas turbines, industrial furnaces, and chemical processing. Built to meet rigorous industry standards, these sheets and plates are celebrated for their durability, precise dimensions, and excellent weldability. Nial Sheets and Plates caters to both local and global markets, ensuring prompt delivery and customized material solutions.
Haynes 230 is a solid-solution-strengthened alloy made up of about 57% nickel, 22% chromium, 14% tungsten, and 2% molybdenum, with a touch of cobalt and iron. It boasts impressive oxidation resistance up to 1149°C (2100°F) and retains remarkable mechanical strength even at high temperatures. Its mechanical properties include a tensile strength ranging from 850 to 1000 MPa, a yield strength of around 400 to 500 MPa, and good ductility with elongation exceeding 40%. This alloy also excels in creep resistance, thermal fatigue performance, and outstanding fabricability for welding and forming processes.
| Specification : | AMS 5878 |
| Standard : | AMS, AMS, API |
| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Haynes 230 (UNS N06230) |
| Weight% | C | Mn | Si | P | S | Cr | Co | Fe | Al | Ti | B | Cu | La | W | Mo | Ni |
| Haynes 230 | 0.05-0.15 | 0.30-1.0 | 0.25-0.75 | 0.03 | 0.015 | 20.0-24.0 | 5.0 | 3.0 | 0.20-0.50 | 0.10 | 0.015 | 0.50 | 0.005-0.05 | 13.0-15.0 | 1.0-3.0 | Rem |
| Material | Test Temp °F | Ultimate Tensile Strength | 0.2 % Yield Strength | Elongation in % | Hardness HB |
| Haynes Alloy 230 Extruded Bar Solution Treated (AMS 5891) | RT | 758 Mpa 110 ksi | 310 Mpa 45 ksi | 35 | 241 max |
| STANDARD | Material No | UNS | Alloy |
| Haynes 230 | – | R30605 | 230 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Haynes 230 sheets and plates offer exceptional high temperature strength, outstanding oxidation resistance up to 2100°F (1150°C), and excellent carburizing resistance, making them ideal for demanding applications They exhibit creep resistance exhibiting excellent and long-term thermal stability, ensuring durability in extreme environments. These materials are very versatile and are used in gas turbines, heat exchangers, and chemical plants. Their excellent formability and weldability contribute to ease of manufacture. Additionally, the Haynes 230 withstands extreme heat cycles, making it reliable for applications requiring durability and operating at variable temperatures.
Haynes 230 Sheets and Plates find their place in high-temperature structural and thermal processing components. Common applications include combustion liners, transition ducts, gas turbine hot sections, furnace retorts, muffles, catalyst support grids, and heat-treating fixtures. They’re also a great fit for the nuclear and chemical industries, where both thermal and corrosion resistance are essential. Nial Sheets and Plates offers Haynes 230 Sheets and Plates in a variety of thicknesses and dimensions, custom-cut and finished to meet the precise requirements of your industrial needs.
