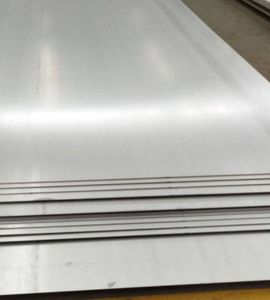

Nial Sheets and Plates, a reputable manufacturer and supplier located in Houston, USA, is dedicated to providing top-notch Duplex Steel Sheet and Plates S31803 for a variety of industrial uses. Renowned for their exceptional strength, durability, and resistance to corrosion, these sheets and plates adhere to strict international standards, serving industries such as oil & gas, petrochemical, marine, and power generation. Crafted from high-quality raw materials and engineered with precision, our Duplex Steel S31803 products deliver outstanding performance even in the toughest conditions. Nial Sheets and Plates is focused on offering dependable, tailored solutions that align with client needs, ensuring consistent quality and prompt delivery across the globe.
Duplex Steel Sheet and Plates S31803 contain about 22% chromium, 5–6% nickel, 3% molybdenum, and a balanced amount of nitrogen, providing remarkable resistance to pitting, stress corrosion, and general corrosion. They feature a dual-phase microstructure of austenite and ferrite, which results in superior mechanical strength and toughness. With a yield strength that is nearly twice that of austenitic stainless steels, these sheets and plates demonstrate exceptional fatigue resistance and impact strength, even in freezing temperatures. Their low thermal expansion, high tensile properties, and excellent weldability make Duplex Steel S31803 perfect for heavy-duty, high-pressure, and corrosive industrial settings.
| Size | : | 1/2″NB TO 4″NB IN |
| Standard | : | ASTM A182 / ASME SA182 |
| Dimensions | : | ANSI/ASME B16.11 & BS3799, etc. |
| Grade | : | UNS S31803, S32205, S2205, S32550, S32750, S32760. |
| Class | : | 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc. |
| UNS S31803 | Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe |
| min | 4.5 | 22.0 | 3.0 | – | – | – | 0.14 | – | – | – |
| max | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
| Grade | S31803 |
| Density (g/cm 3) | 7.805 |
| Density (lb/in 3) | 0.285 |
| Melting Point (°C) | 1420 – 1465 |
| Melting Point (°F) | 2588 – 2669; |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Duplex Steel Sheet and Plates S31803 offer exceptional strength, corrosion resistance, and durability, making them ideal for harsh environments. With a balanced microstructure of austenite and ferrite, they provide higher resistance to stress corrosion cracking and pitting. These plates are highly resistant to chloride environments, ensuring long-lasting performance in industries like oil and gas, chemical processing, and marine applications. Their excellent weldability and formability make them versatile for various fabrication processes, while their cost-effectiveness compared to high-alloy steels makes them a popular choice for demanding applications.
| Duplex 2205 | UNS S31803 | 1.4462 | F51 |
| Thickness (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) |
| 5 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 6 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 8 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 10 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 12 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 15 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 16 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 20 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 25 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 30 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 35 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 40 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 45 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 50 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 60 | 4000 x 2000 | ||||
| 70 | 4000 x 2000 | ||||
| 80 | 4000 x 2000 | ||||
| 90 | 4000 x 2000 | ||||
| 100 | 4000 x 2000 |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|

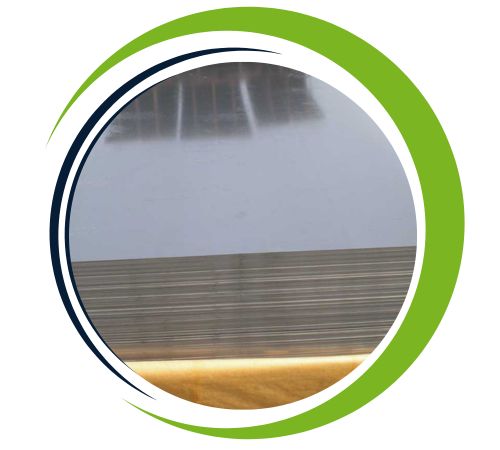

| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |

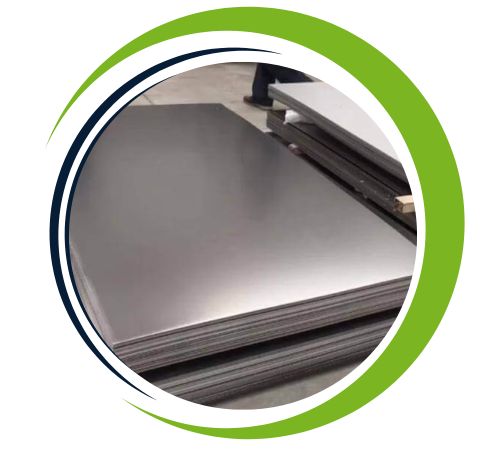

| Polished, brushed | 0.5–4.0 | max. 1524 |
Duplex Steel Sheet and Plates S31803 are commonly used in industries that demand outstanding corrosion resistance and mechanical strength. They find extensive application in offshore and onshore oil & gas pipelines, chemical processing equipment, desalination plants, and heat exchangers. Their impressive performance in chloride-rich and acidic environments makes them ideal for marine engineering, shipbuilding, and structural projects. Furthermore, they are well-suited for pressure vessels, tanks, and equipment in the pulp and paper industry due to their durability against pitting and stress corrosion cracking.
