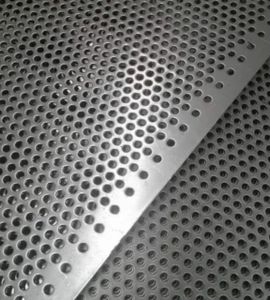

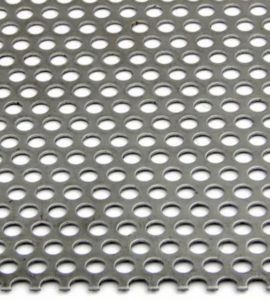

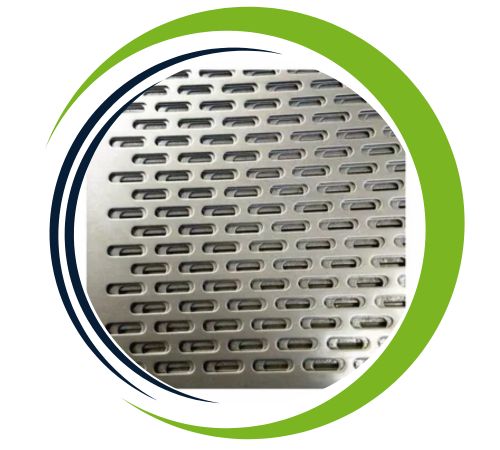

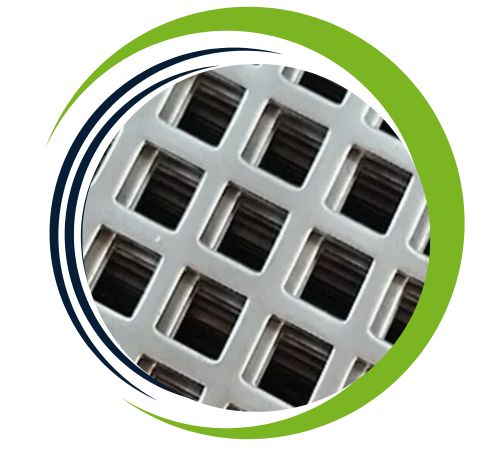

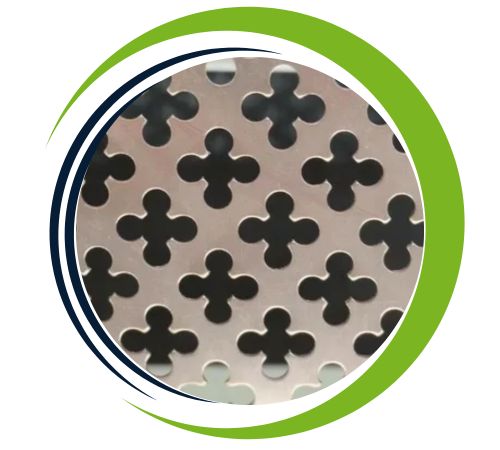

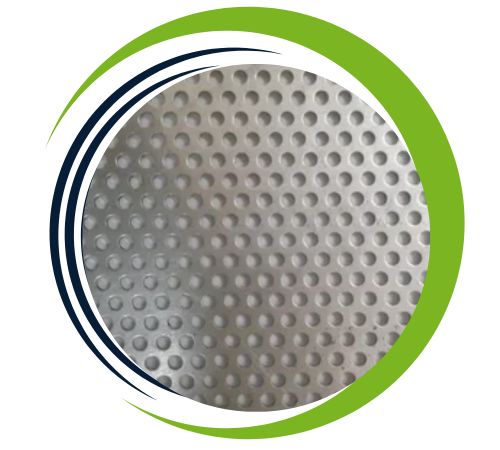

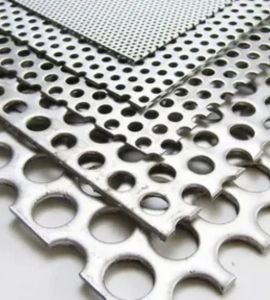

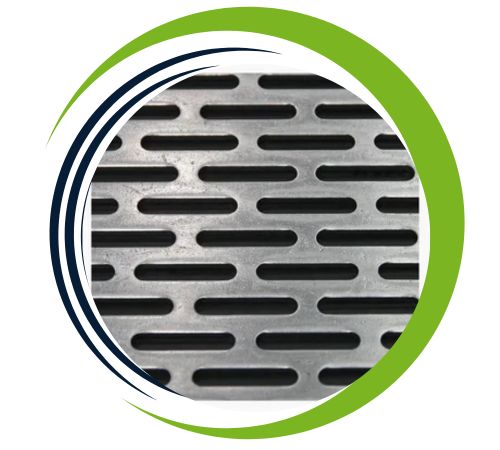

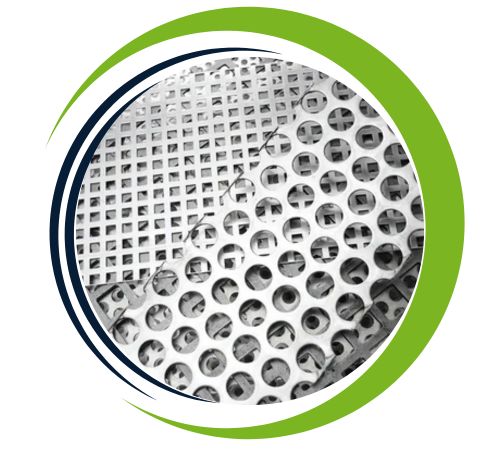

Ed Stainless is a leading producer and distributor of Stainless Steel Perforated Sheet and Plates in Houston, USA, providing solutions for ventilation, screening, filtration, and aesthetic purposes. Our perforated sheets are produced with precision–punching and laser methods and are available with different hole patterns like round, square, slotted, and custom shapes. Supplied in stainless grades such as 304, 316, and 316L, the sheets offer outstanding corrosion resistance and light structural strength. Ed Stainless offers customized sizes, thicknesses, and designs of perforation to meet architectural, industrial, and commercial specifications with quick delivery and expert advice to deliver client satisfaction.
Typically constructed from grade 304 or 316L stainless steel, 18–20% chromium, and 8–14% nickel. Grade 316L contains 2–3% molybdenum for improved corrosion resistance. The sheets provide tensile strength of 70–85 ksi and yield strength of approximately 30–45 ksi, with elongation ≥40%. The mechanical strength in combination with accurate hole alignment and spacing provides structural stability and flow control. Perforation has minimal impact on the base metal‘s properties, retaining corrosion resistance and ductility, particularly valuable in demanding usage such as filtration, screening, and architectural facades.
| Type | 1mm/ 2mm perforated stainless steel metal mesh screen sheet |
| Thinckness | 0.3-15mm |
| Widthness | 1000mm~ 2000mm or customized |
| Length | 1000mm~ 6000mm or customized |
| High Demand SS Perforated Sheet Thickness | 1, 1.25, 1.6, 2, 8 mm |
| Brand name | TISCO, JISCO, BAOSTEEL, POSCO, LIANZHONG, ETC |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Material | 201/201/304/ 304L/ 316/316ti/ 316L/ 321/309S/ 310S/ 904L stainless steel perforated sheet |
| Surface | 2B, BA, HL, Brush, NO.1, NO.4, 8K, SB, etc |
| Hole Pattern |
|
| Other Perforation Material |
|
| Perforated Sheet Application |
|
| Certificate | We accept the third inspections such as SGS-BV etc. |
| Standard sheet sizes | 1000mm*2000mm, 1250mm*2500mm, 1219mm*2438mm, 1500mm*3000mm We can produce other standard as customized |
| Certification | BV, SGS , IQI, TUV. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel Perforated Sheets and Plates offer several advantages, including excellent corrosion resistance, durability, and aesthetic appeal. They are highly versatile and used in various applications such as filtration, ventilation, and decorative design. Their ability to withstand harsh environments, including extreme temperatures and chemical exposure, makes them ideal for industrial and architectural use. Additionally, they provide strength, impact resistance, and ease of fabrication, allowing for hole patterns and size customisation. Lightweight yet strong, they offer cost-effective solutions with low maintenance requirements.
| P (mm) | W (mm) | Thick × panel size |
|---|---|---|
| 3.5 | 2 | 1 mm × 1 m × 2 m |
| 4 | 2 | 2 mm × 1 m × 2 m |
| 6 | 4 | 1 mm × 1 m × 2 m |
| 5 | 3 | 1 mm × 1 m × 2 m |
| 8 | 6 | 1 mm × 1 m × 2 m |
|
Width |
Alloy |
Hole Pattern |
Thickness |
Length |
Hole Size |
Weight Each |
Hole Center |
|---|---|---|---|---|---|---|---|
|
48″ |
304 |
Staggered |
16 ga |
48″ |
3/8″ |
24.19 # |
9/16″ |
|
48″ |
304 |
Staggered |
16 ga |
48″ |
1/2″ |
20.965 # |
11/16″ |
|
48″ |
304 |
Staggered |
16 ga |
48″ |
3/4″ |
19.76 # |
1″ |
|
48″ |
304 |
Staggered |
16 ga |
96″ |
3/8″ |
48.38 # |
9/16″ |
|
48″ |
304 |
Staggered |
16 ga |
96″ |
3/4″ |
39.51 # |
1″ |
|
48″ |
304 |
Staggered |
20 GA |
48″ |
1/8″ |
14.52 # |
3/16″ |
|
48″ |
304 |
Staggered |
20 GA |
48″ |
3/16″ |
15.97 # |
1/4″ |
|
48″ |
304 |
Staggered |
20 GA |
48″ |
1/4″ |
14.04 # |
3/8″ |
|
48″ |
304 |
Staggered |
20 GA |
96″ |
1/8″ |
29.03 # |
3/16″ |
|
48″ |
304 |
Staggered |
20 GA |
96″ |
1/4″ |
28.07 # |
3/8″ |
Stainless Steel Perforated Sheets and Plates find applications in ventilation systems, machine guards, soundproofing panels, facade cladding, and filtration units. Industries like pharmaceuticals, food processing, HVAC, and architecture depend on perforated stainless for its strength and cleanliness. In interior design, it is utilized in decorative panels, partition walls, and ceiling tiles. It serves for industrial applications as screening, grating, and drainage systems. Its strength and versatility make it applicable for both functional and aesthetic purposes. Ed Stainless provides totally customizable perforated sheet solutions that fit your industry and project requirements.
