Nial Sheets and Plates, Houston, USA, is a well-established producer and distributor of high-quality metal products with precise engineering and a focus on quality. Among its star products is the Stainless Steel 13-8 PH Circle, a high-grade alloy circle engineered for rigorous industrial uses. With innovation and customer satisfaction given priority, Nial Sheets and Plates supply a global clientele with products that conform to international quality standards. Having a state-of-the-art manufacturing facility and quality control systems in place, it is possible for them to provide high-quality solutions to the critical sectors of aerospace, medical, marine, and petrochemical.
The Stainless Steel 13-8 PH Circle is a precipitation-hardening martensitic alloy made up of approximately 13% Chromium, 8% Nickel, 2% Molybdenum, and limited amounts of Aluminum. It possesses high mechanical strength, with tensile strength up to 2050 MPa in the H1025 condition and yield strength of approximately 1850 MPa. It has excellent toughness, good ductility, and high corrosion resistance, even in hostile environments. The material can also be heat-treated to different strengths, and it is thus very versatile and trustworthy for precision-oriented applications that need both strength and toughness.
| Specifications | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

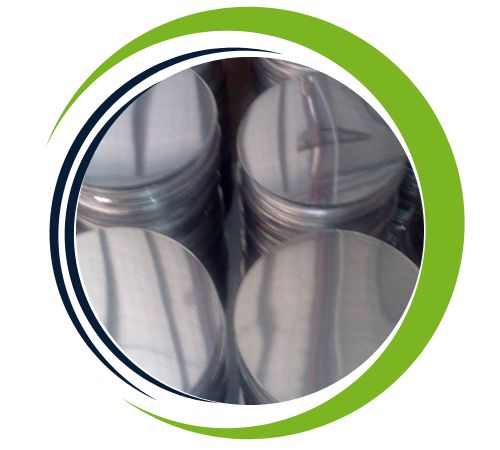

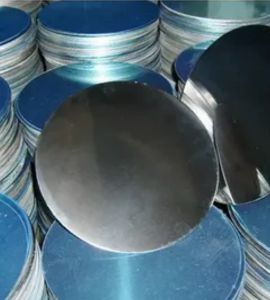

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles. |
| Cr 12.25 – 13.23% | Ni 7.50 – 8.50% | Mo 2.00 – 2.50% | Al 0.90 – 1.35% | N 0.010% | |||||
| Mn 0.10% | Si 0.10% | C 0.05% | P 0.010% | S 0.008% |
| Tensile (UTS)N/mm² | 0.2% YieldN/mm² | Elongation(50.8mm) %) | HardnessHRc | Reductionof Area |
| 1965 | 1896 | 2 | 57 | 10 |
| Alloy | UNS Number | SAE Number |
| 13-8 PH | UNS S13800 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 13-8 PH Circle provides exceptional strength, corrosion resistance and toughness, making it ideal for aerospace, marine, and high-stress applications Its precipitation hardening properties ensure superior mechanical performance and dimensional stability. The alloy’s excellent resistance to stress corrosion cracking and oxidation makes it durable in harsh environments. Its mechanical and weldability allows versatile design, while the uniformity of the material ensures reliable performance in critical applications. With excellent strength coupled with fatigue resistance, stainless steel 13-8 pH spheres are a cost-effective robust option for complex industrial and architectural applications.
The Stainless Steel 13-8 PH Circle is extensively used in high-strength industries that also need very good corrosion resistance and long-term durability. It is very widely used in aerospace for components of turbine engines, fittings, and structural assemblies. In medicine, it is best suited for implants and surgical instruments because of its biocompatibility. Its use in nuclear reactors, marine components, and car safety systems speaks to its capability to work under adverse conditions. The alloy also has a preference in petrochemical facilities and precision engineering for critical parts where toughness, hardness, and resistance to environmental degradation are critical.
