Phosphorous Bronze Circle

Aaron Sheets & Plates, Houston, USA is a well-known manufacturer and supplier of excellent quality steel and alloy products. With its expertise in a wide variety of sheets, plates, and circles, the company is known for its precision technology, eco-friendly source material, and industry-standard manufacturing techniques. Among their high-quality products is the Phosphorous Bronze Circle, a high-strength alloy component cherished for its excellent strength, corrosion resistance, and hardness. Suitable for electrical, marine, and industrial uses, Aaron Sheets & Plates still provides reliable, cost-efficient, and custom-designed solutions to a worldwide market.

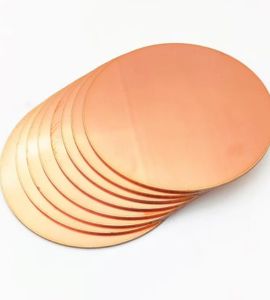

Phosphorous Bronze Circle

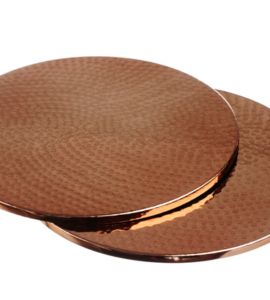

Phosphorous Aluminium Bronze

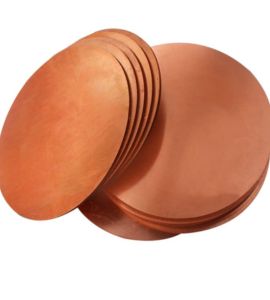

Phosphorous Industrial Circles

Phosphorous Bronze Circle Dealer in Los Angeles, Circle Phosphorous Bronze Supplier in Los Angeles, Phosphorous Bronze CR Circles Manufacturer in Texas, Phosphorous Bronze HR Circles Stockist, Phosphorous Bronze CR Circles Price List in California, Phosphorous Bronze Hot Rolled Circles Supplier in United Kingdom, Phosphorous Bronze Cold Rolled Circle in Houston , Phosphorous Bronze Hot Rolled Circle Supplier in USA

The Phosphorous Bronze Circle is an alloy consisting mainly of phosphorus (0.01–0.35%) and tin (0.5–5%), with copper as the base material. The alloying elements give the material high tensile strength between 450 and 1100 MPa, strong fatigue resistance, and high corrosion resistance, especially in seawater environments. The alloy has a Brinell hardness of 150–250 HB, and is also elastic, machinable, and heat stable. These factors render it ideal for high-performance applications where mechanical strength, wear, and electrical conductivity under stress are required.

Phosphorous Bronze Circle Specification

Material	Phosphor Bronze Circle
Grade	Alloy 510, Alloy 521, Alloy 519, Alloy 544
Standard	ASTM B103
Size	Thickness 0.1 mm to 50 mm; Width up to 500 mm; Length up to 2000 mm
Surface	Rolling surface, Chemical cleaned, Grinding

Chemical Properties of Phosphorous Bronze Circle

Alloy	UNS Designation	Tin	Phosphorus	Iron, max	Lead, max	Zinc, max	Copper
510	C51000	4.2-5.8	.030-.35	0.1	0.05	0.3	remainder

Mechanical Properties of Phosphorous Bronze Circle

ASTM Specification	Temper	Tensile Strength	Rockwell B Scale	Superficial (30-T Scale)
ASTM Specification	Temper	min-max psi	min-max	min-max
Annealed	Annealed	43-58	12-64	24-59
H02	1/2 Hard	58-73	60-85	53-73
H04	Hard Tempered	76-91	84-93	71-78
H06	Extra Hard	88-103	89-96	74-81
H08	Spring Temper	95-110	92-98	76-82
H10	Extra Spring	100-114	94-99	77-83

Phosphorous Bronze Circle Distributor in California, Phosphorous Bronze CR Circle Supplier in United Kingdom ,Phosphorous Bronze Circle Supplier in Houston, Stockist of Phosphorous Bronze Circle in Houston , Phosphorous Bronze Circle Supplier in USA, Phosphorous Bronze Circle Price List in California, Phosphorous Bronze Supplier in Houston ,Phosphorous Bronze Circle Exporter in Los Angeles, Phosphorous Bronze Circle Exporter in USA,316L Phosphorous Bronze Cold Rolled Circle Exporter in Texas

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Phosphorous Bronze Circle Manufacturer and Exporter in Houston, USA

Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Phosphorous Bronze Circles Distributor in USA, Phosphorous Bronze Forged Circle Exporter in Houston, Phosphorous Bronze CR Circles Exporter in Houston , Phosphorous Bronze Large Diameter Circle Manufacturer in Houston, Phosphorous Bronze Plazma Cut Circle Price List in United Kingdom, Phosphorous Bronze Big Size Circle Distributor in Texas, Phosphorous Bronze Circle Cut Machined Circle Exporter in California

Phosphorous Bronze Circle offer many benefits including high strength, good corrosion resistance and increased corrosion resistance. The addition of phosphorus gives the material a stronger and more durable finish, making it ideal for heavy applications. It also exhibits excellent electrical conductivity and mechanical efficiency. Phosphor copper is fatigue resistant and has excellent formability, making it suitable for use in marine applications, electrical components and automotive parts In addition to being excellently resistant to oxidation, it ensures durability and durability longer in extreme conditions. These features make it a reliable choice for a variety of industrial applications.

Types of Phosphorous Bronze Circle

Phosphorous Bronze Circles in Los Angeles, Phosphorous Bronze HR Circle Stockist in Texas, Phosphorous Bronze Circles Supplier in Houston, Phosphorous Bronze Industrial Circles Exporter in Houston , Phosphorous Bronze HR Circles Price List in United Kingdom, 316L Stainless Steel Cut Machined Circle in Texas, Phosphorous Bronze CR Circles Supplier in Los Angeles, Phosphorous Bronze Circles Distributor in USA, Phosphorous Bronze Circles Supplier in United Kingdom

Are Custom Sizes Available for Phosphorous Bronze Circle?

Yes, we offer custom sizes for Phosphorous Bronze Circle to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Phosphorous Bronze Circle

Phosphorous Bronze Discs are used industry-wide where resistance to corrosion, electrical conductivity, and mechanical strength are necessary. In the electrical industry, they find application in connectors, contacts, and switches because of their consistent conductivity and resistance to fatigue. In the marine field, they find application in items subject to seawater exposure, like valves, pump components, and fasteners. They also find application in motor vehicle components, bearings, bushings, springs, washers, and seal rings because of their toughness and wear resistance. Their capability to function well under both soft and hard contact conditions renders them irreplaceable in high-stress mechanical systems.
