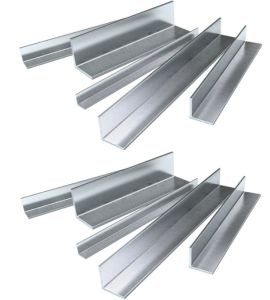

Aluminium 1100 Angle

Nial Sheets and Plates, Houston, USA is a reliable name in aluminium manufacturing and supplying high-quality aluminium products. Among our flagship products are Aluminium 1100 Angles, which are renowned for their light weight, corrosion resistance, and excellent workability. These angles are developed to satisfy the high demands of construction, automotive, aerospace, and electrical engineering industries. With an unwavering dedication to accuracy in engineering, punctual delivery, and customer satisfaction, Nial Sheets and Plates provides customized solutions that exceed international quality standards, providing durability and reliability to specific industrial and commercial applications.

Aluminium 1100 Angle Dealer in Los Angeles, Aluminium 1100 Architectural Angles Supplier in Los Angeles, Aluminium 1100 Angle in Texas, Aluminium 1100 Equal Leg Angle Size Chart, Aluminium 1100 Angle Price in California, Aluminium 1100 Angle Supplier in United Kingdom, Aluminium 1100 Angle Stockist in Houston , Aluminium 1100 Unequal Leg Angles Exporter in USA, Aluminium 1100 Angle Stockist in Houston, Aluminium 1100 Angle Supplier in Houston

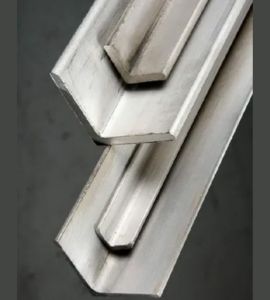

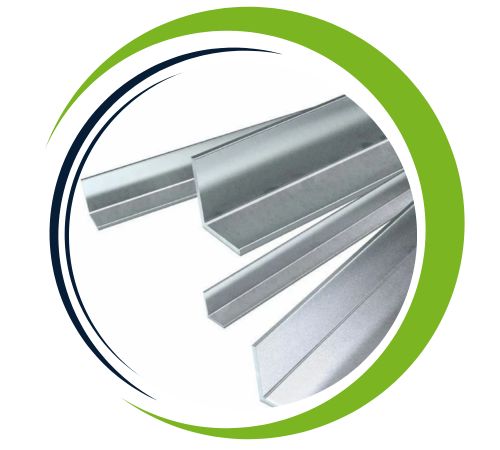

Aluminium 1100 Architectural Angles

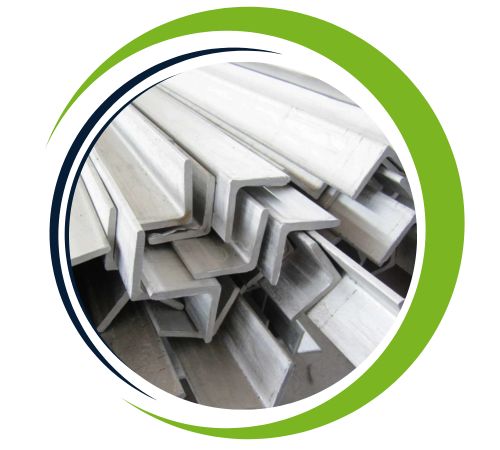

Aluminium 1100 Hot Rolled Angle

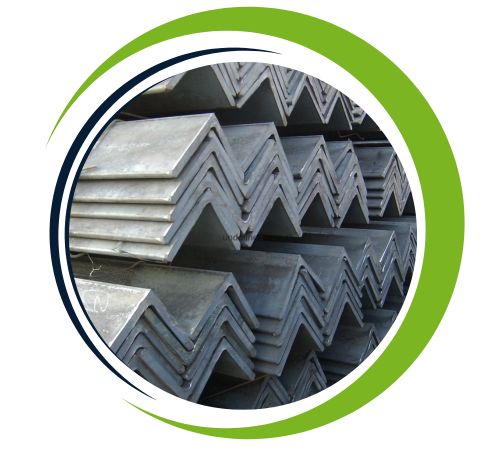

Aluminium 1100 Unequal Leg Angles

Aluminium 1100 Angles are made of 99% pure aluminium and contain minor constituents of iron, silicon, copper, and zinc to improve mechanical properties. This alloy has a high corrosion resistance, high thermal conductivity, and easy formability. Important mechanical properties are tensile strength of 110–145 MPa, yield strength of 95 MPa, and elongation of 5–15%. It also has a Brinell hardness of 35 HB and a density of 2.71 g/cm³. Its resistance to heat treatment is countered by excellent weldability and machinability, for which reasons it is a top choice material for light structures, toxic–free environments, and electrical uses.

Aluminium 1100 Angle Specification

Standards : ASTM B221 / B211 ASME SB221 / SB211, EN573, EN485, AMS 4003, AMS 4102

Temper : O,H12,H14,H16,H18,H19,H22,H24

Standard : ASTM, ASME, AMS, GB/T, JIS

Thickness : 50 mm to 6000 mm Long

Size : 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm

Length : 1 To 6 Meters, Custom Cut Length

Finish : Mill, Customer specific finish

Surface : Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc

Aluminium 1100 Angles Chemical Composition

Alloy	Fe	Si	Mg	Mn	Cu	Zn	Ti	Cr	Others	AI
1100 (min)	0.35	0.25	0.01	0.01	0.05	0.01	0.020	Trace	0.05 (each)	99.60%
1100 (max)	0.50	0.35	0.03	0.05	0.20	0.05	0.030	Trace	0.15 (total)	remainder

Aluminium 1100 Angles Mechanical Properties

Alloy	Temper	UTS(Mpa)		% Elongation
Alloy	Temper	Min	Max	0.5 mm -0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
1100	O	75	110	20	25	29
	H12	95	130	5	6	7
	H14	110	145	3	4	5
	H16	130	165	2	3	4
	H18	150	—	2	2	3

Aluminium 1100 Angle Price in California, Aluminium 1100 Hot Rolled Angle Weight Chart, Aluminium 1100 Angle Bar Angle Supplier in United Kingdom, Stockist of Aluminium 1100 Angle in Houston , Aluminium 1100 Angle Supplier in USA, Aluminium 1100 HR Angles Price List in Houston, Aluminium 1100 Angle Supplier in Houston , Aluminium 1100 Hot Rolled Angle Exporter in Los Angeles, Aluminium 1100 Angle Exporter in USA, Aluminium 1100 HR Angles Exporter in Texas, Aluminium 1100 Angle in California

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium 1100 Angle Manufacturer and Exporter in Houston, USA

Nial Sheets and Plates based in Houston, USA, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium 1100 Angle Distributor in USA, Aluminium 1100 Angle Supplier in Houston, Aluminium 1100 Angle Weight Chart, Aluminium 1100 Hot Rolled Angle Exporter in Houston , Aluminium 1100 Angle Manufacturer in Los Angeles, Aluminium 1100 Angle Price List in United Kingdom, Aluminium 1100 Angle Sizes in mm, Aluminium 1100 Hot Rolled Angle Distributor in Texas, Aluminium 1100 Angle in California

Aluminium 1100 Angles offer numerous advantages due to their high-purity composition. They are lightweight, making them easy to handle and ideal for weight-sensitive applications. Exceptional corrosion resistance ensures durability in harsh environments, including marine and chemical industries. Their excellent thermal and electrical conductivity makes them suitable for heat exchangers and electrical applications. Aluminium 1100 Angles are also highly formable, allowing for easy machining, welding, and bending without compromising strength. Their cost-effectiveness and recyclable nature contribute to sustainable usage, making them a versatile choice across various industries.

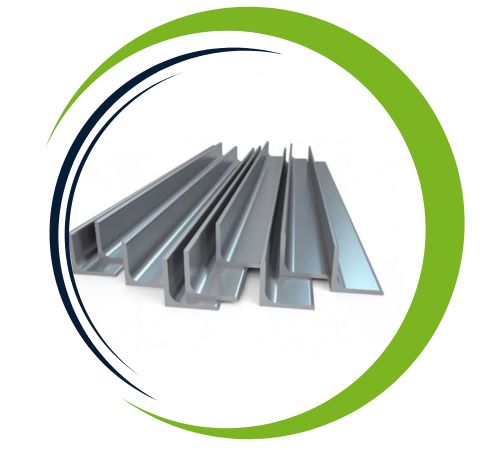

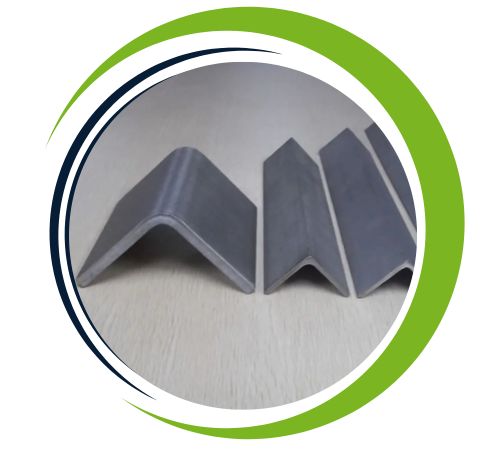

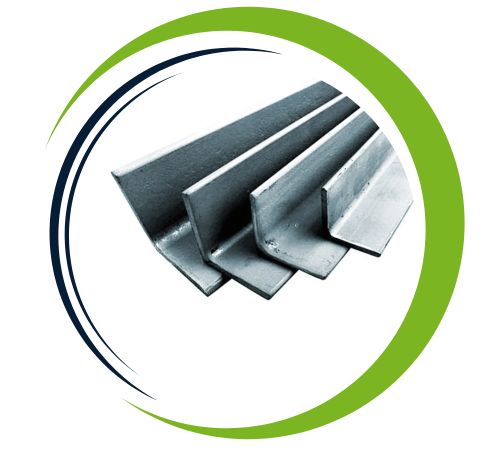

Types of Aluminium 1100 Angle

Aluminium 1100 Angle Manufacturer in Los Angeles, Aluminium 1100 Hot Rolled Angle in Texas, Aluminium 1100 Equal Leg Angle Supplier in Houston, Aluminium 1100 Angle Exporter in Houston , Aluminium 1100 HR Angle Price List in United Kingdom, Aluminium 1100 Unequal Leg Angles Distributor in Texas, Aluminium 1100 Angle Supplier in Los Angeles, Aluminium 1100 Hot Rolled Angle Distributor in USA, Aluminium 1100 Angle Sizes in mm

Are Custom Sizes Available for Aluminium 1100 Angle?

Yes, we offer custom sizes for Aluminium 1100 Angle to meet specific project needs. Our team at Nial Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Aluminium 1100 Angles Equivalent Grades

UNS	USA	Japan	France	ISO
A91100	AA1100	JIS A1100P	NF 1100	Al 99.0 Cu.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Aluminium 1100 Angle

Due to the versatility, corrosion resistance, and fabricability of Aluminium 1100 Angles, they find extensive use across many industries. In the construction industry, they are used as framing members, bracing supports, and architectural details. Their applications in bus bars and conductive assemblies in the electrical industry owe to high electrical conductivity. They aid in heat exchangers and cooling infrastructure in HVAC and thermal systems. They also occur in food processing equipment, chemical storage tanks, car panels, and signage structures. Their non-toxic nature qualifies them for food-grade and pharmaceutical uses, where durability and cleanliness are paramount.
